NSN 5120-01-594-0331 B107.15 , B107.15 TY2 , B107.600
Product Details | FLAT TIP SCREWDRIVER
5120-01-594-0331 A manual screwdriver having a single, nonremovable, flat tip blade. The blade has a flared or straight sided tip. For items having more than one blade, see SCREWDRIVER BIT SET AND HANDLE. Excludes SCREWDRIVER, JEWELER'S SWIVEL KNOB; SCREWDRIVER, RATCHET; and SCREWDRIVER, SPARK TESTING.
Part Alternates: B107.15 , B107.15 TY2 , B107.600 , B10715, B10715TY2, B107600, SHD8R, 5120-01-594-0331, 01-594-0331, 5120015940331, 015940331
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 22 APR 2011 | 01-594-0331 | 03355 ( SCREWDRIVER, FLAT TIP ) |

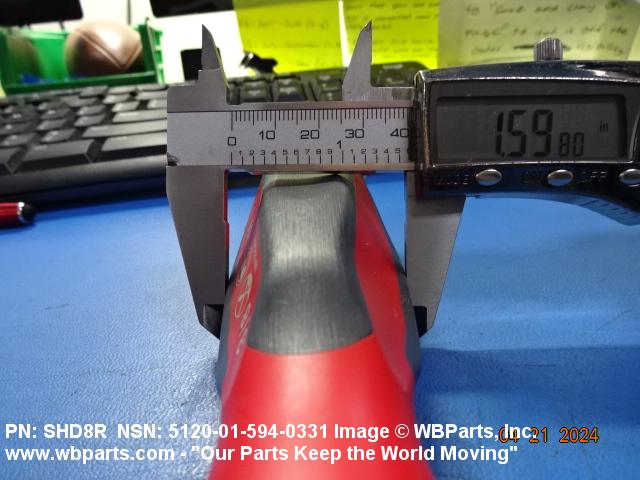

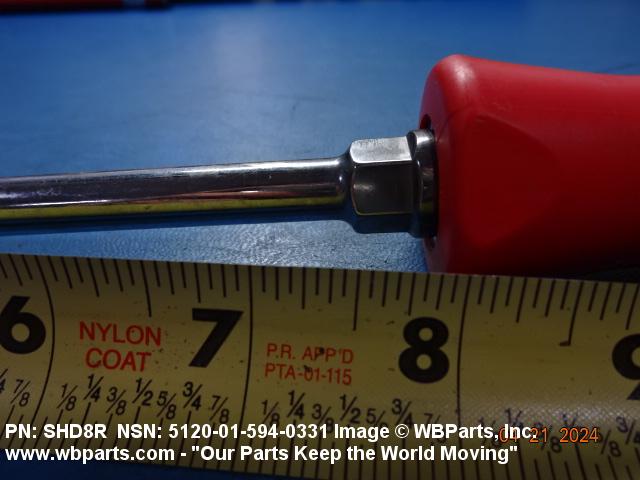

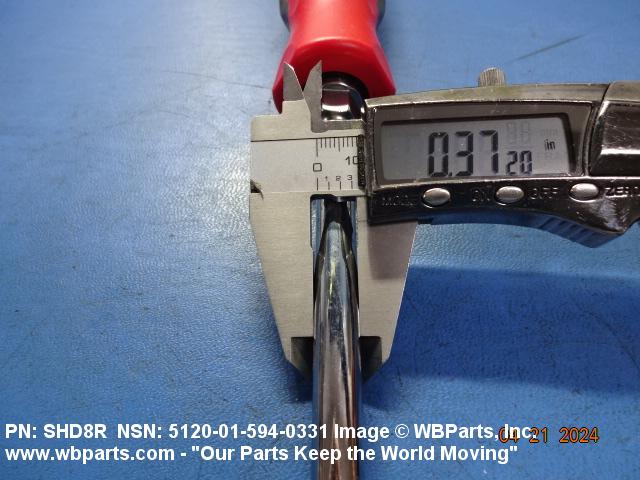

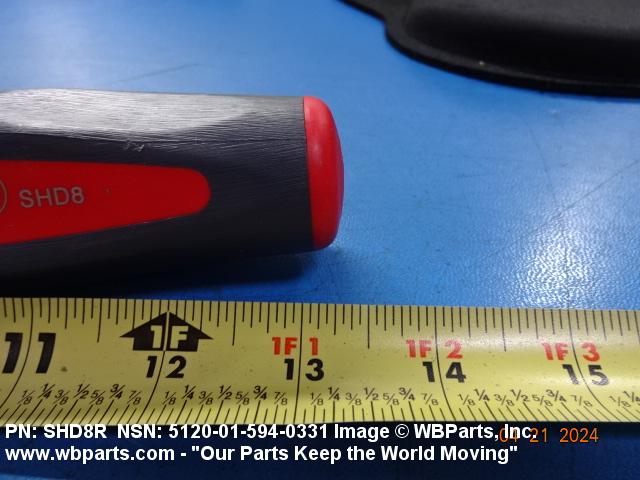

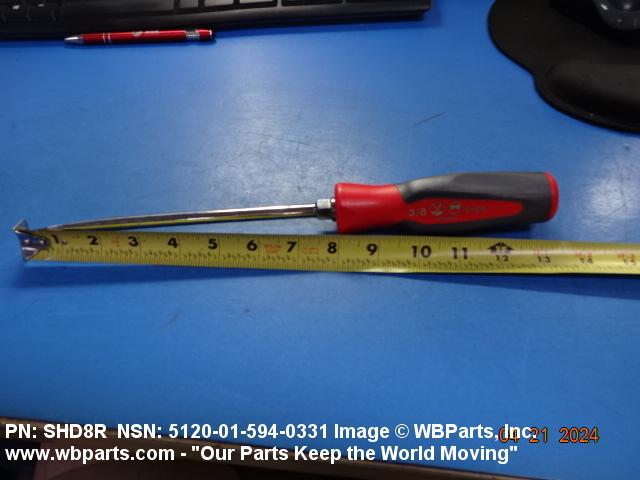

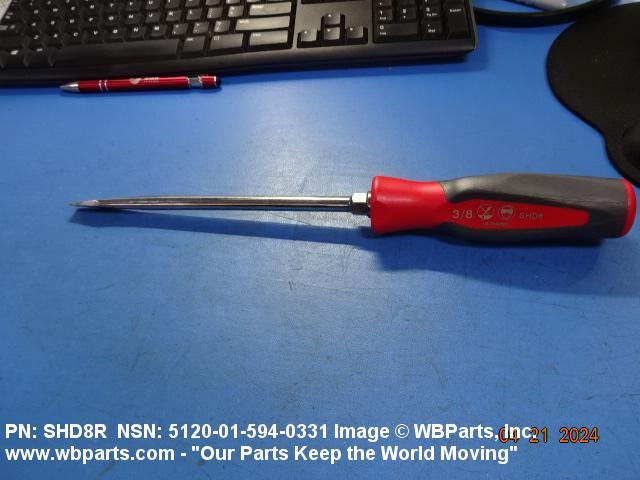

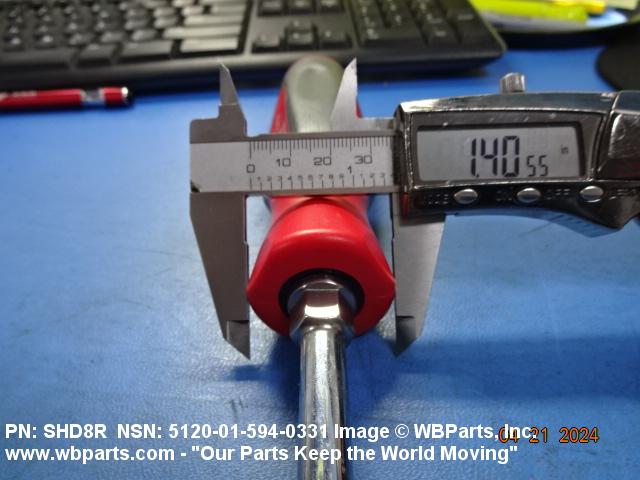

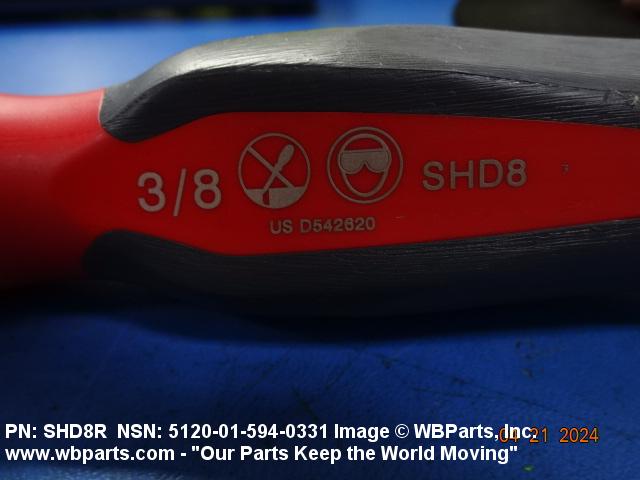

Drawings & Photos | NSN 5120-01-594-0331
Demand History | NSN 5120-01-594-0331
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| B107600 | 2025-11-310 | 1 | US |
| B107600 | 2025-08-227 | 1 | United States |
| SHD8R | 2025-01-28 | 2 | United States |
| 5120-01-594-0331 | 2024-03-76 | 1 | us |
| B10715 | 2012-05-140 | 10 | United States |
Cross Reference | NSN 5120-01-594-0331
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-01-594-0331
Technical Data | NSN 5120-01-594-0331
| Characteristic | Specifications |
|---|---|
| SPECIAL FEATURES | REPLACEABLE BLADE; HARD HANDLE |
| MATERIAL | PLASTIC HANDLE |
| BLADE LENGTH | 7.906 INCHES NOMINAL |
| TIP WIDTH | 0.375 INCHES NOMINAL |
| END THICKNESS | 0.055 INCHES NOMINAL |
| BLADE SURFACE TREATMENT | CHROMIUM |
| OVERALL LENGTH | 13.406 INCHES NOMINAL |
| MATERIAL | STEEL BLADE |
| SHANK SHAPE | ROUND |
| FEATURES PROVIDED | FLARED TIP SIDE AND BOLSTER |
Restrictions/Controls & Freight Information | NSN 5120-01-594-0331
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5120-01-594-0331
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Materiel Management Code | 0 | GSA MaterielItems cataloged by the Marine Corps and managed by the General Services Administration. |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
