NSN 5130-00-022-7010 P091617, P91617, 00-022-7010
Product Details | PNEUMATIC TOOL RIVET SET
5130-00-022-7010 A tool having a formed shank, designed for use with pneumatic riveters, holders-on, hammers, and the like, for driving and setting rivets. Excludes RIVET SET, BLANK, PNEUMATIC TOOL.
Part Alternates: P091617, P91617, 5130-00-022-7010, 00-022-7010, 5130000227010, 000227010
Hand Tools | Hand Tools, Power Driven
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1961 | 00-022-7010 | 05261 ( RIVET SET, PNEUMATIC TOOL ) |

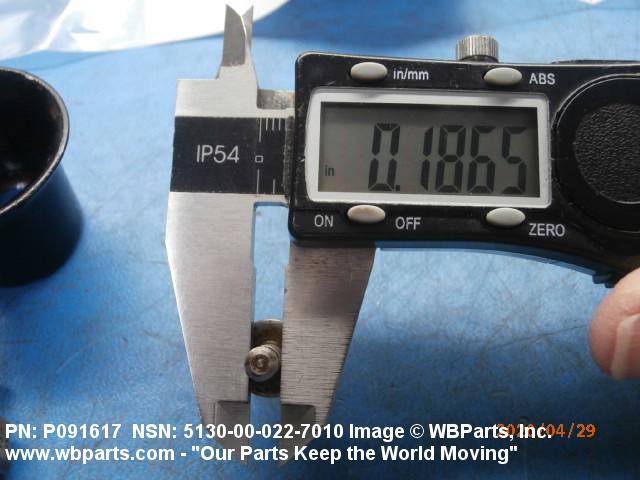

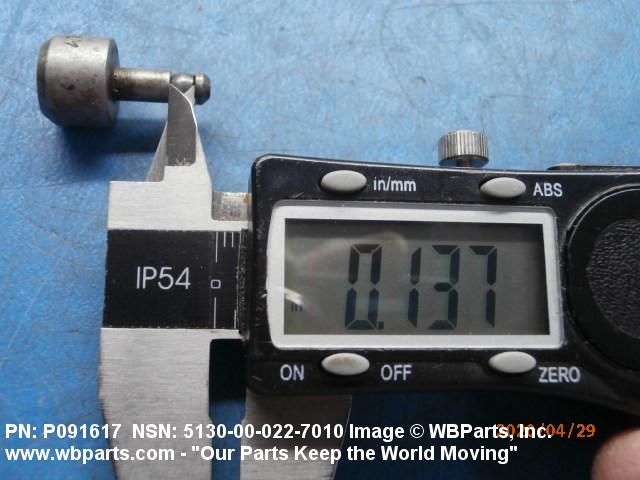

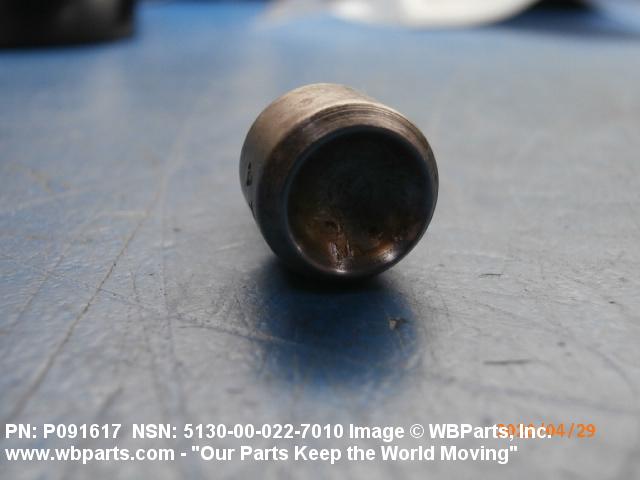

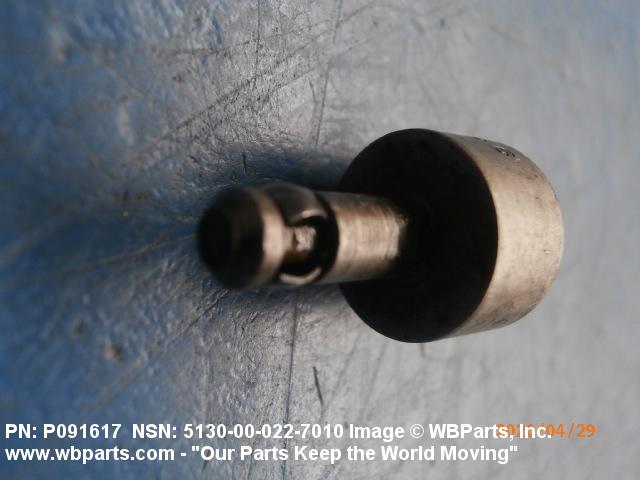

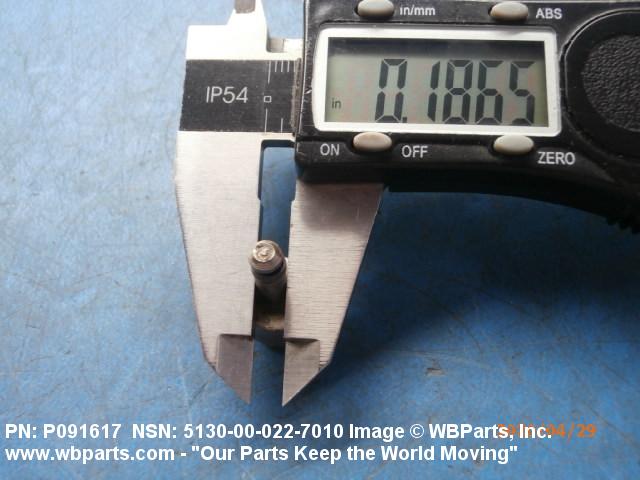

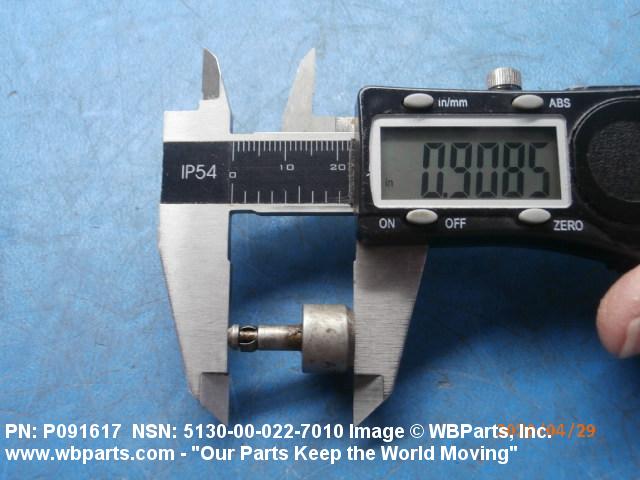

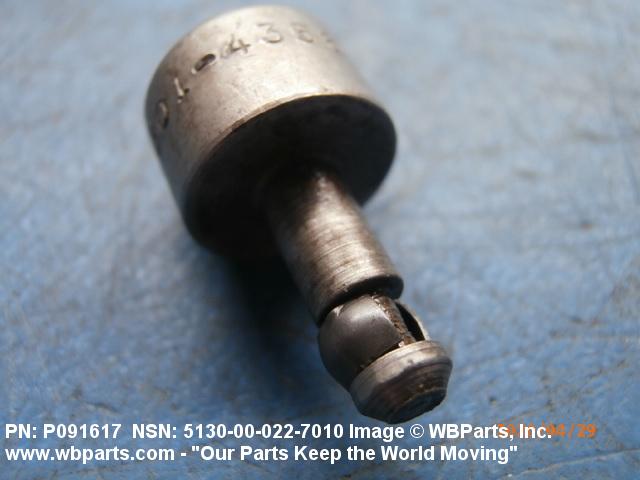

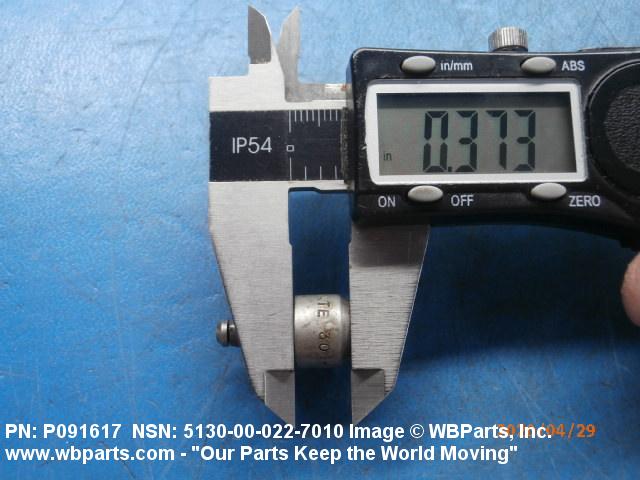

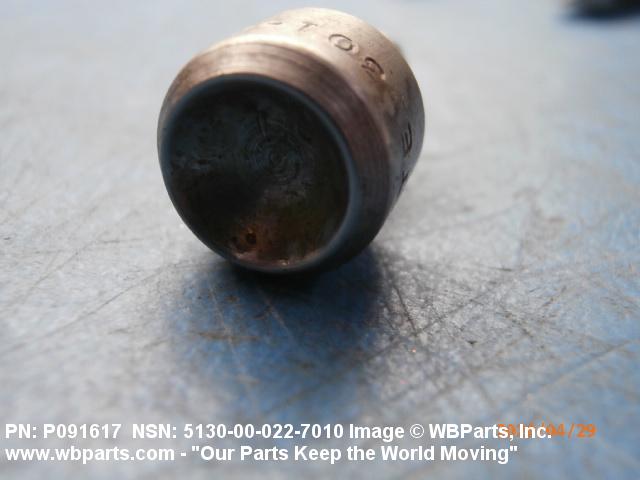

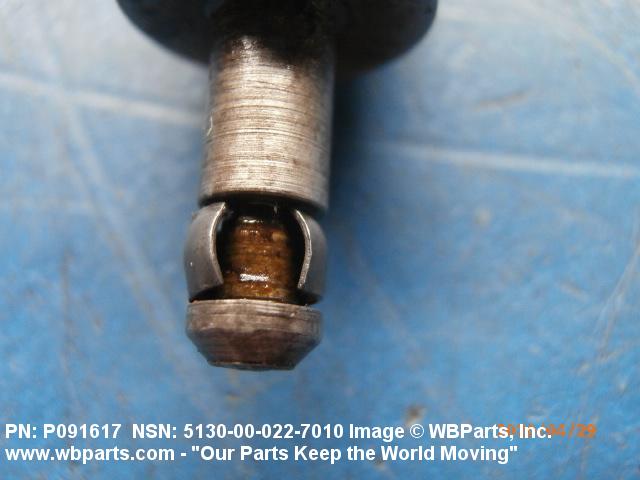

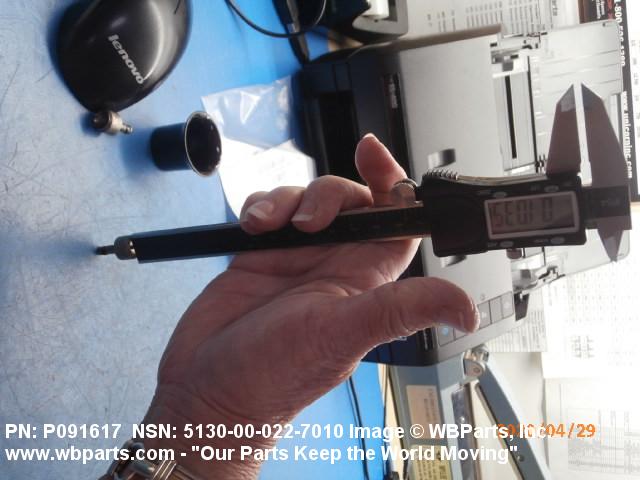

Drawings & Photos | NSN 5130-00-022-7010
Demand History | NSN 5130-00-022-7010
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| P091617 | 2023-01-03 | 2 | United States |
| 5130-00-022-7010 | 2020-03-70 | 1 | United States |
| P091617 | 2020-03-64 | 1 | United States |
| P091617 | 2018-11-318 | 6 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5130-00-022-7010
Related Products | NSN 5130-00-022-7010
Technical Data | NSN 5130-00-022-7010
| Characteristic | Specifications |
|---|---|
| SHANK STYLE | AB20 STRAIGHT ROUND-RETAINER |

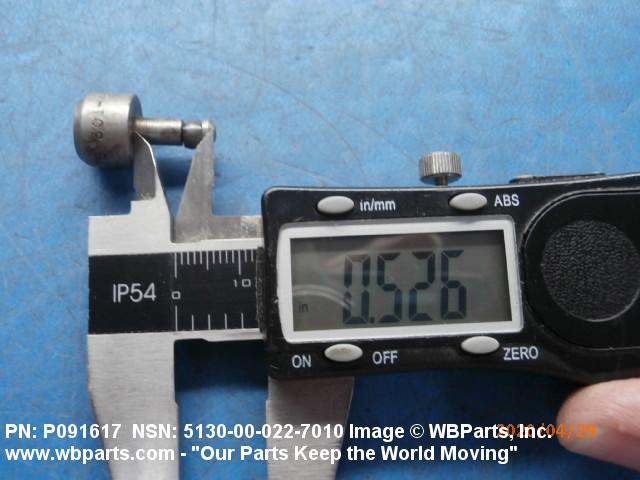

| SHANK OVERALL LENGTH | 0.500 INCHES NOMINAL |

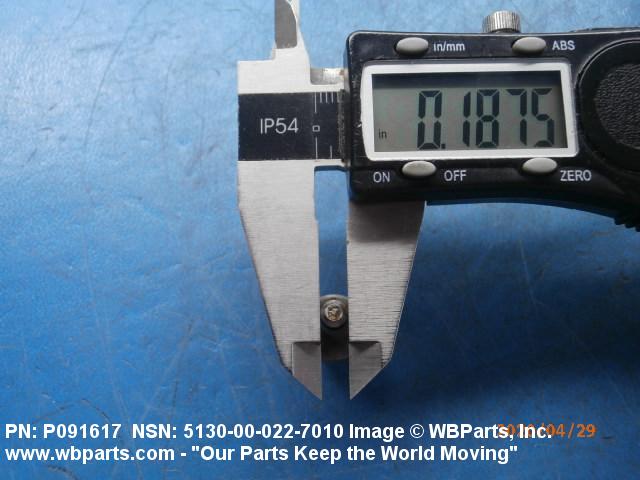

| DIAMETER | 0.187 INCHES NOMINAL |
| RETAINER GROOVE WIDTH | 0.136 INCHES NOMINAL |

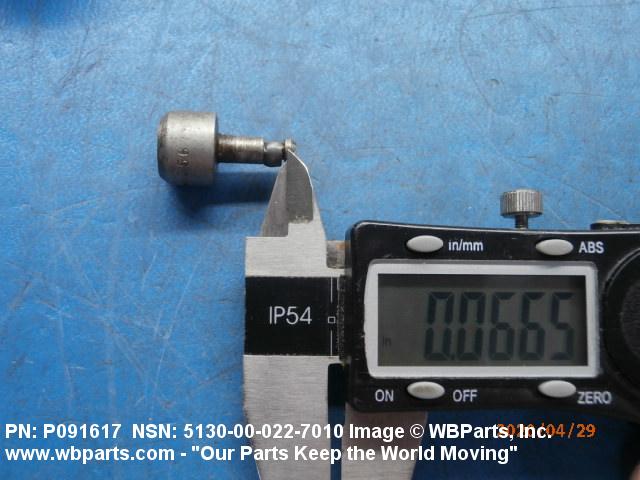

| DISTANCE BETWEEN SHANK END AND RETAINER GROOVE | 0.062 INCHES NOMINAL |
| RETAINER GROOVE DIAMETER | 0.127 INCHES NOMINAL |
| UNIT TYPE | CUPPED |
| CUPPED DESIGN | BUTTON |
| CUP DEPTH | 0.126 INCHES NOMINAL |
| RIVET SIZE FOR WHICH DESIGNED | 0.188 INCHES NOMINAL |
| BODY STYLE | BL15 SQUEEZER INSERT SHANK RETAINING |
| OVERALL LENGTH | 0.875 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5130-00-022-7010
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | M | HANDTOOLS AND SHOP EQUIPMENT |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186590 | TOOLS:ELEC HYDR PNEU/I/C ENG/PARTS |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5130-00-022-7010
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | E | General Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
G EA : Each |
