NSN 5130-00-203-6487 GGGW301, GGG-W-301, GGG-W-301 TY9CL2
Product Details | ROTARY WHEEL FIBER BRUSH
5130-00-203-6487 A disk shaped unit having a fill section of vegetable fiber, synthetic filament, horsehair, or animal bristle material extending from the perimeter of the disk perpendicular to the axis of the hub. It is used with a rotary power-operated device for polishing, buffing, and/or cleaning various surfaces. See also BRUSH, WIRE, ROTARY WHEEL.20334600024Machine Tool accessories51300024Hand Tools, Power Driven65200043Dental Instruments, Equipment, and Supplies
Part Alternates: GGGW301, GGG-W-301, GGG-W-301 TY9CL2, GGGW301TY9CL2, 5130-00-203-6487, 00-203-6487, 5130002036487, 002036487
Hand Tools | Hand Tools, Power Driven
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1963 | 00-203-6487 | 19111 ( BRUSH, FIBER, ROTARY WHEEL ) |
Drawings & Photos | NSN 5130-00-203-6487
Demand History | NSN 5130-00-203-6487
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5130-00-203-6487 | 2021-03-81 | 2 | AE |
| GGGW301 | 2019-02-39 | 1 | ET |
| GGGW301 | 2019-02-39 | 1 | ET |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5130-00-203-6487
Technical Data | NSN 5130-00-203-6487
| Characteristic | Specifications |
|---|---|

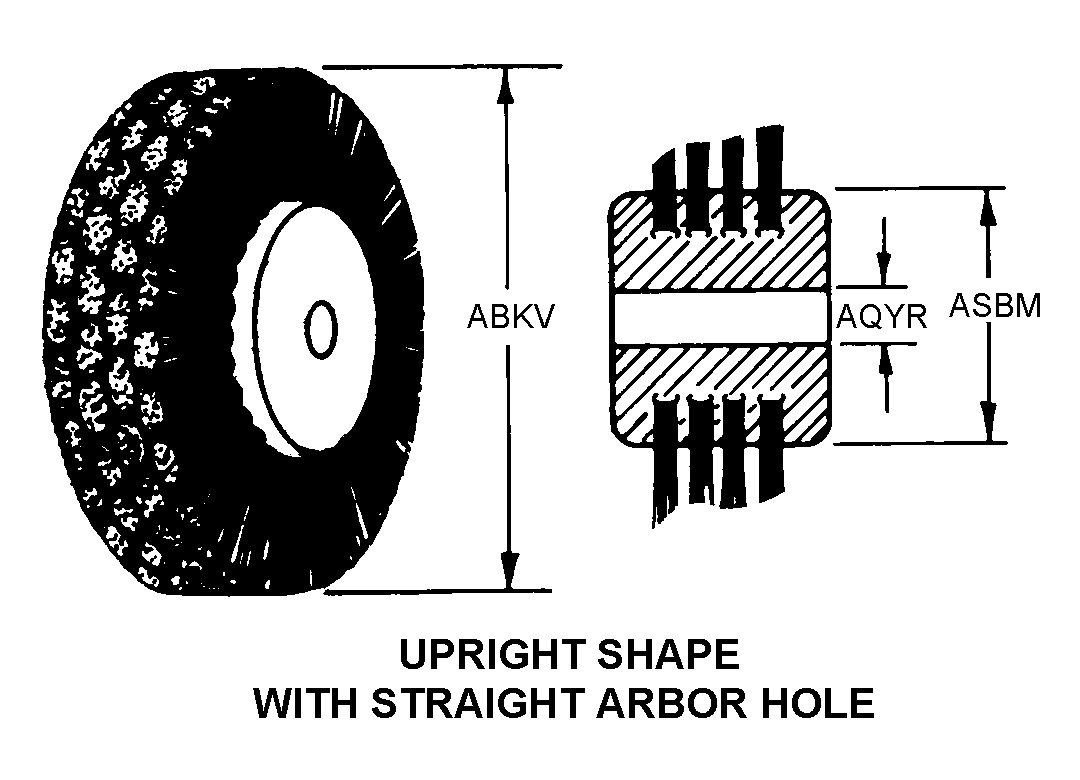

| STYLE DESIGNATOR | B3 UPRIGHT SHAPE WITH STRAIGHT ARBOR HOLE |
| OUTSIDE DIAMETER | 10.000 INCHES NOMINAL |
| ARBOR HOLE DIAMETER | 1.250 INCHES NOMINAL |
| HUB DIAMETER | ANY ACCEPTABLE |
| WOOD HUB CONSTRUCTION | SOLID |
| FILL MATERIAL | FIBER, TAMPICO |
| FILL ROW QUANTITY | 2 |
| MAXIMUM SPEED RATING IN RPM | NOT RATED |
| SPECIAL FEATURES | 1/2 IN. W THROUGH HUB |
| NONDEFINITIVE SPEC/STD DATA | 9 TYPE AND 2 CLASS |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | GGG-W-301 |
Restrictions/Controls & Freight Information | NSN 5130-00-203-6487
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
