NSN 5130-00-243-9385 GGGC330, GGG-C-330, GGG-C-330 TY20
Product Details | POWER HAMMER CHISEL
5130-00-243-9385 A cutting tool having a formed shank designed for use with HAMMER, ELECTRIC, PORTABLE or HAMMER, PNEUMATIC, PORTABLE. Excludes masonry drills and all noncutting items, such as calking, beading, fulling, butting tools, and the like.
Part Alternates: GGGC330, GGG-C-330, GGG-C-330 TY20, GGGC330TY20, 5130-00-243-9385, 00-243-9385, 5130002439385, 002439385
Hand Tools | Hand Tools, Power Driven
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1963 | 00-243-9385 | 05211 ( CHISEL, POWER HAMMER ) |
Drawings & Photos | NSN 5130-00-243-9385
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5130-00-243-9385
Technical Data | NSN 5130-00-243-9385
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |

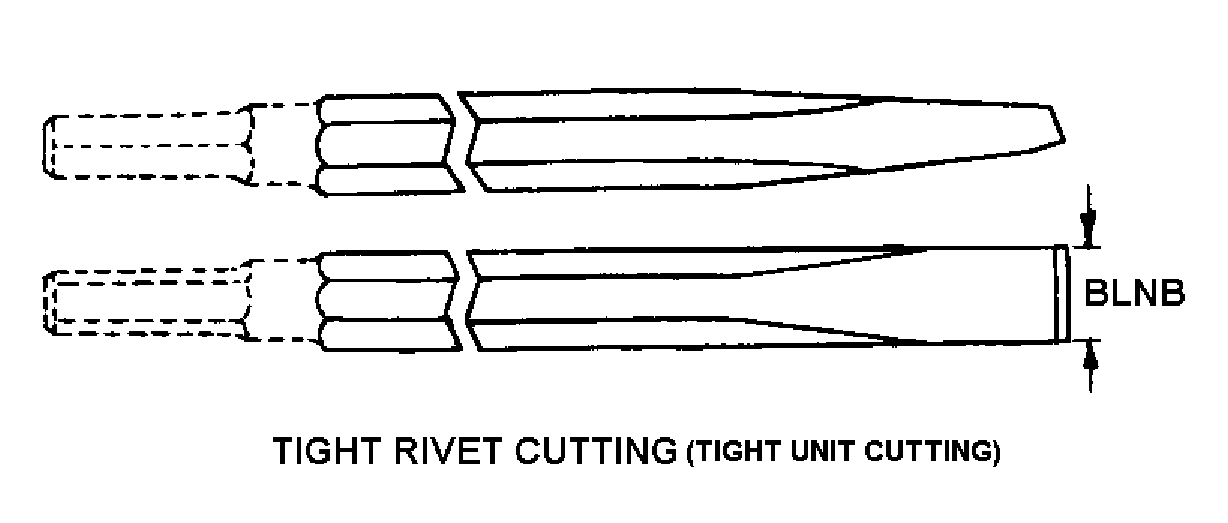

| STYLE DESIGNATOR | AA11 TIGHT RIVET CUTTING |
| CUTTING WIDTH | 0.875 INCHES NOMINAL |
| SHANK STYLE | AB1 HEXAGON |
| SHANK OVERALL LENGTH | 2.375 INCHES NOMINAL |
| FIRST SHOULDER DIAMETER | 0.680 INCHES NOMINAL |
| FLAT LENGTH | 1.750 INCHES NOMINAL |
| FIRST SHOULDER LENGTH | 0.625 INCHES NOMINAL |
| SHANK WIDTH ACROSS FLATS | 0.580 INCHES NOMINAL |
| NONDEFINITIVE SPEC/STD DATA | 20 TYPE |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | GGG-C-330 |
Restrictions/Controls & Freight Information | NSN 5130-00-243-9385
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186590 | TOOLS:ELEC HYDR PNEU/I/C ENG/PARTS |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
