NSN 5130-00-433-5698 PWA23948, 00-433-5698, 004335698
Product Details | PNEUMATIC YOKE RIVETER
5130-00-433-5698 00001015130000000
Part Alternates: PWA23948, 5130-00-433-5698, 00-433-5698, 5130004335698, 004335698
Hand Tools | Hand Tools, Power Driven
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 07 AUG 1970 | 00-433-5698 | 02535 ( RIVETER, YOKE, PNEUMATIC0 ) |
Drawings & Photos | NSN 5130-00-433-5698
Cross Reference | NSN 5130-00-433-5698
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PWA23948 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5130-00-433-5698
Related Products | NSN 5130-00-433-5698
Technical Data | NSN 5130-00-433-5698
| Characteristic | Specifications |
|---|---|

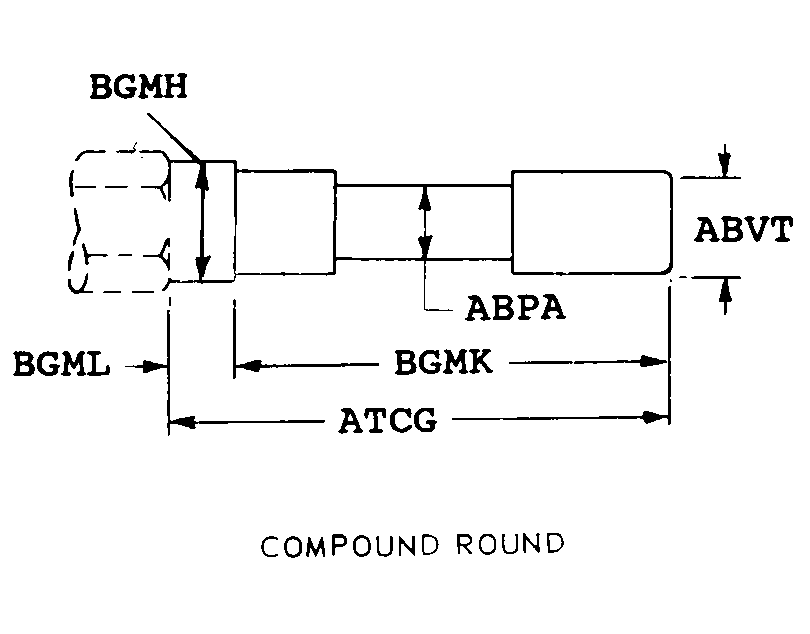

| SHANK STYLE ACCOMMODATED | AB9 COMPOUND ROUND |
| SHANK OVERALL LENGTH | 0.062 INCHES NOMINAL |
| FIRST SHOULDER DIAMETER | 0.249 INCHES NOMINAL |
| ROUND TANG LENGTH | 0.281 INCHES NOMINAL |
| FIRST SHOULDER LENGTH | 0.094 INCHES NOMINAL |
| RETAINER GROOVE DIAMETER | 0.155 INCHES NOMINAL |
| UNIT TYPE | COMPRESSION |
| AUTOMATIC RIVET SET PLUNGER RETURN | PROVIDED |
| COLD ALUMINUM ALLOY RIVET DIAMETER ACCOMMODATED | 0.125 INCHES NOMINAL |
| COLD STEEL RIVET DIAMETER ACCOMMODATED | 0.094 INCHES NOMINAL |
| YOKE TYPE | ALLIGATOR |
| YOKE REACH | 1.500 INCHES |
| YOKE GAP | 1.250 INCHES |
| ACCESSORY COMPONENTS AND QUANTITY | RIVET SET 2 |
| MANUFACTURERS CODE | 77445 |
| DESIGN CONTROL REFERENCE | PWA23948 |
Restrictions/Controls & Freight Information | NSN 5130-00-433-5698
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186590 | TOOLS:ELEC HYDR PNEU/I/C ENG/PARTS |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5130-00-433-5698
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 1R | Aeronautical, photographic, and meteorological material (consumable or expense type material) Naval Inventory Control Point, Philadelphia |
| Special Material ID | PQ | TURBO PROPENGINESTF30 P412/P412A |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | N32 | Naval Inventory Control Point Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | W | Ground Support Equipment-End Items |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
