NSN 5130-00-541-4008 00-541-4008, 005414008
Product Details | PORTABLE PNEUMATIC HAMMER
5130-00-541-4008 A compressed air driven hammer designed for impact driving of items such as inserted chisels, masonry drills, rivet sets and the like. In operation the tool is not fixed and is controlled by hand. See also BREAKER, PAVING. Excludes body and fender straightening items.
Part Alternates: 5130-00-541-4008, 00-541-4008, 5130005414008, 005414008
Hand Tools | Hand Tools, Power Driven
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1963 | 00-541-4008 | 02526 ( HAMMER, PNEUMATIC, PORTABLE ) |
Drawings & Photos | NSN 5130-00-541-4008
Cross Reference | NSN 5130-00-541-4008
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5130-00-541-4008 | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5130-00-541-4008
Technical Data | NSN 5130-00-541-4008
| Characteristic | Specifications |
|---|---|
| HANDLE TYPE | OPEN END |

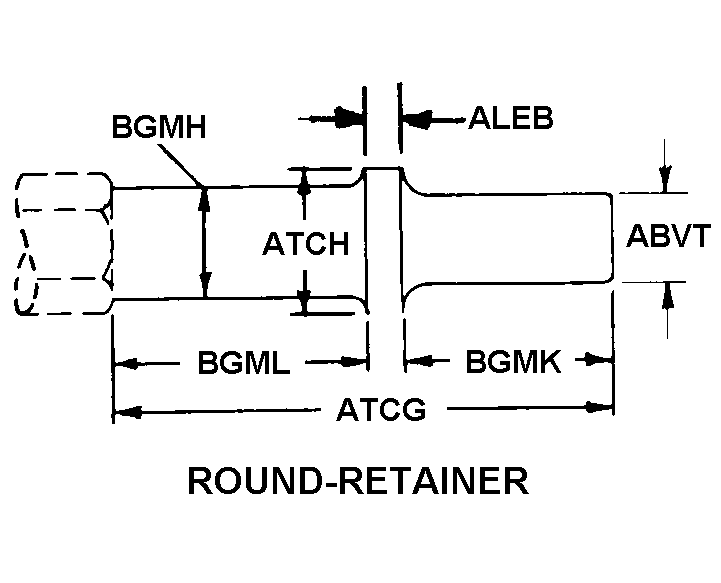

| ACCOMMODATED TOOL SHANK STYLE | AB6 ROUND-RETAINER |
| SHANK OVERALL LENGTH | 1.500 INCHES NOMINAL |
| DIAMETER | ANY ACCEPTABLE |
| FIRST SHOULDER DIAMETER | 0.500 INCHES NOMINAL |
| ROUND TANG LENGTH | ANY ACCEPTABLE |
| FIRST SHOULDER LENGTH | 0.500 INCHES NOMINAL |
| RETAINER WIDTH | ANY ACCEPTABLE |
| RETAINER DIAMETER | ANY ACCEPTABLE |
| RIVETING IMPACT TYPE | RECIPROCATING |
| COLD ALUMINUM ALLOY RIVET DIAMETER ACCOMMODATED | 0.188 INCHES NOMINAL |
| COLD STEEL RIVET DIAMETER ACCOMMODATED | 0.156 INCHES NOMINAL |
| HITTING SPEED | SLOW |
| NAIL DRIVING RETAINING DEVICE | NOT PROVIDED |
| PISTON STROKE LENGTH | 3.000 INCHES NOMINAL |
| PISTON BORE DIAMETER | 0.563 INCHES NOMINAL |
| ACCESSORY COMPONENTS AND QUANTITY | ANY ACCEPTABLE |
Restrictions/Controls & Freight Information | NSN 5130-00-541-4008
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
