NSN 5130-01-008-9551 4C, 01-008-9551, 010089551
Product Details | ABRASIVE WHEEL
5130-01-008-9551 A rigid piece of abrasive with or without mounting facilities. Items having such mounting facilities as a fixed spindle, a threaded insert, or an arbor hole are designed for mounting on a grinding machine, tool chuck or mandrel. Items without mounting facilities are designed to be secured in a wheel holder by means of spring clamps.20534600024Machine Tool accessories51300024Hand Tools, Power Driven53450026Disks and Stones, Abrasive65200043Dental Instruments, Equipment, and Supplies65400047Ophthalmic Instruments, Equipment, and Supplies
Part Alternates: 4C, 5130-01-008-9551, 01-008-9551, 5130010089551, 010089551
Hand Tools | Hand Tools, Power Driven
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 SEP 1975 | 01-008-9551 | 02613 ( WHEEL, ABRASIVE ) |
Drawings & Photos | NSN 5130-01-008-9551
Cross Reference | NSN 5130-01-008-9551
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4C | 86297 | CRATEX MANUFACTURING CO INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5130-01-008-9551
Technical Data | NSN 5130-01-008-9551
| Characteristic | Specifications |
|---|---|
| ABRASIVE MATERIAL | SILICON CARBIDE |
| USAGE DESIGN | METAL WORKING |

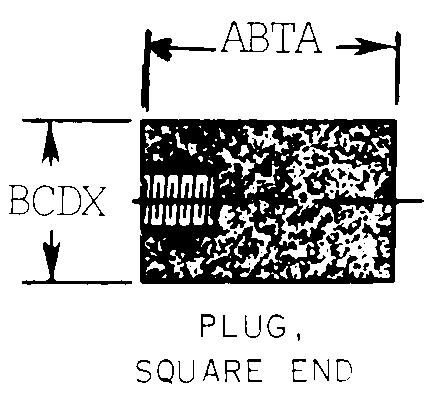

| WHEEL STYLE | 81 SQUARE END PLUG |
| OVERALL THICKNESS | 0.500 INCHES NOMINAL |
| WHEEL DIAMETER | 0.250 INCHES NOMINAL |
| MOUNTING METHOD | ARBOR HOLE |
| MOUNTING OPENING SHAPE STYLE | 1 ROUND |
| DIAMETER | 0.062 INCHES NOMINAL |
| BINDER MATERIAL | RUBBER |
| MAXIMUM SPEED RATING IN RPM | 25000.0 |
| COLOR | GREEN |
| SPECIAL FEATURES | COARSE GRIT |
Restrictions/Controls & Freight Information | NSN 5130-01-008-9551
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
