NSN 5130-01-083-6594 SS-20 , SS2008833S, SS20-08833S
Product Details | ROTARY WHEEL WIRE BRUSH
5130-01-083-6594 A disk shaped unit having a fill section of wire material extending from the perimeter of the disk perpendicular to the axis of the hub. It is used with a rotary power-operated device for roughing, buffing and/or polishing various surfaces. See also BRUSH, WIRE, ROTARY CUP; BRUSH, WIRE, ROTARY END; and BRUSH, FIBER, ROTARY WHEEL.20234600024Machine Tool accessories51300024Hand Tools, Power Driven
Part Alternates: SS-20 , SS2008833S, SS20-08833S, SS20, 08833S , 5130-01-083-6594, 01-083-6594, 5130010836594, 010836594
Hand Tools | Hand Tools, Power Driven
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 28 SEP 1979 | 01-083-6594 | 13226 ( BRUSH, WIRE, ROTARY WHEEL ) |
Drawings & Photos | NSN 5130-01-083-6594
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5130-01-083-6594
Technical Data | NSN 5130-01-083-6594
| Characteristic | Specifications |
|---|---|

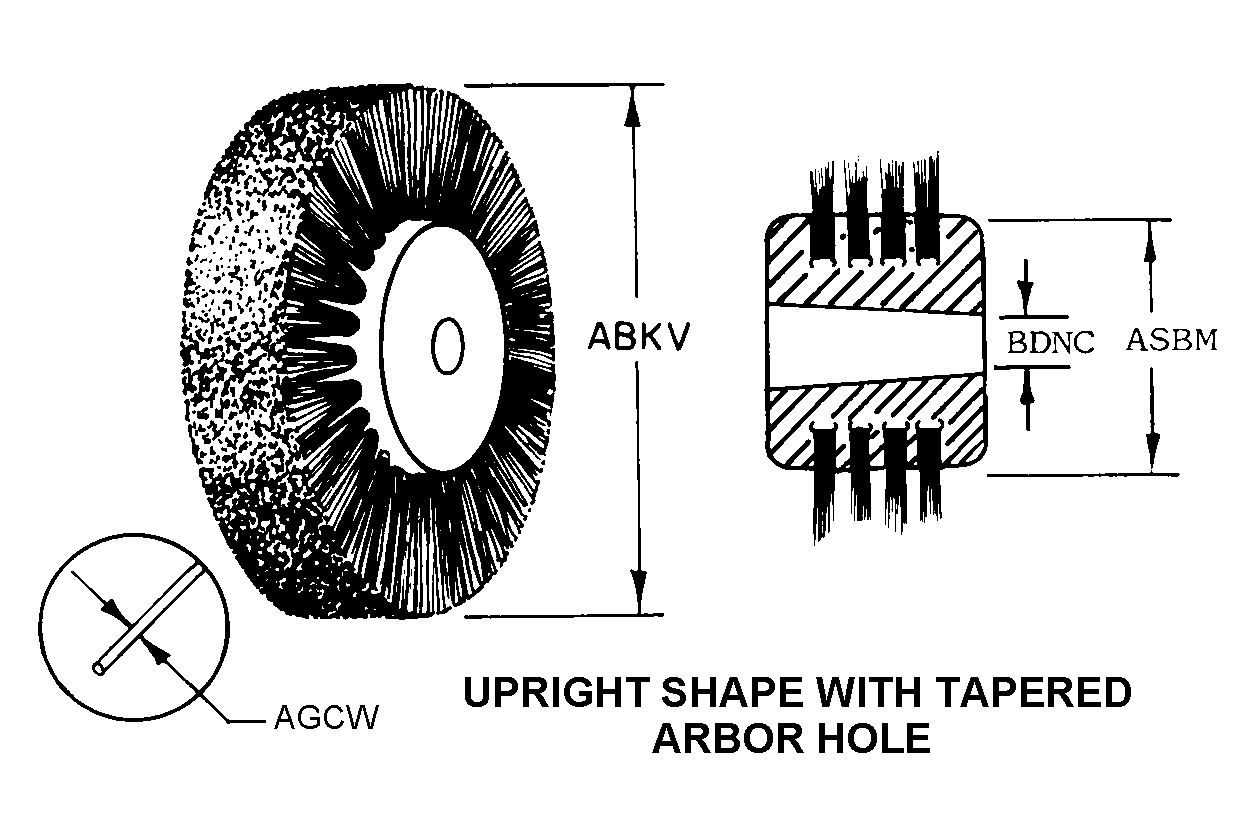

| STYLE DESIGNATOR | G2 UPRIGHT SHAPE WITH TAPERED ARBOR HOLE |
| OUTSIDE DIAMETER | 2.000 INCHES NOMINAL |
| HUB DIAMETER | 0.875 INCHES NOMINAL |
| ARBOR HOLE DIAMETER AT SMALL END OF TAPER | 0.375 INCHES NOMINAL |
| WIRE DIAMETER | 0.0118 INCHES NOMINAL |
| FACE WIDTH | 0.250 INCHES NOMINAL |
| FILL MATERIAL | STEEL |
| WIRE FILL TYPE | CRIMPED |
| MAXIMUM SPEED RATING IN RPM | 20000.0 |
| SPECIAL FEATURES | STANDARD PACKAGE OF 6 |
Restrictions/Controls & Freight Information | NSN 5130-01-083-6594
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
