NSN 5130-01-271-2943 3C3069G02, 01-271-2943, 012712943
Product Details | HYDRAULIC PULLER
5130-01-271-2943 A puller operated by a hydraulic force. The hydraulic force may be an integral part of the puller, or supplied from an external source. It includes items with a series of parts to give a different spread and/or reach. For items with additional parts which can be assembled into various different functional combinations, except spread and/or reach, see PULLER KIT, UNIVERSAL.
Part Alternates: 3C3069G02, 5130-01-271-2943, 01-271-2943, 5130012712943, 012712943
Hand Tools | Hand Tools, Power Driven
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 22 JAN 1988 | 01-271-2943 | 36872 ( PULLER, HYDRAULIC ) |
Drawings & Photos | NSN 5130-01-271-2943
Cross Reference | NSN 5130-01-271-2943
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3C3069G02 | 66464 | GENERAL ELECTRIC CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5130-01-271-2943
Related Products | NSN 5130-01-271-2943
Technical Data | NSN 5130-01-271-2943
| Characteristic | Specifications |
|---|---|

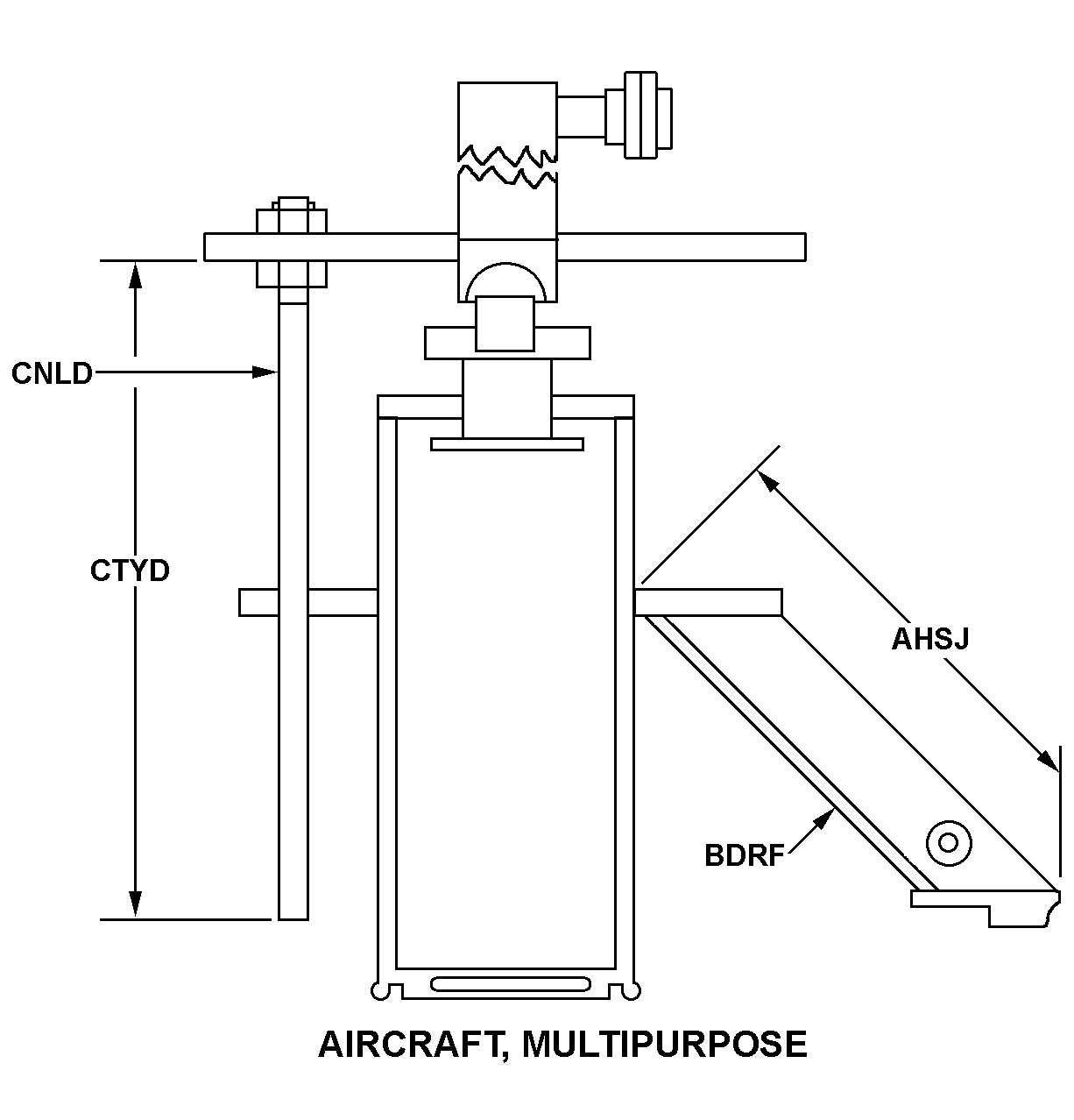

| STYLE DESIGNATOR | BQ12 AIRCRAFT, MULTI PURPOSE |
| FEATURES PROVIDED | HYDRAULIC PUMP |
| SPECIAL FEATURES | PULLER,NO.2 BEARING,INNER & OUTER RACES AND ROTATING AIR SEAL; COLLAR,1; PILOT PLATE,1; PULLER PLATE,1; EXT. ROD,1; RETAINER RING,1; LEGS,3; HYDRAULIC CYLINDER,1; PROTECTOR,1;PINS,6 |
| III END ITEM IDENTIFICATION | F110 ENGINE |
| MANUFACTURERS CODE | 66464 |
| DESIGN CONTROL REFERENCE | 3C3069G02 |
Restrictions/Controls & Freight Information | NSN 5130-01-271-2943
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | M | HANDTOOLS AND SHOP EQUIPMENT |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5130-01-271-2943
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Price Validation | P | The current standard price is the initial negotiated provisioned price.
|
| Budget Code | Y | variousO & M:AF centrally procured equipment items. They are separate, primary end items (other than the weapon system itself) needed by a user to perform an assigned mission. They are nonexpendable items (ERRCD NF or ND) which are not consumed in use, and they do not lose their original identity during periods of use by incorporation into, or attachment to another assembly. |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | M | HANDTOOLS AND SHOP EQUIPMENT |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 1R | Aeronautical, photographic, and meteorological material (consumable or expense type material) Naval Inventory Control Point, Philadelphia |
| Special Material ID | XN | JET ENGINE(F110-GE-400) |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | N32 | Naval Inventory Control Point Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | W | Ground Support Equipment-End Items |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | M | HANDTOOLS AND SHOP EQUIPMENT |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
