NSN 5130-01-283-6811 PWA57336, 01-283-6811, 012836811
Product Details | HYDRAULIC PULLER
5130-01-283-6811 A puller operated by a hydraulic force. The hydraulic force may be an integral part of the puller, or supplied from an external source. It includes items with a series of parts to give a different spread and/or reach. For items with additional parts which can be assembled into various different functional combinations, except spread and/or reach, see PULLER KIT, UNIVERSAL.
Part Alternates: PWA57336, 5130-01-283-6811, 01-283-6811, 5130012836811, 012836811
Hand Tools | Hand Tools, Power Driven
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 11 AUG 1988 | 01-283-6811 | 36872 ( PULLER, HYDRAULIC ) |
Drawings & Photos | NSN 5130-01-283-6811
Cross Reference | NSN 5130-01-283-6811
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PWA57336 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5130-01-283-6811
Related Products | NSN 5130-01-283-6811
Technical Data | NSN 5130-01-283-6811
| Characteristic | Specifications |
|---|---|

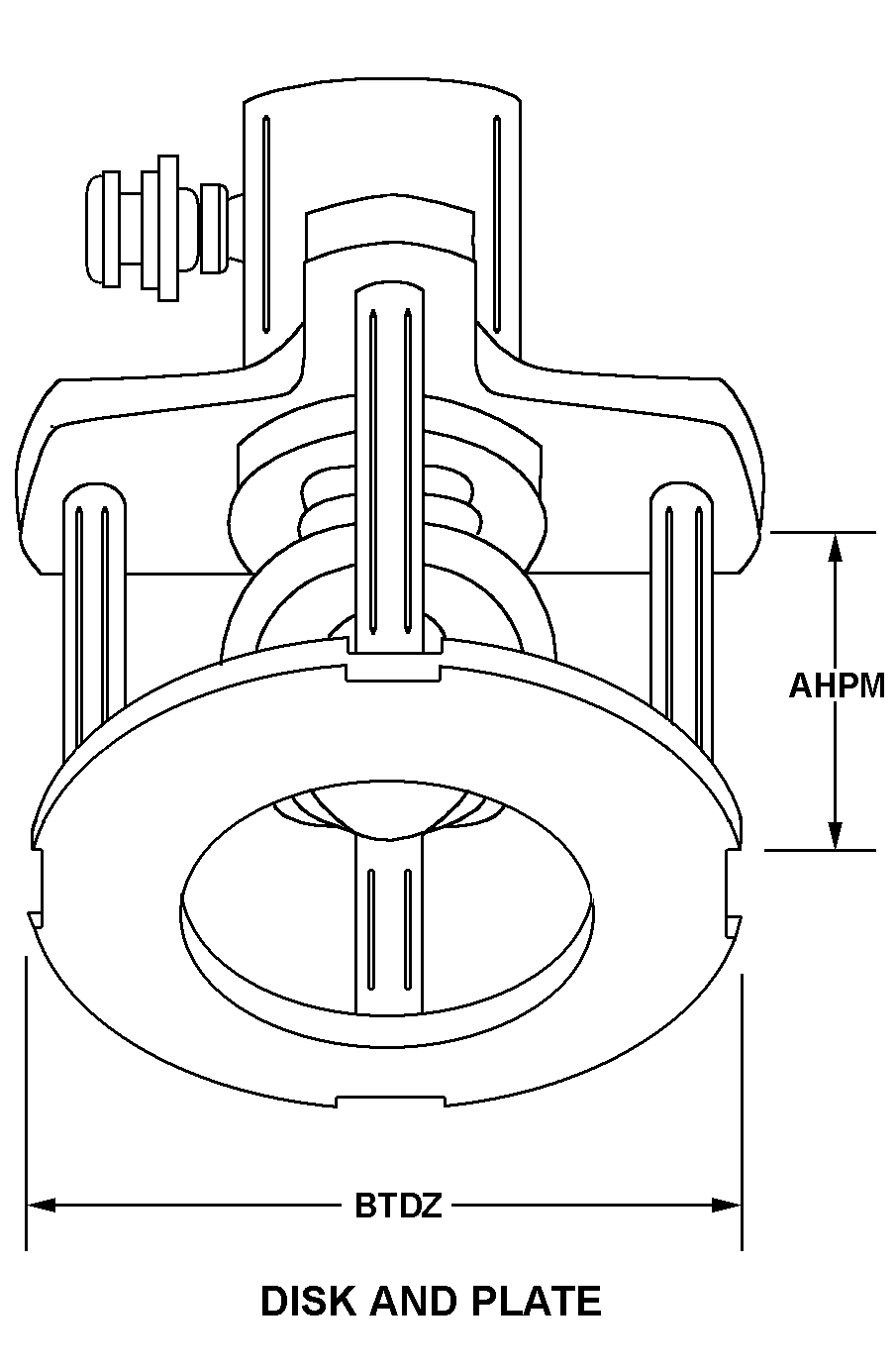

| STYLE DESIGNATOR | BQ10 DISK AND PLATE |
| UNIT TYPE | SELF-CONTAINED |
| PUMP TYPE | SINGLE |
| SPECIAL FEATURES | CONSISTS OF A CIRCULAR STEEL PLATE WITH AN 8 FINGER MECHANISM TO PULL ON THE INNER RACE OF THE BALL BEARING VIA A HYDRAULIC PRESSURE APPLIED THROUGH A HYDRAULIC RAM; REQUIRED TO PULL THE BALANCE BEARING FROM THE 2ND STAGE COMPRESSOR HUB AFTER THE FRONT COMPRESSOR ROTOR AND STATOR BALANCE OPERATION; MEASURES 8.0 IN. LONG,8.5 IN. HIGH |
| III END ITEM IDENTIFICATION | F100/200 ENGINE |
| MANUFACTURERS CODE | 77445 |
| DESIGN CONTROL REFERENCE | PWA57336 |
Restrictions/Controls & Freight Information | NSN 5130-01-283-6811
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | M | HANDTOOLS AND SHOP EQUIPMENT |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186590 | TOOLS:ELEC HYDR PNEU/I/C ENG/PARTS |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5130-01-283-6811
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Budget Code | Y | variousO & M:AF centrally procured equipment items. They are separate, primary end items (other than the weapon system itself) needed by a user to perform an assigned mission. They are nonexpendable items (ERRCD NF or ND) which are not consumed in use, and they do not lose their original identity during periods of use by incorporation into, or attachment to another assembly. |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | M | HANDTOOLS AND SHOP EQUIPMENT |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
