NSN 5130-01-324-2008 P89439Y, 01-324-2008, 013242008
Product Details | PNEUMATIC TOOL RIVET SET
5130-01-324-2008 A tool having a formed shank, designed for use with pneumatic riveters, holders-on, hammers, and the like, for driving and setting rivets. Excludes RIVET SET, BLANK, PNEUMATIC TOOL.
Part Alternates: P89439Y, 5130-01-324-2008, 01-324-2008, 5130013242008, 013242008
Hand Tools | Hand Tools, Power Driven
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01-324-2008 | 05261 ( RIVET SET, PNEUMATIC TOOL ) |

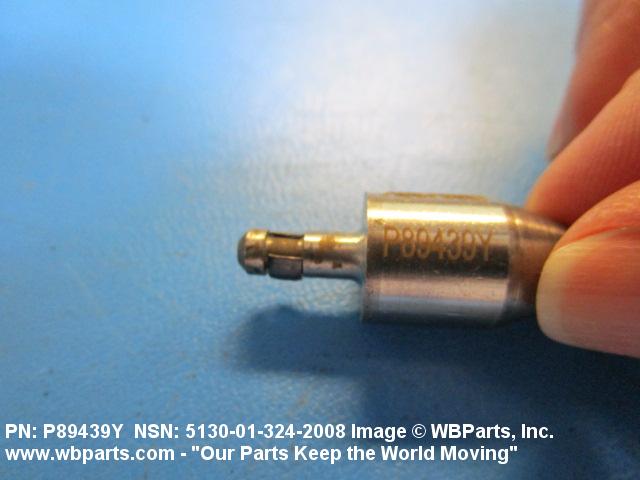

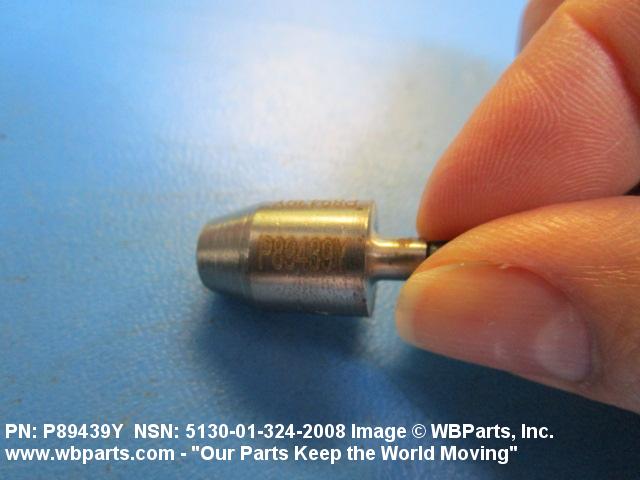

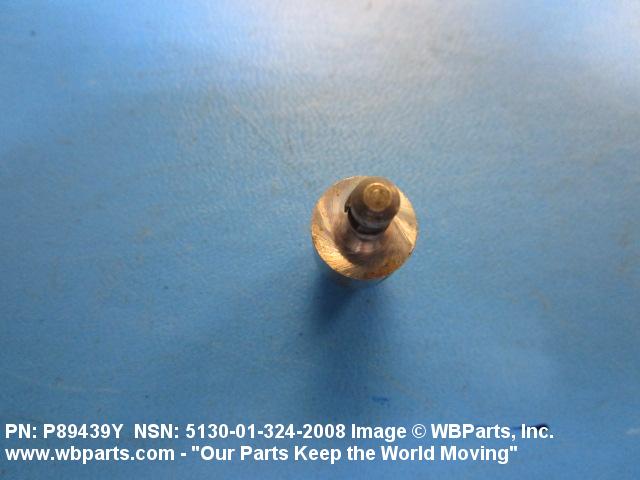

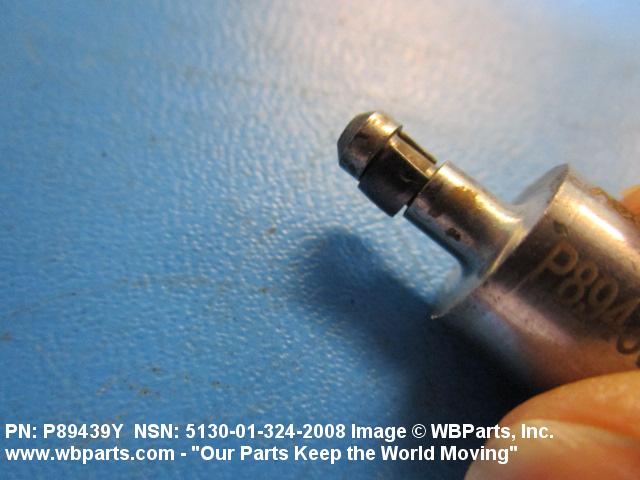

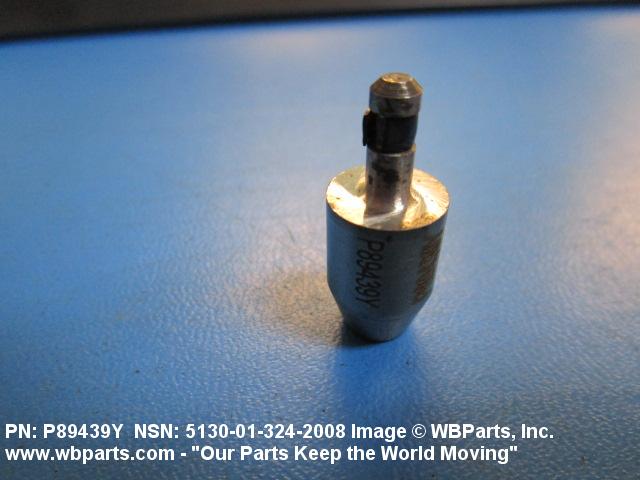

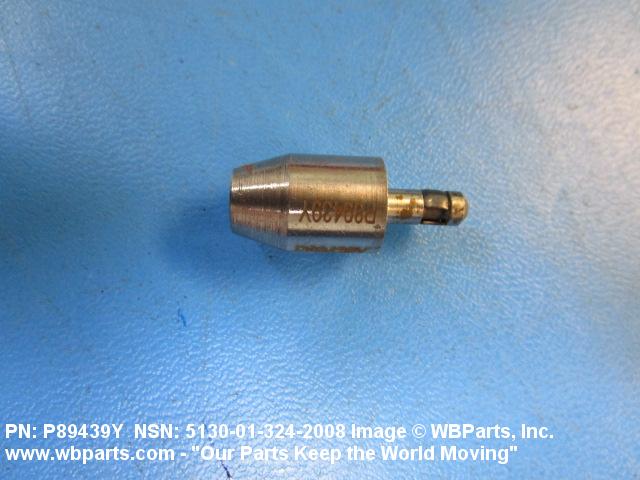

Drawings & Photos | NSN 5130-01-324-2008
Demand History | NSN 5130-01-324-2008
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5130-01-324-2008 | 2021-09-259 | 1 | Canada |
| 5130-01-324-2008 | 2021-09-257 | 1 | Canada |
| 5130-01-324-2008 | 2021-09-256 | 1 | Canada |
| 5130-01-324-2008 | 2021-09-251 | 1 | Canada |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5130-01-324-2008
Technical Data | NSN 5130-01-324-2008
| Characteristic | Specifications |
|---|---|
| SHANK STYLE | AB20 STRAIGHT ROUND-RETAINER |
| SHANK OVERALL LENGTH | 0.500 INCHES NOMINAL |
| DIAMETER | 0.187 INCHES NOMINAL |
| RETAINER GROOVE WIDTH | 0.136 INCHES NOMINAL |
| DISTANCE BETWEEN SHANK END AND RETAINER GROOVE | 0.062 INCHES NOMINAL |
| RETAINER GROOVE DIAMETER | 0.127 INCHES NOMINAL |
| UNIT TYPE | CUPPED |
| CUPPED DESIGN | UNIVERSAL |
| CUP DEPTH | 0.040 INCHES NOMINAL |
| RIVET SIZE FOR WHICH DESIGNED | 0.125 INCHES NOMINAL |
| BODY STYLE | BL15 SQUEEZER INSERT SHANK RETAINING |
| OVERALL LENGTH | 1.250 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5130-01-324-2008
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
