NSN 5130-01-337-3630 30143, 97SV10, 97-SV-10
Product Details | ROTARY END WIRE BRUSH
5130-01-337-3630 A brush having a circular wire fill section secured in a tubular back, and a 1/4 inch round shank drive. The fill material extends parallel or at right angles to the axis of its shank. It is used in a rotary, power-operated device for carbon removing, cleaning, smoothing and the like. See also BRUSH, WIRE, ROTARY CUP; and BRUSH, WIRE, ROTARY WHEEL.
Part Alternates: 30143, 97SV10, 97-SV-10, 5130-01-337-3630, 01-337-3630, 5130013373630, 013373630
Hand Tools | Hand Tools, Power Driven
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 14 APR 1991 | 01-337-3630 | 10086 ( BRUSH, WIRE, ROTARY END ) |

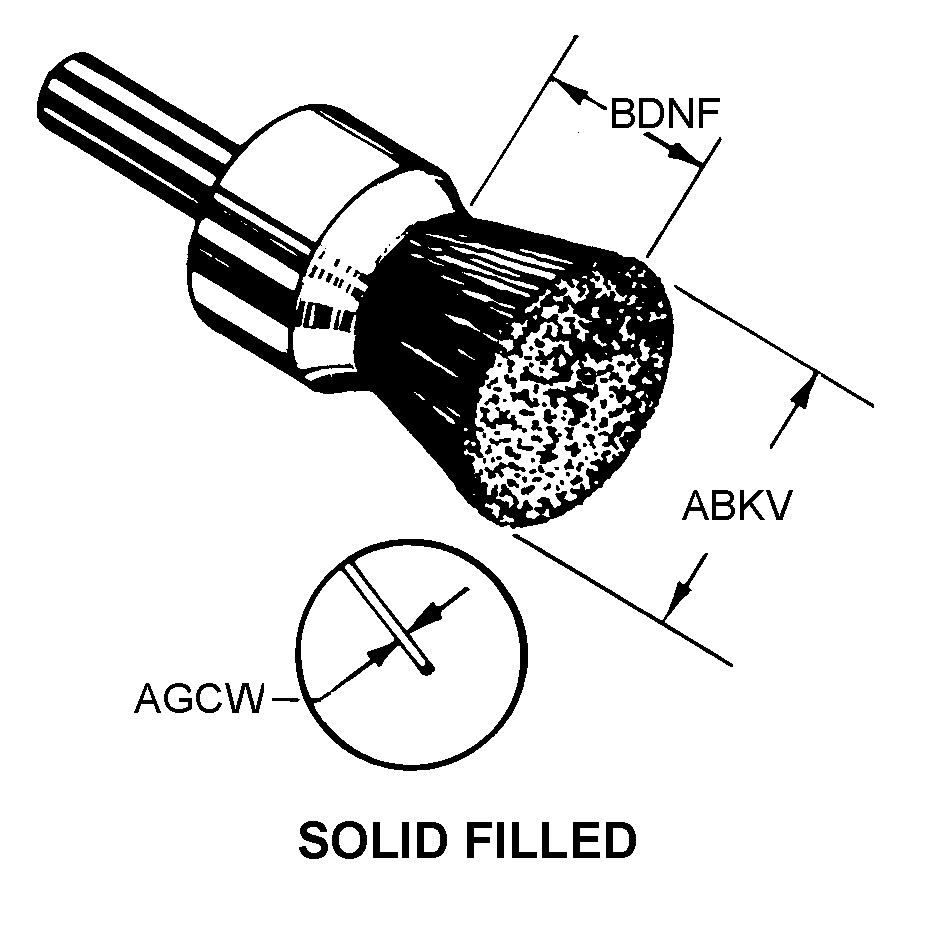

Drawings & Photos | NSN 5130-01-337-3630
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5130-01-337-3630
Technical Data | NSN 5130-01-337-3630
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | F1 SOLID FILLED |
| OUTSIDE DIAMETER | 1.000 INCHES NOMINAL |
| TRIM LENGTH | 1.000 INCHES NOMINAL |
| WIRE DIAMETER | 0.0104 INCHES NOMINAL |
| FILL MATERIAL | STEEL |
| WIRE FILL TYPE | CRIMPED |
| MAXIMUM SPEED RATING IN RPM | 20000.0 |
Restrictions/Controls & Freight Information | NSN 5130-01-337-3630
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5130-01-337-3630
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | E | General Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
