NSN 5130-01-396-6548 HD6740, 01-396-6548, 013966548
Product Details | PORTABLE ELECTRIC DRILL
5130-01-396-6548 An electric powered hand-held rotary tool, having either a drill chuck or a morse taper socket. It may include drill accessories such as guide clamps, bushings and the like.
Part Alternates: HD6740, 5130-01-396-6548, 01-396-6548, 5130013966548, 013966548
Hand Tools | Hand Tools, Power Driven
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 22 SEP 1994 | 01-396-6548 | 11249 ( DRILL, ELECTRIC, PORTABLE ) |
Drawings & Photos | NSN 5130-01-396-6548
Cross Reference | NSN 5130-01-396-6548
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HD6740 | 55111 | SKIL CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5130-01-396-6548
Technical Data | NSN 5130-01-396-6548
| Characteristic | Specifications |
|---|---|
| CURRENT TYPE | AC |
| VOLTAGE RATING | 120.000 VOLTS NOMINAL |
| FREQUENCY RATING | 60.0 HERTZ NOMINAL |
| PHASE | SINGLE |
| ALTERNATING CURRENT RATING IN AMPS | 6.0 |
| NO LOAD SPEED IN RPM | 500.0 MAXIMUM |
| DRIVE FOR WHICH DESIGNED | STRAIGHT |
| DRIVE END TYPE | KEYED JAW CHUCK |
| PLUG CONNECTOR TYPE | 3-PRONG |
| SPEED ADJUSTMENTS | VARIABLE SPEED |
| CORD LENGTH | 8.000 FEET NOMINAL |

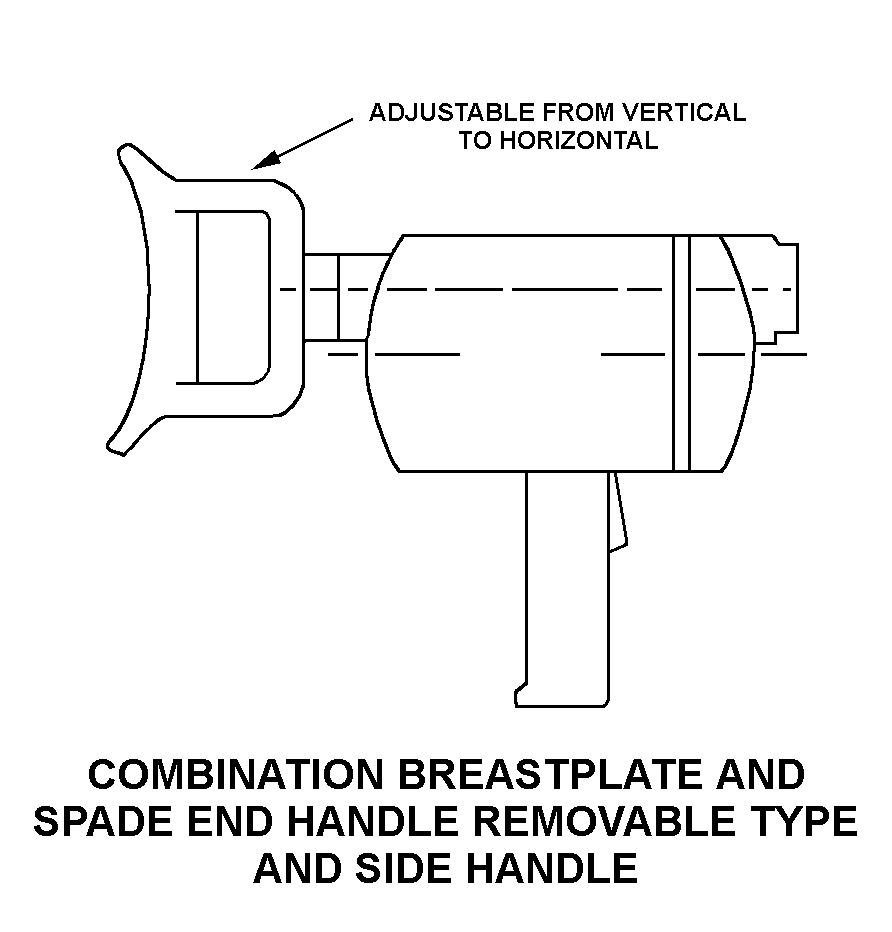

| HANDLE STYLE | AR3 COMBINATION BREASTPLATE AND SPADE END HANDLE REMOVABLE TYPE AND SIDE HANDLE |
| SIZE DESIGNATOR | 0.500 INCHES NOMINAL |
| AUXILIARY HANDLE LOCATION | LEFT HAND SIDE |
| ACCESSORY COMPONENTS AND QUANTITY | CHUCK KEY, CHUCK KEY HOLDER AND SIDE HANDLE |
| FEATURES PROVIDED | NONREVERSIBLE AND DOUBLE INSULATED |
| SPECIAL FEATURES | LOCK-ON TRIGGER |
Restrictions/Controls & Freight Information | NSN 5130-01-396-6548
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5130-01-396-6548
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
