NSN 5130-01-450-1951 96S180, 96-S-180, 01-450-1951
Product Details | ROTARY END WIRE BRUSH
5130-01-450-1951 A brush having a circular wire fill section secured in a tubular back, and a 1/4 inch round shank drive. The fill material extends parallel or at right angles to the axis of its shank. It is used in a rotary, power-operated device for carbon removing, cleaning, smoothing and the like. See also BRUSH, WIRE, ROTARY CUP; and BRUSH, WIRE, ROTARY WHEEL.
Part Alternates: 96S180, 96-S-180, 5130-01-450-1951, 01-450-1951, 5130014501951, 014501951
Hand Tools | Hand Tools, Power Driven
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 29 OCT 1997 | 01-450-1951 | 10086 ( BRUSH, WIRE, ROTARY END ) |

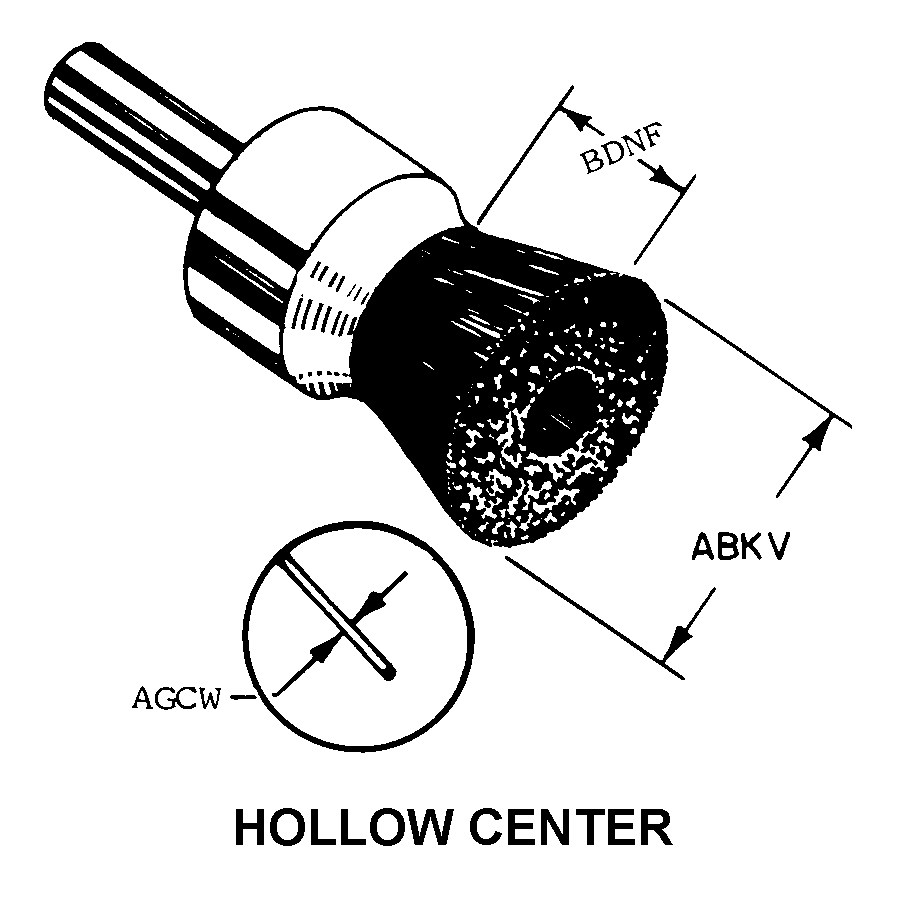

Drawings & Photos | NSN 5130-01-450-1951
Cross Reference | NSN 5130-01-450-1951
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 96-S-180 | 45092 | JASON INCORPORATED DBA OSBORN INTERNATIONAL A UNIT OF |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5130-01-450-1951
Technical Data | NSN 5130-01-450-1951
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | F2 HOLLOW CENTER |
| OUTSIDE DIAMETER | 0.750 INCHES NOMINAL |
| TRIM LENGTH | 1.125 INCHES NOMINAL |
| WIRE DIAMETER | 0.0060 INCHES NOMINAL |
| MAXIMUM SPEED RATING IN RPM | 20000.0 |
| SPECIAL FEATURES | O/A LG. 2.750 IN. NOMINAL |
Restrictions/Controls & Freight Information | NSN 5130-01-450-1951
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
