NSN 5130-01-459-6048 DW966K, DW966K2, DW966K-2
Product Details | PORTABLE ELECTRIC DRILL-DRIVER
5130-01-459-6048 A handheld power tool with two settings; one high rpm setting for drilling and one low rpm, high torque setting for installing fasteners, may be cordless. May include features such as a keyed or keyless type chuck, variable speed trigger, battery packs and charger (for cordless type).
Part Alternates: DW966K, DW966K2, DW966K-2, 5130-01-459-6048, 01-459-6048, 5130014596048, 014596048
Hand Tools | Hand Tools, Power Driven
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 08 OCT 1998 | 01-459-6048 | 66603 ( DRILL-DRIVER, ELECTRIC, PORTABLE ) |
Drawings & Photos | NSN 5130-01-459-6048
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5130-01-459-6048
Technical Data | NSN 5130-01-459-6048
| Characteristic | Specifications |
|---|---|
| CURRENT TYPE | DC |
| VOLTAGE RATING | 14.400 VOLTS NOMINAL |
| NO LOAD SPEED IN RPM | 1250.0 MAXIMUM |
| DRIVE FOR WHICH DESIGNED | ANGULAR |
| DRIVE END TYPE | KEYLESS JAW CHUCK |
| ANGLE | 90.0 DEGREES |
| SPEED ADJUSTMENTS | VARIABLE SPEED |
| TORQUE CAPACITY | 210.0 INCH-POUNDS MAXIMUM |

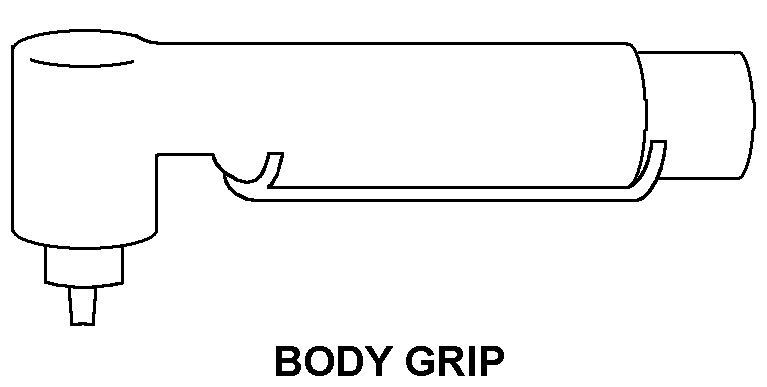

| HANDLE STYLE | AR6 BODYGRIP |
| SIZE DESIGNATOR | 0.375 INCHES NOMINAL |
| ACCESSORY COMPONENTS AND QUANTITY | TWO BATTERIES, BATTERY CHARGER AND CASE |
| FEATURES PROVIDED | CORDLESS AND REVERSIBLE |
| SPECIAL FEATURES | TWO SPEED RANGES 0 TO 400/0 TO 1250 RPM; RUBBER TRIGGER |
Restrictions/Controls & Freight Information | NSN 5130-01-459-6048
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5130-01-459-6048
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
