NSN 5130-01-485-2366 MM2073, MM-207-3, 01-485-2366
Product Details | PNEUMATIC TOOL RIVET SET
5130-01-485-2366 A tool having a formed shank, designed for use with pneumatic riveters, holders-on, hammers, and the like, for driving and setting rivets. Excludes RIVET SET, BLANK, PNEUMATIC TOOL.
Part Alternates: MM2073, MM-207-3, 5130-01-485-2366, 01-485-2366, 5130014852366, 014852366
Hand Tools | Hand Tools, Power Driven
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01-485-2366 | 05261 ( RIVET SET, PNEUMATIC TOOL ) |
Drawings & Photos | NSN 5130-01-485-2366
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5130-01-485-2366
Technical Data | NSN 5130-01-485-2366
| Characteristic | Specifications |
|---|---|
| SHANK STYLE | AB7 ROUND |
| DIAMETER | 0.187 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| UNIT TYPE | COMPRESSION |
| FACE DIAMETER | 0.500 INCHES NOMINAL |

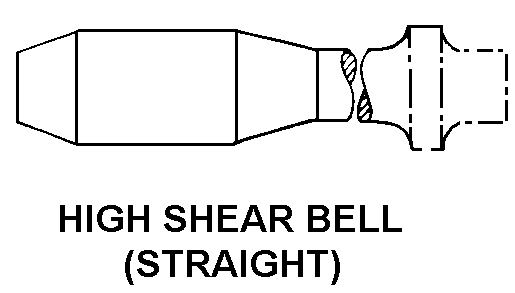

| BODY STYLE | BL9 HIGH SHEAR BELL STRAIGHT |
| SPECIAL FEATURES | 0.688 LENGTH; MADE WITH THE FINEST TOOL STEEL; SET COMES COMPLETE WITH SHARK RETAINER SPRINGS |
| III END ITEM IDENTIFICATION | HI-SHEER RIVETS, MARTIN AIRCRAFT TOOL CO |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | SQUEEZER SET |
Restrictions/Controls & Freight Information | NSN 5130-01-485-2366
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
