NSN 5133-00-055-7704 TLD2040AR33, TLD2040AR3-3, 00-055-7704
Product Details | DRIVE SHANK BOLT HOLE FORMING CUTTER

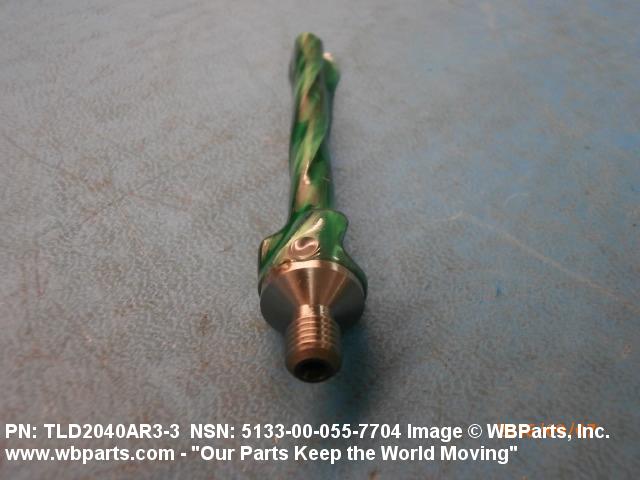

5133-00-055-7704 A tool consisting of any combination of drill, pilot drill, reamer, countersink, or counterbore. It is designed to form a hole for fasteners with a specific grip length and machined to a close tolerance to provide a drive fit. The tool has a shank requiring a special tool holder to be used in a power feed hand drilling machine or a power feed drill press.
Part Alternates: TLD2040AR33, TLD2040AR3-3, 5133-00-055-7704, 00-055-7704, 5133000557704, 000557704
Hand Tools | Drill Bits, Counterbores, and Countersinks: Hand and Machine
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 25 MAY 1967 | 00-055-7704 | 32727 ( CUTTER, HOLE FORMING, DRIVE SHANK BOLT ) |

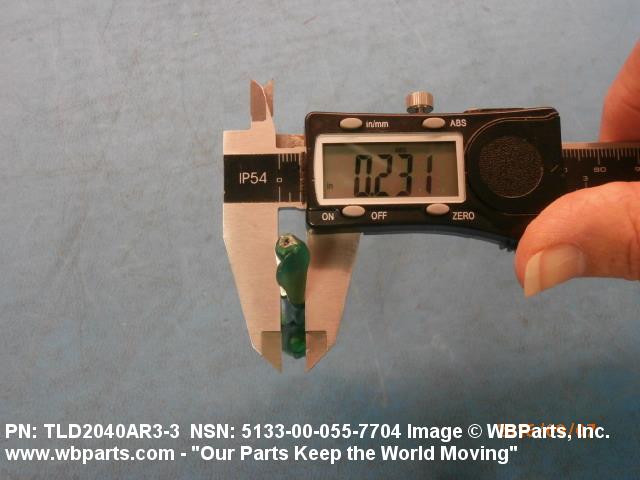

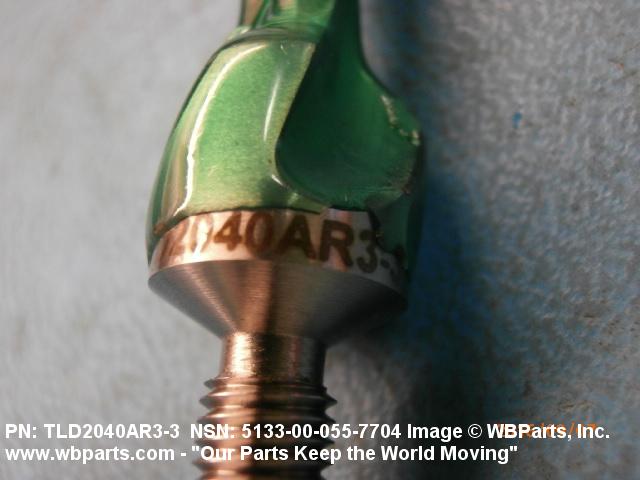

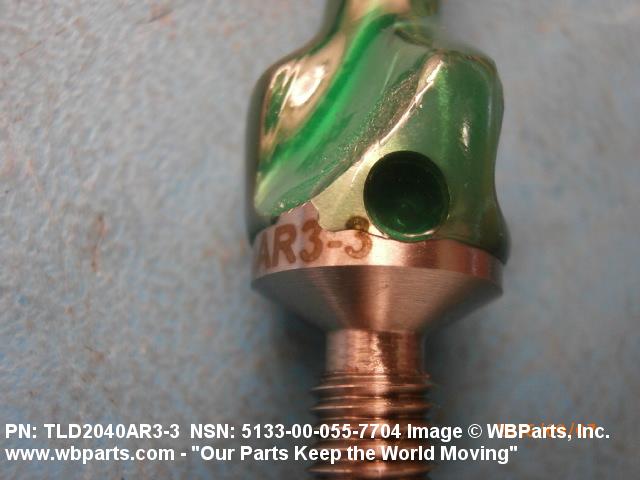

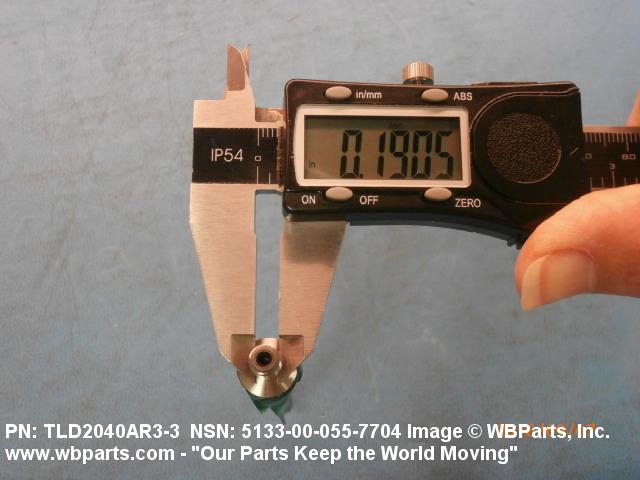

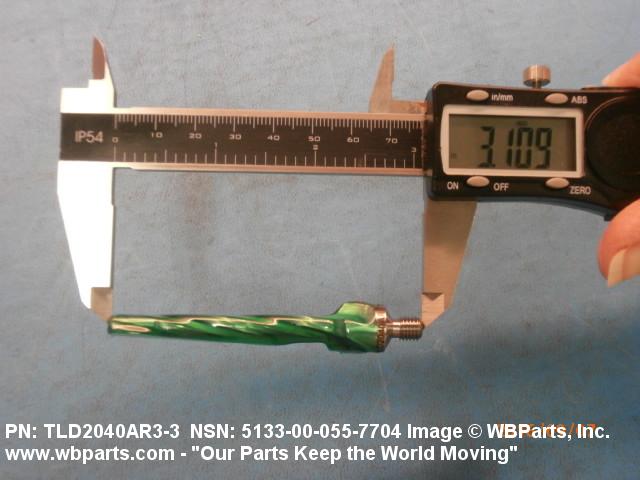

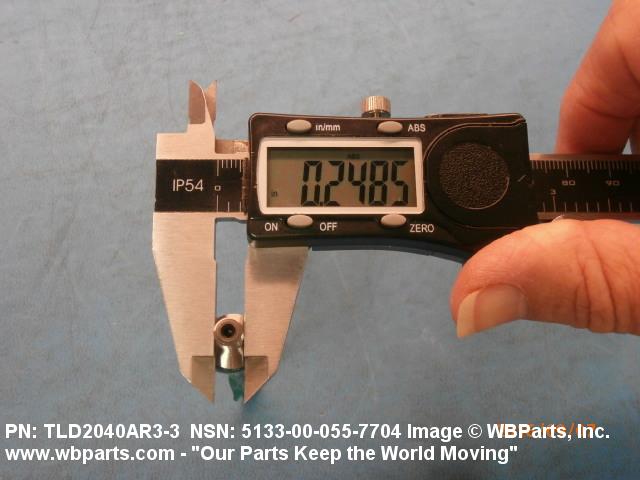

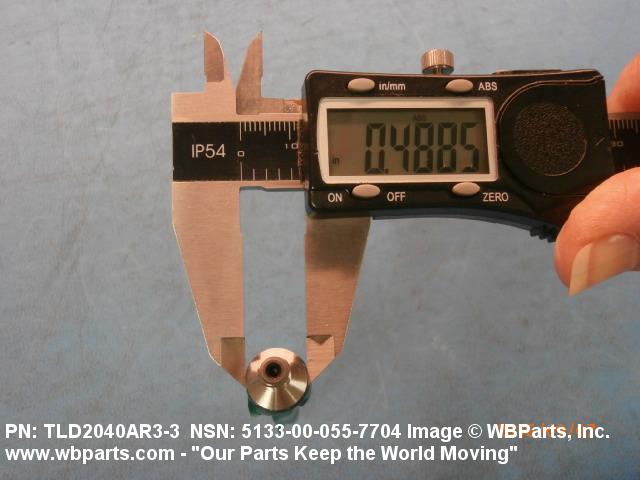

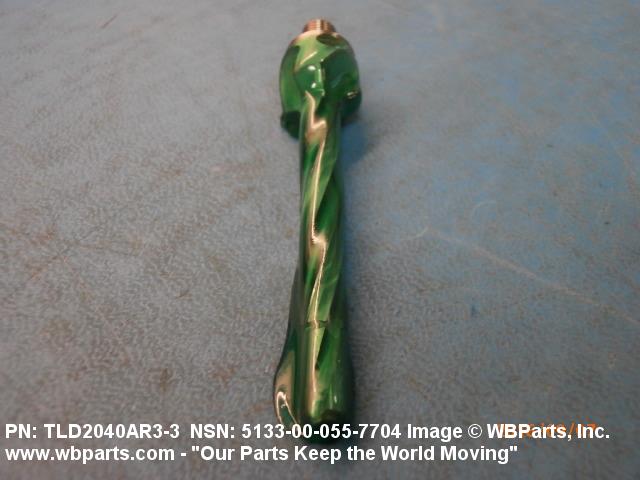

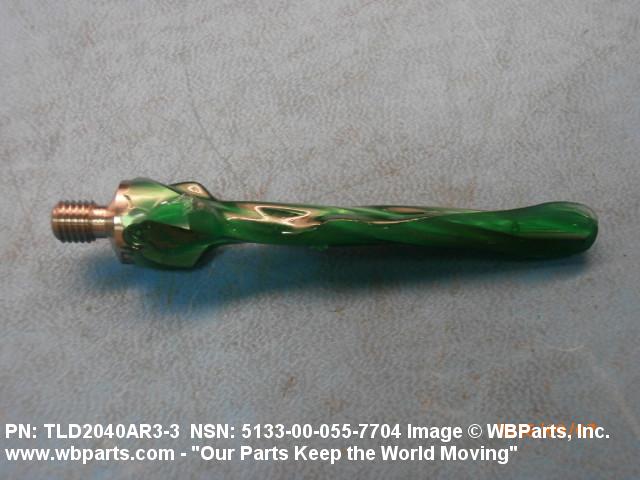

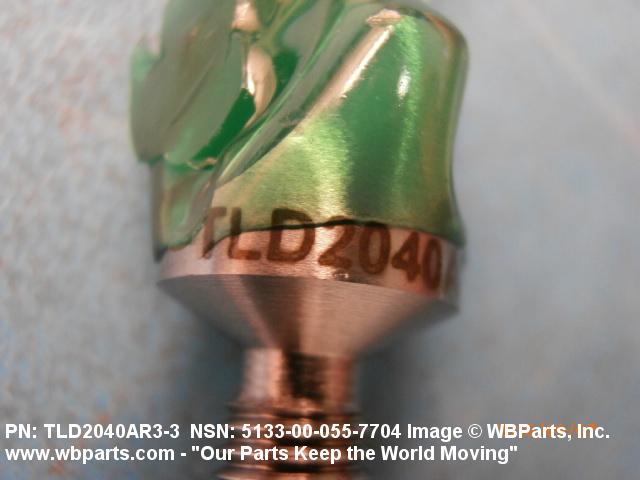

Drawings & Photos | NSN 5133-00-055-7704
Demand History | NSN 5133-00-055-7704
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5133-00-055-7704 | 2023-11-324 | 2 | ID |
| 5133-00-055-7704 | 2023-01-25 | 2 | United States |
| TLD2040AR33 | 2021-08-242 | 1 | BE |
| TLD2040AR33 | 2019-04-105 | 5 | US |
| TLD2040AR33 | 2016-08-238 | 1 | United States |
