NSN 5133-00-228-8304 GGGB383, GGG-B-383, 47710
Product Details | BELL-HANGER'S BIT
5133-00-228-8304 A twist drill-like item having a bit stock shank, with or without a small hole near the point for use in pulling wire. The length of twist is approximately 3 1/2 inches (88.9 mm) and the over-all length varies from 12 inches to 36 inches (304.8 mm to 914.4 mm).
Part Alternates: GGGB383, GGG-B-383, 47710, 5133-00-228-8304, 00-228-8304, 5133002288304, 002288304
Hand Tools | Drill Bits, Counterbores, and Countersinks: Hand and Machine
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1963 | 00-228-8304 | 15850 ( BIT, BELL-HANGER'S ) |
Drawings & Photos | NSN 5133-00-228-8304
Demand History | NSN 5133-00-228-8304
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| GGGB383 | 2024-02-46 | 1 | United States |
| GGG-B-383 | 2019-09-248 | 2 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5133-00-228-8304
Technical Data | NSN 5133-00-228-8304
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| HARDNESS RATING | 40.0 ROCKWELL C MINIMUM AND 53.0 ROCKWELL C MAXIMUM |

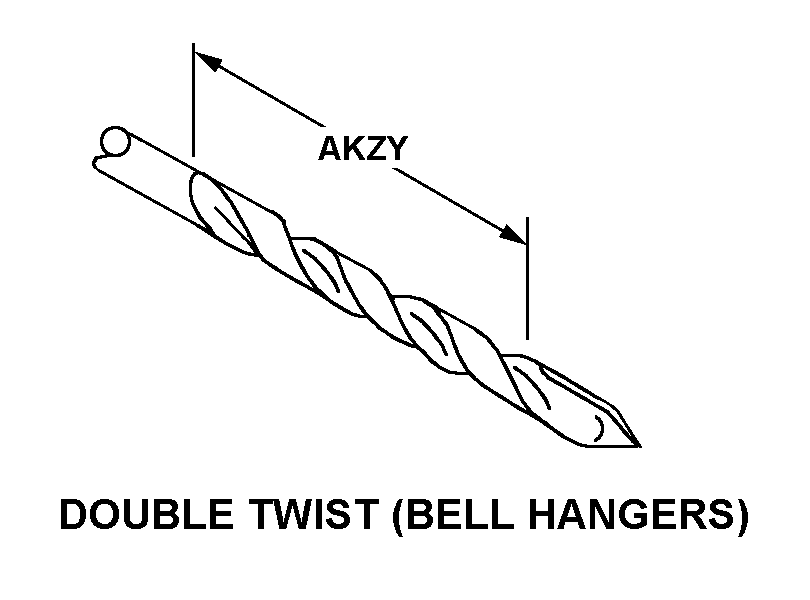

| CUTTING END STYLE | 12 DOUBLE TWIST |
| TWIST LENGTH | 3.500 INCHES MINIMUM |
| SHANK STYLE | 81 TAPER-SQUARE |
| SHANK LARGE END SQUARE WIDTH | 0.375 INCHES NOMINAL |
| SHANK SMALL END SQUARE WIDTH | 0.219 INCHES NOMINAL |
| OVERALL LENGTH | 18.000 INCHES NOMINAL |
| NOMINAL CUTTING DIAMETER | 0.6250 INCHES |
Restrictions/Controls & Freight Information | NSN 5133-00-228-8304
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
