NSN 5133-00-311-1798 PWA37110, 00-311-1798, 003111798
Product Details | TWIST DRILL
5133-00-311-1798 An end cutting tool having two or more cutting edges, and having helical flutes or grooves adjacent thereto for the admission of coolant and the ejection of cuttings or chips. It is used for drilling holes in various materials. Excludes DRILL, MASONRY (as modified); and DRILL,TWIST, BONE. See also DRILL, PIVOT, JEWELER'S and DRILL, HARDENED STEEL, CARBIDE TIPPED.
Part Alternates: PWA37110, 5133-00-311-1798, 00-311-1798, 5133003111798, 003111798
Hand Tools | Drill Bits, Counterbores, and Countersinks: Hand and Machine
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 26 OCT 1973 | 00-311-1798 | 05237 ( DRILL, TWIST ) |
Drawings & Photos | NSN 5133-00-311-1798
Cross Reference | NSN 5133-00-311-1798
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PWA37110 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5133-00-311-1798
Technical Data | NSN 5133-00-311-1798
| Characteristic | Specifications |
|---|---|
| BODY DIAMETER | 0.375 INCHES NOMINAL |

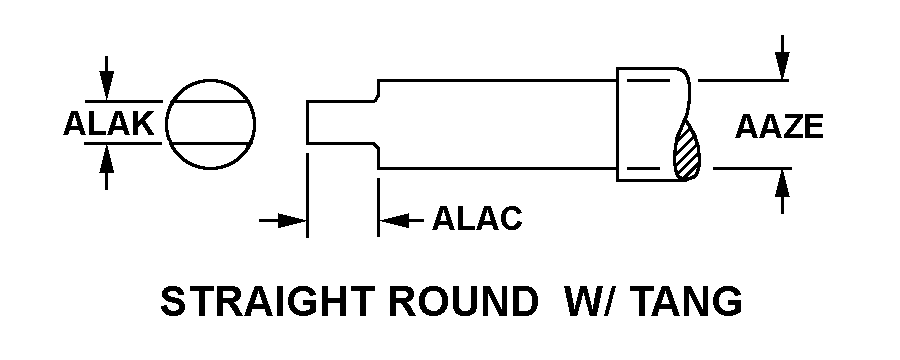

| SHANK STYLE | 87 STRAIGHT ROUND W/TANG |
| SHANK DIAMETER | 0.396 INCHES MINIMUM AND 0.397 INCHES MAXIMUM |
| OVERALL LENGTH | 5.125 INCHES NOMINAL |
| MANUFACTURERS CODE | 77445 |
| DESIGN CONTROL REFERENCE | PWA37110 |
Restrictions/Controls & Freight Information | NSN 5133-00-311-1798
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
