NSN 5136-01-157-6470 46938, 4693-8, 01-157-6470
Product Details | THREAD CUTTING TAP
5136-01-157-6470 An internal threading tool with longitudinally separated cutting edges designed to form specific threads.
Part Alternates: 46938, 4693-8, 5136-01-157-6470, 01-157-6470, 5136011576470, 011576470
Hand Tools | Taps, Dies, and Collets; Hand and Machine
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 10 JUL 1983 | 01-157-6470 | 15218 ( TAP, THREAD CUTTING ) |

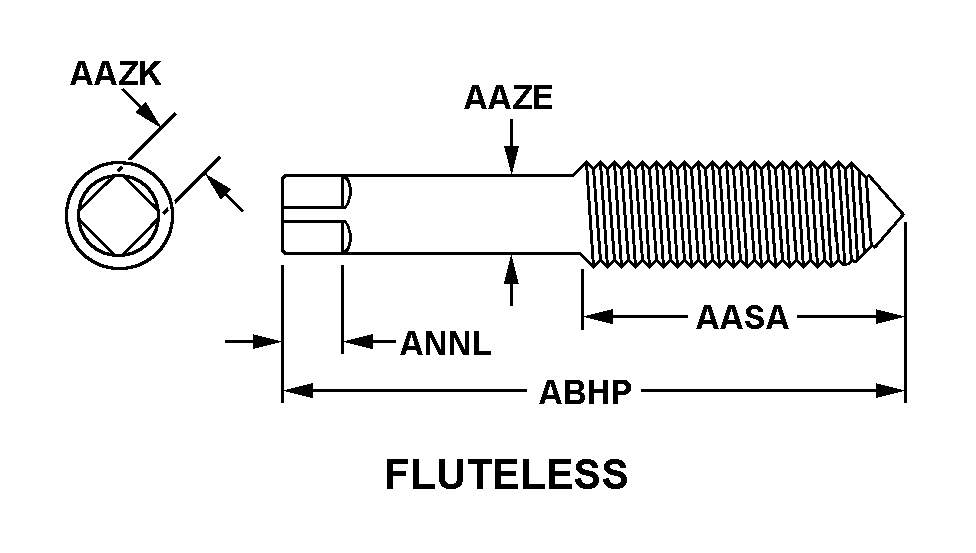

Drawings & Photos | NSN 5136-01-157-6470
Demand History | NSN 5136-01-157-6470
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4693-8 | 2023-06-165 | 38 | DIBBS |
| 5136-01-157-6470 | 2011-06-181 | 18 | DIBBS |
| 5136-01-157-6470 | 2011-04-102 | 49 | DIBBS |
| 5136-01-157-6470 | 2010-12-342 | 15 | DIBBS |
Cross Reference | NSN 5136-01-157-6470
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4693-8 | 01556 | EMHART TEKNOLOGIES LLC DBA EMHART FASTENING TEKNOLOGIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5136-01-157-6470
Related Products | NSN 5136-01-157-6470
Technical Data | NSN 5136-01-157-6470
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | M12 FLUTELESS |
| THREAD LENGTH | 11.250 INCHES NOMINAL |
| SHANK DIAMETER | 0.381 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.286 INCHES NOMINAL |
| OVERALL LENGTH | 2.9375 INCHES NOMINAL |
| SQUARE END LENGTH | 0.4375 INCHES NOMINAL |
| MATERIAL AND LOCATION | STEEL OVERALL |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR | 8.00 ISO S |
| THREAD PITCH IN MILLIMETERS | 1.25 |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD STRUCTURE | REGULAR |
| THREAD FORMING METHOD | CUT |
| STARTING CHAMFER TYPE | BOTTOMING |
| SPECIAL FEATURES | END ITEM IS GUN,AUTOMATIC,25 MM.(M242); NSN 1005-01-086-1400 |
| MANUFACTURERS CODE | 01556 |
| DESIGN CONTROL REFERENCE | 4693-8 |
