NSN 5136-01-337-8688 105, 16029, 50052
Product Details | THREAD CUTTING TAP
5136-01-337-8688 An internal threading tool with longitudinally separated cutting edges designed to form specific threads.
Part Alternates: 105, 16029, 50052, 5314 3/8-16 UNC, 53143816UNC, 5136-01-337-8688, 01-337-8688, 5136013378688, 013378688
Hand Tools | Taps, Dies, and Collets; Hand and Machine
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 23 APR 1991 | 01-337-8688 | 15218 ( TAP, THREAD CUTTING ) |

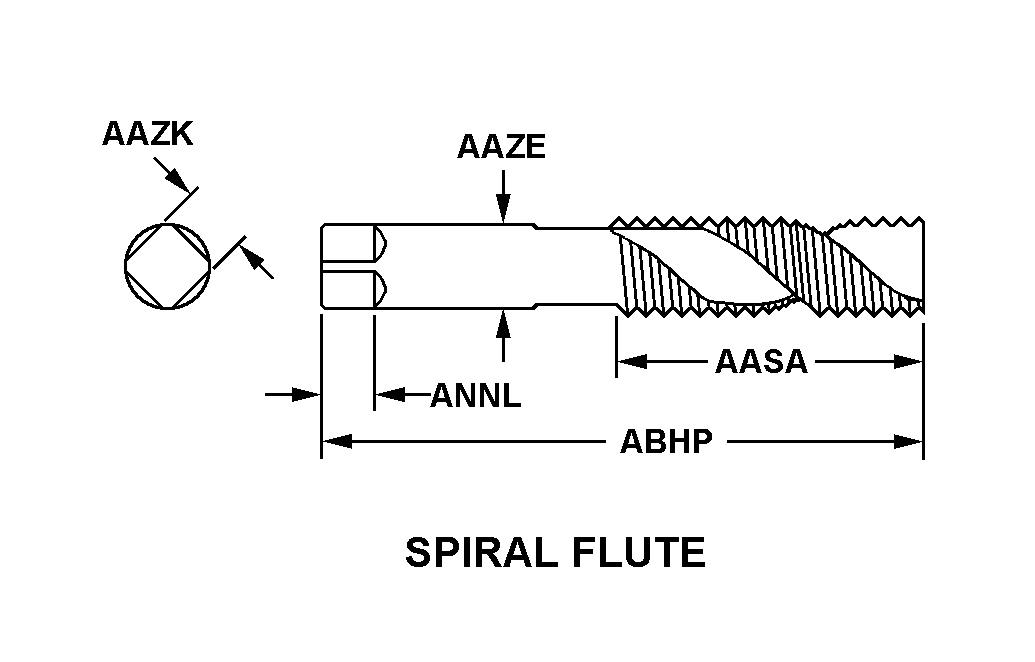

Drawings & Photos | NSN 5136-01-337-8688
Demand History | NSN 5136-01-337-8688
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 105 | 2023-07-184 | 15 | us |
| 50052 | 2011-03-76 | 1 | US |
Cross Reference | NSN 5136-01-337-8688
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 105 | 87297 | SOSSNER TAP AND TOOL CORP |
| 16029 | 1NEX4 | KENNAMETAL INC. DIV KENNAMETAL INDUSTRIAL PRODUCTS |
| 16029 | 60NQ9 | GREENFIELD INDUSTRIES, INC. |
| 16029 | 65400 | GREENFIELD INDUSTRIES INC |
| 50052 | 87297 | SOSSNER TAP AND TOOL CORP |
| 5314 3/8-16 UNC | 1NEX4 | KENNAMETAL INC. DIV KENNAMETAL INDUSTRIAL PRODUCTS |
| 5314 3/8-16 UNC | 60NQ9 | GREENFIELD INDUSTRIES, INC. |
| 5314 3/8-16 UNC | 65400 | GREENFIELD INDUSTRIES INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5136-01-337-8688
Related Products | NSN 5136-01-337-8688
Technical Data | NSN 5136-01-337-8688
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | M21 SPIRAL FLUTE |
| THREAD LENGTH | 1.250 INCHES NOMINAL |
| SHANK DIAMETER | 0.381 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.286 INCHES NOMINAL |
| OVERALL LENGTH | 2.938 INCHES NOMINAL |
| SQUARE END LENGTH | 0.438 INCHES NOMINAL |
| MATERIAL AND LOCATION | STEEL, HIGH SPEED OVERALL |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.375-16 UNC |
| THREAD PITCH DIAMETERS | 0.3354 TO 0.3359 INCHES |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD STRUCTURE | REGULAR |
| THREAD FORMING METHOD | GROUND |
| STARTING CHAMFER TYPE | PLUG |
| FLUTE QUANTITY | 3 |
| SPECIAL FEATURES | FAST SPIRAL |
Restrictions/Controls & Freight Information | NSN 5136-01-337-8688
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | M | HANDTOOLS AND SHOP EQUIPMENT |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5136-01-337-8688
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | E | General Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | D | Durable item. An item of Army property coded with an ARC of "D" in the AMDF. Durable items do not require property book accountability after issue from the stock record account, but do require hand receipt control when issued to the user. Commercial and fabricated items similar to items coded ?D?in the AMDF are considered durable items. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | M | HANDTOOLS AND SHOP EQUIPMENT |
| Shelf Life Code | 0 | Nondeteriorative |
