NSN 5210-00-063-5390 MILI18422, MIL-I-18422, MIL-I-18422 TY2STA
Product Details | DIAL INDICATOR
5210-00-063-5390 A mechanism for amplifying and measuring the displacement of a movable contact point, thereby measuring a dimension or variation from a standard dimension. It consists essentially of a case with means for mounting the indicator, a spindle carrying the contact point, an amplifying mechanism, a pointer and a graduated dial. May include accessories and/or attachments. Excludes INDICATOR, SCALE. See also GAGE, DEPTH, DIAL INDICATING.
Part Alternates: MILI18422, MIL-I-18422, MIL-I-18422 TY2STA, MILI18422TY2STA, PWA2252314, PWA22523-14, 67984672, 6798467-2, B3Q, 5210-00-063-5390, 00-063-5390, 5210000635390, 000635390
Measuring Tools | Measuring Tools, Craftsmen's
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 52 | 01 JAN 1963 | 00-063-5390 | 06275 ( INDICATOR, DIAL ) |
Drawings & Photos | NSN 5210-00-063-5390
Demand History | NSN 5210-00-063-5390
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5210-00-063-5390 | 2025-01-10 | 1 | US |
| 5210-00-063-5390 | 2024-04-92 | 1 | US |
Cross Reference | NSN 5210-00-063-5390
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6798467-2 | 73342 | ALLISON TRANSMISSION, INC. |
| B3Q | 21938 | MAHR FEDERAL INC. |
| MIL-I-18422 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-I-18422 TY2STA | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
| PWA22523-14 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5210-00-063-5390
Technical Data | NSN 5210-00-063-5390
| Characteristic | Specifications |
|---|---|
| MEASUREMENT CAPACITY | 0.020 INCHES |
| GRADUATION UNIT | 0.00050 INCHES |
| DIAL MARKING | 0-10-0 |
| DIAL TYPE | BALANCED |
| OVERALL DIAMETER | 1.688 INCHES NOMINAL |
| DIAL SETTING TYPE | ADJUSTABLE |
| CONTACT POINT LOCATION | RIM |

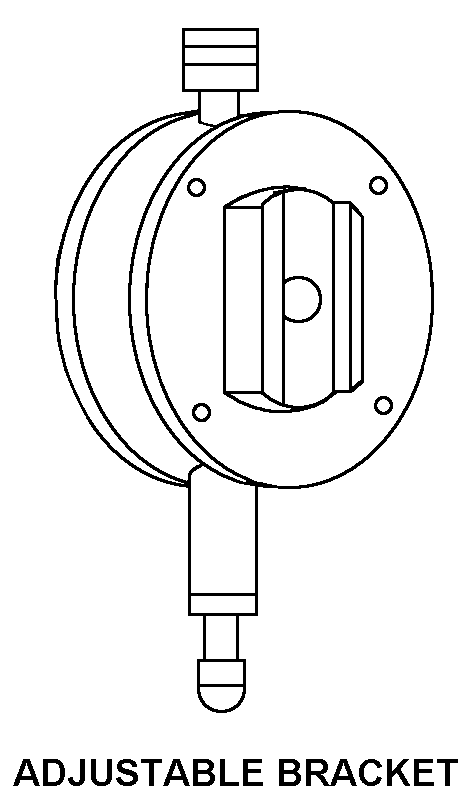

| MOUNTING STYLE | A6 ADJUSTABLE BRACKET |
| CONTACT POINT ACTION TYPE | PLUNGER |
| CONTACT POINT STYLE DESIGNATOR | 1 REGULAR |
| BEARING TYPE | JEWEL |
| CUSHIONED MOVEMENT FEATURE | NOT INCLUDED |
| LIFTING LEVER | NOT INCLUDED |
| TELL-TALE HAND | INCLUDED |
Restrictions/Controls & Freight Information | NSN 5210-00-063-5390
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 121570 | GAGES AIR LIQUID LEVEL PRESSURE |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 72B | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5210-00-063-5390
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
