Product Details | DIAL INDICATOR
5210-00-068-3526 A mechanism for amplifying and measuring the displacement of a movable contact point, thereby measuring a dimension or variation from a standard dimension. It consists essentially of a case with means for mounting the indicator, a spindle carrying the contact point, an amplifying mechanism, a pointer and a graduated dial. May include accessories and/or attachments. Excludes INDICATOR, SCALE. See also GAGE, DEPTH, DIAL INDICATING.
Part Alternates: 196MA, 5210-00-068-3526, 00-068-3526, 5210000683526, 000683526
Measuring Tools | Measuring Tools, Craftsmen's
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 52 | 01 JAN 1961 | 00-068-3526 | 06275 ( INDICATOR, DIAL ) |
Drawings & Photos | NSN 5210-00-068-3526
Cross Reference | NSN 5210-00-068-3526
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 196MA | 57163 | L.S. STARRETT COMPANY, THE DBA COORDINATE MEASURING MACHINE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5210-00-068-3526
Technical Data | NSN 5210-00-068-3526
| Characteristic | Specifications |
|---|---|
| MEASUREMENT CAPACITY | 5.000 MILLIMETERS |
| GRADUATION UNIT | 0.01000 MILLIMETERS |
| DIAL MARKING | 0-100 |
| OVERALL DIAMETER | 1.500 INCHES NOMINAL |
| DIAL SETTING TYPE | ADJUSTABLE |
| CONTACT POINT LOCATION | BACK |
| MOUNTING STYLE | A5 UNIVERSAL ADJUSTABLE DIAL |
| CONTACT POINT ACTION TYPE | PLUNGER |

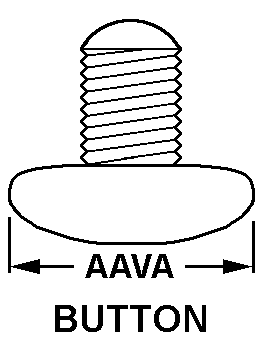

| CONTACT POINT STYLE DESIGNATOR | 9 BUTTON |
| CUSHIONED MOVEMENT FEATURE | NOT INCLUDED |
| LIFTING LEVER | NOT INCLUDED |
| TELL-TALE HAND | NOT INCLUDED |
| ACCESSORY COMPONENTS AND QUANTITY | HOLE INDICATING ATTACHMENT,INDICATOR ATTACHMENT,TOOL POST HOLDER,SCRIBER SNUG ASSY,POINT ADAPTER |
