Product Details | THICKNESS GAGE
5210-00-274-2857 One or more tempered steel blades (leaves) ground to and marked with their respective thickness and mounted in a holder or encased within a frame or case into which the leaves fold. It is used for checking narrow slots or gaging the clearance between fitted parts. Excludes BLADE, THICKNESS GAGE. See also GAGE, GAP SETTING.
Part Alternates: GGGG17, GGG-G-17, GGG-G-17 TY8CL1STA, GGGG17TY8CL1STA, T720N, T-720N, Y139, 126, 5026, 66, 7902239, 5210-00-274-2857, 00-274-2857, 5210002742857, 002742857
Measuring Tools | Measuring Tools, Craftsmen's
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 52 | 01 JAN 1963 | 00-274-2857 | 05977 ( GAGE, THICKNESS ) |

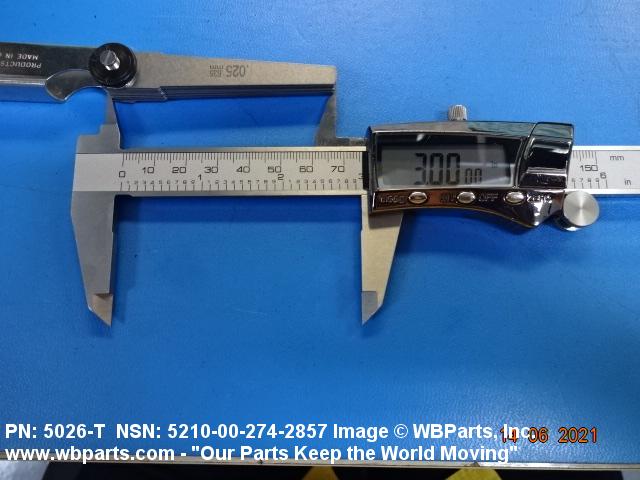

Drawings & Photos | NSN 5210-00-274-2857
Demand History | NSN 5210-00-274-2857
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| GGGG17 | 2022-02-04 | 72 | TR |
| 5210-00-274-2857 | 2020-11-24 | 20 | United States |
| 5210-00-274-2857 | 2020-07-06 | 1 | US |
| 5210-00-274-2857 | 2020-07-01 | 1 | United States |
| T720N | 2020-06-09 | 2 | United States |
| GGG-G-17 | 2018-12-10 | 1 | |
| 5210002742857 | 2018-03-08 | 100 | US |
| 5210-00-274-2857 | 2017-02-07 | 2 | TW |
Cross Reference | NSN 5210-00-274-2857
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 126 | 37163 | COOPER INDUSTRIES INC LUFKIN/COOPER TOOLS DIV |
| 5026 | 08871 | PRODUCTS ENGINEERING CORPORATION |
| 5026 | 18056 | DOALL BALTIMORE COMPANY |
| 66 | 57163 | L.S. STARRETT COMPANY, THE DBA COORDINATE MEASURING MACHINE |
| 7902239 | 19200 | US ARMY ARDEC RDECOM |
| GGG-G-17 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| GGG-G-17 TY8CL1STA | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
| T-720N | 27596 | JONARD INDUSTRIES CORP DBA JIC TOOLS |
| Y139 | 15387 | TECHNITROL INC. DBA PULSE DIV MILITARY/AEROSPACE |
| Y139 | 90095 | PULSE ELECTRONICS CORPORATION DBA PULSE COMPONENTS DIVISION |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5210-00-274-2857
5210-00-274-2860, 5210-00-274-2861, 5210-00-274-2865, 5210-00-274-5402, 5210-00-274-5403
Technical Data | NSN 5210-00-274-2857
| Characteristic | Specifications |
|---|---|
| BLADE GROUP QUANTITY | 1 |
| MEASUREMENT SYSTEM | ENGLISH |
| BLADE SHAPE | STRAIGHT |
| BLADE QUANTITY | 26 |
| BLADE LENGTH | 3.000 INCHES NOMINAL |
| BLADE TIP WIDTH | 0.500 INCHES NOMINAL |
| BLADE THICKNESS | 0.0015 INCHES 0.0020 INCHES 0.0025 INCHES 0.0030 INCHES 0.0040 INCHES 0.0050 INCHES 0.0060 INCHES 0.0070 INCHES 0.0080 INCHES 0.0090 INCHES 0.0100 INCHES 0.0110 INCHES 0.0120 INCHES 0.0130 INCHES 0.0140 INCHES 0.0150 INCHES 0.0160 INCHES 0.0170 INCHES 0.0180 INCHES 0.0190 INCHES 0.0200 INCHES 0.0210 INCHES 0.0220 INCHES 0.0230 INCHES 0.0240 INCHES 0.0250 INCHES |
| BLADE LOCK | INCLUDED |
Restrictions/Controls & Freight Information | NSN 5210-00-274-2857
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 197337 | WHEELS COG/GEAR/PINION/SPROCK |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
