NSN 5210-00-377-6525 AA2348, A-A-2348, A-A-2348 TYBST3
Product Details | DIAL INDICATOR
5210-00-377-6525 A mechanism for amplifying and measuring the displacement of a movable contact point, thereby measuring a dimension or variation from a standard dimension. It consists essentially of a case with means for mounting the indicator, a spindle carrying the contact point, an amplifying mechanism, a pointer and a graduated dial. May include accessories and/or attachments. Excludes INDICATOR, SCALE. See also GAGE, DEPTH, DIAL INDICATING.
Part Alternates: AA2348, A-A-2348, A-A-2348 TYBST3, AA2348TYBST3, MILI18422, MIL-I-18422, MIL-I-18422 TY3STB, MILI18422TY3STB, 399A, 5210-00-377-6525, 00-377-6525, 5210003776525, 003776525
Measuring Tools | Measuring Tools, Craftsmen's
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 52 | 01 JAN 1963 | 00-377-6525 | 06275 ( INDICATOR, DIAL ) |

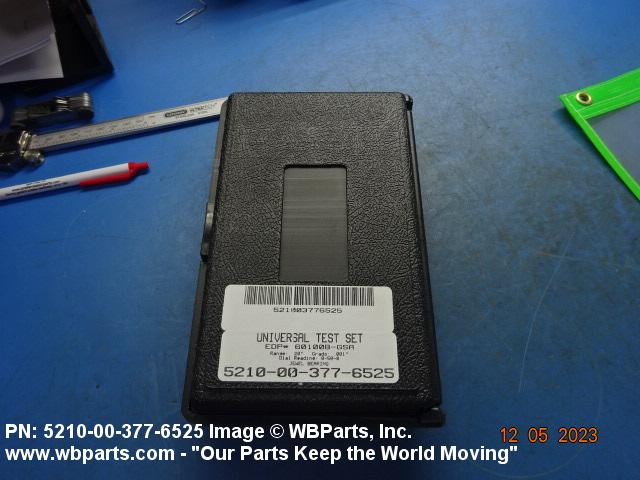

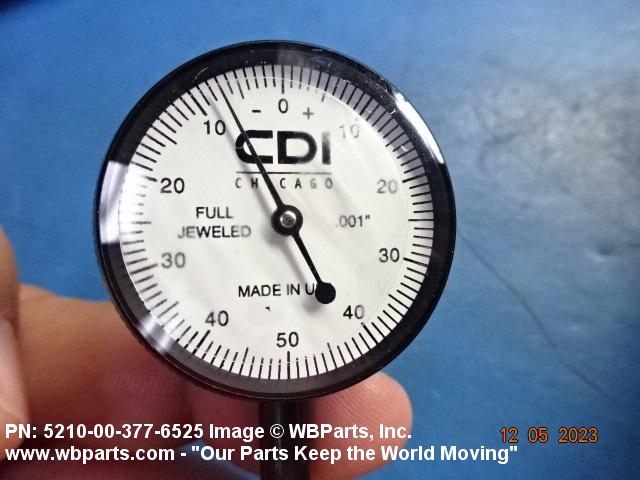

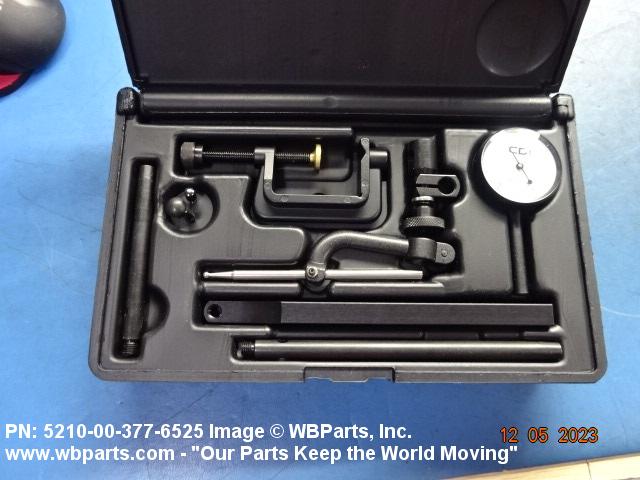

Drawings & Photos | NSN 5210-00-377-6525
Demand History | NSN 5210-00-377-6525
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5210-00-377-6525 | 2025-02-37 | 4 | United States |
| 5210-00-377-6525 | 2025-02-37 | 4 | United States |
| 5210-00-377-6525 | 2023-11-313 | 1 | United States |
| 5210-00-377-6525 | 2023-04-97 | 1 | US |
| 5210-00-377-6525 | 2023-03-88 | 1 | United States |
| 5210-00-377-6525 | 2022-08-213 | 1 | United States |
| 399A | 2021-10-286 | 1 | US |
| 5210-00-377-6525 | 2012-09-270 | 1 | MANUAL |
Cross Reference | NSN 5210-00-377-6525
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 399A | 37163 | COOPER INDUSTRIES INC LUFKIN/COOPER TOOLS DIV |
| 399A | 65LN0 | APEX TOOL GROUP, LLC |
| A-A-2348 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| A-A-2348 TYBST3 | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
| MIL-I-18422 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-I-18422 TY3STB | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5210-00-377-6525
Technical Data | NSN 5210-00-377-6525
| Characteristic | Specifications |
|---|---|
| MEASUREMENT CAPACITY | 0.200 INCHES |
| GRADUATION UNIT | 0.00100 INCHES |
| DIAL MARKING | 0-50-0 |
| OVERALL DIAMETER | 2.188 INCHES NOMINAL |
| DIAL SETTING TYPE | ADJUSTABLE |
| CONTACT POINT LOCATION | BACK |
| MOUNTING STYLE | A5 UNIVERSAL ADJUSTABLE DIAL |
| CONTACT POINT ACTION TYPE | PLUNGER |
| BEARING TYPE | JEWEL |
| CUSHIONED MOVEMENT FEATURE | NOT INCLUDED |
| LIFTING LEVER | NOT INCLUDED |
| TELL-TALE HAND | NOT INCLUDED |

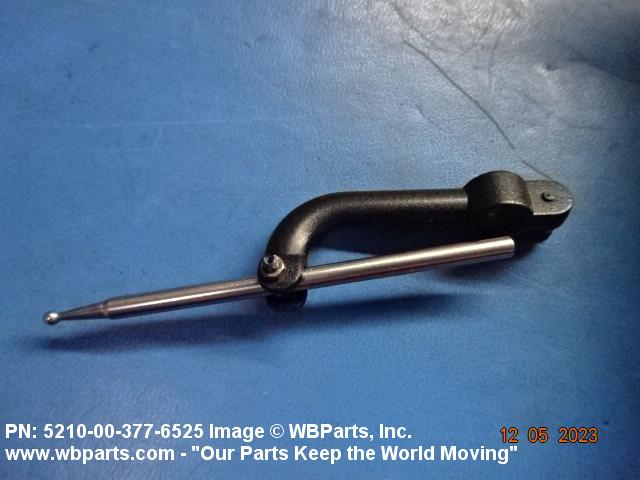

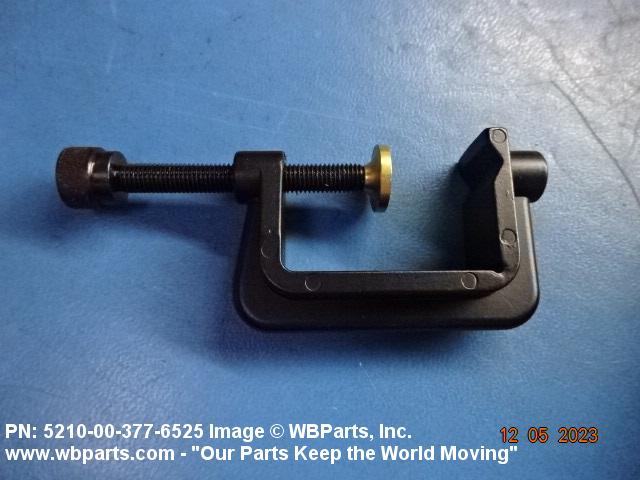

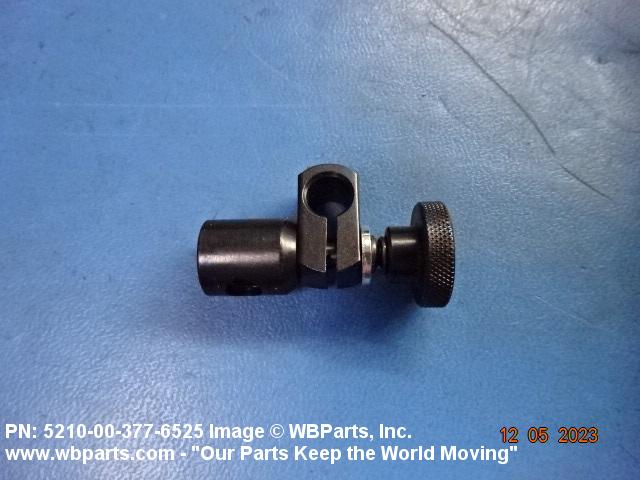

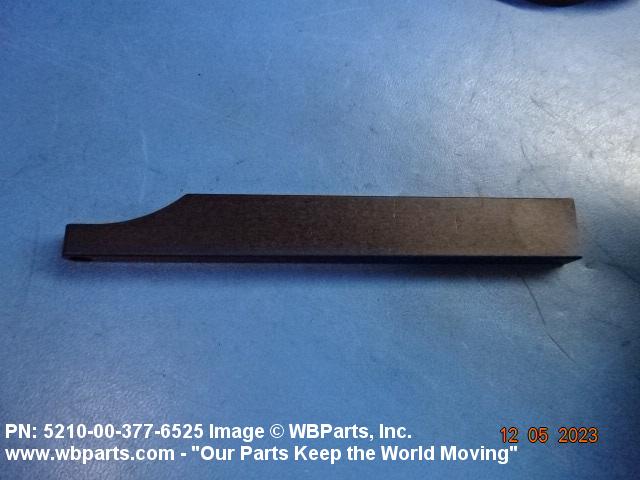

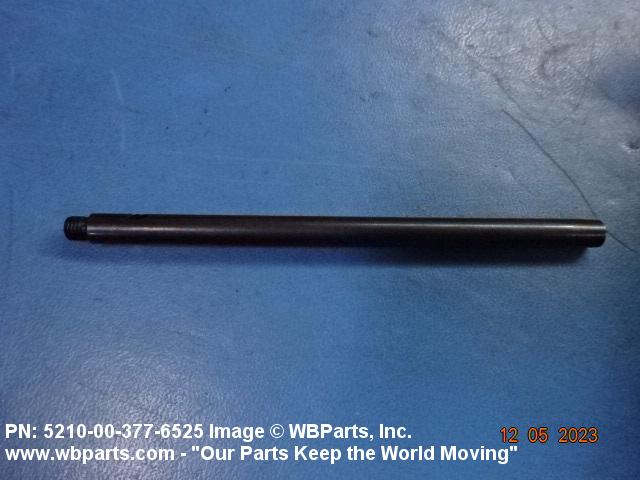

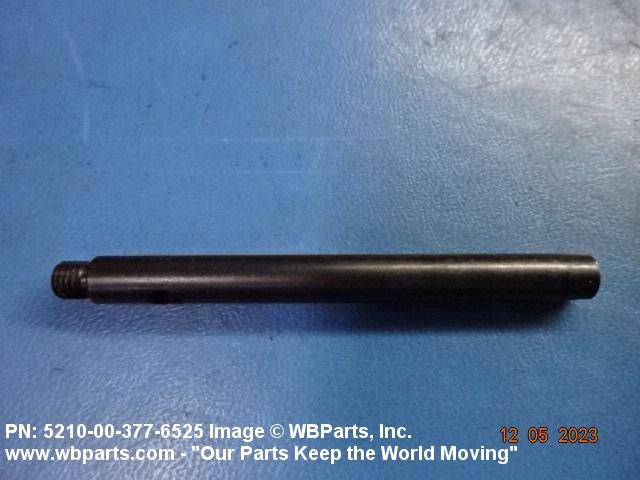

| ACCESSORY COMPONENTS AND QUANTITY | BASE W/UPRIGHT POST,CLAMP ATTACHMENT,HOLE INDICATING ATTACHMENT,TOOL POST HOLDER |
| NONDEFINITIVE SPEC/STD DATA | B TYPE AND 3 STYLE |
| MANUFACTURERS CODE | 58536 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | A-A-2348 |
Restrictions/Controls & Freight Information | NSN 5210-00-377-6525
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
