NSN 5210-01-260-9549 AA2348, A-A-2348, A-A-2348 TYCST3
Product Details | DIAL INDICATOR
5210-01-260-9549 A mechanism for amplifying and measuring the displacement of a movable contact point, thereby measuring a dimension or variation from a standard dimension. It consists essentially of a case with means for mounting the indicator, a spindle carrying the contact point, an amplifying mechanism, a pointer and a graduated dial. May include accessories and/or attachments. Excludes INDICATOR, SCALE. See also GAGE, DEPTH, DIAL INDICATING.
Part Alternates: AA2348, A-A-2348, A-A-2348 TYCST3, AA2348TYCST3, MILI18422, MIL-I-18422, MIL-I-18422TYPE3STYLE C 0-15-0, MILI18422TYPE3STYLEC0150, 711FSAZ, 5210-01-260-9549, 01-260-9549, 5210012609549, 012609549
Measuring Tools | Measuring Tools, Craftsmen's
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 52 | 07 AUG 1987 | 01-260-9549 | 06275 ( INDICATOR, DIAL ) |
Drawings & Photos | NSN 5210-01-260-9549
Demand History | NSN 5210-01-260-9549
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5210-01-260-9549 | 2018-10-303 | 5 | US |
Cross Reference | NSN 5210-01-260-9549
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 711FSAZ | 57163 | L.S. STARRETT COMPANY, THE DBA COORDINATE MEASURING MACHINE |
| A-A-2348 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| A-A-2348 TYCST3 | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
| MIL-I-18422 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-I-18422TYPE3STYLE C 0-15-0 | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5210-01-260-9549
Technical Data | NSN 5210-01-260-9549
| Characteristic | Specifications |
|---|---|
| MEASUREMENT CAPACITY | 0.030 INCHES |
| GRADUATION UNIT | 0.00100 INCHES |
| DIAL MARKING | 0-15-0/.001 |
| OVERALL DIAMETER | 0.938 INCHES NOMINAL |
| DIAL SETTING TYPE | ADJUSTABLE |
| CONTACT POINT LOCATION | EXTENSION ARM END |

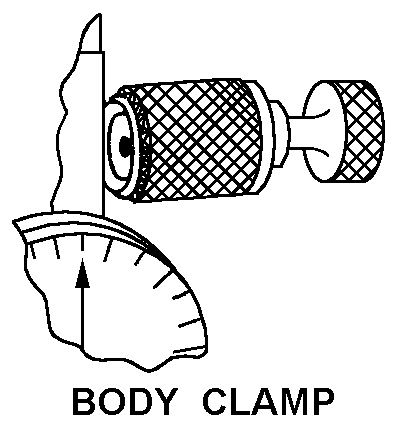

| MOUNTING STYLE | A8 BODY CLAMP |
| CONTACT POINT ACTION TYPE | SWIVEL |
| CONTACT POINT STYLE DESIGNATOR | 2 BALL |
| POINT LENGTH | 0.375 INCHES NOMINAL |
| BEARING TYPE | JEWEL |
| CUSHIONED MOVEMENT FEATURE | NOT INCLUDED |
| LIFTING LEVER | INCLUDED |
| TELL-TALE HAND | NOT INCLUDED |
| ACCESSORY COMPONENTS AND QUANTITY | UNIVERSAL SHANK,1; CASE 1 |
| SPECIFICATION/STANDARD DATA | 81349-MIL-I-18422/CANCELED/ GOVERNMENT SPECIFICATION |
| NONDEFINITIVE SPEC/STD DATA | C TYPE AND 3 STYLE |
| III FUNCTIONAL DESCRIPTION | UNIVERSAL SHOP APPL U/W MACHINE TOOLS |
| III TYPE/MODEL DESIGNATION | 711FS |
| III RELATIONSHIP TO SIMILAR EQUIPMENT | SIMILAR TO NSN 5210-00-223-9648 |
| III REFERENCE DATA AND LITERATURE | CML ITEM DESCRIPTION A-A-2348 AND MIL-I-18422,FIG. 5 AND 6/CANCELED/ |
| MANUFACTURERS CODE | 58536 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | A-A-2348 |
