NSN 5220-00-394-5074 HSP1401, 00-394-5074, 003945074
Product Details | PLAIN CYLINDRICAL PLUG GAGE
5220-00-394-5074 A gage used for the dimensional control of the diameter of a specified hole. It consists of a gaging member or members and handle.
Part Alternates: HSP1401, 5220-00-394-5074, 00-394-5074, 5220003945074, 003945074
Measuring Tools | Inspection Gages and Precision Layout Tools
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 52 | 01 JAN 1963 | 00-394-5074 | 15347 ( GAGE, PLUG, PLAIN CYLINDRICAL ) |

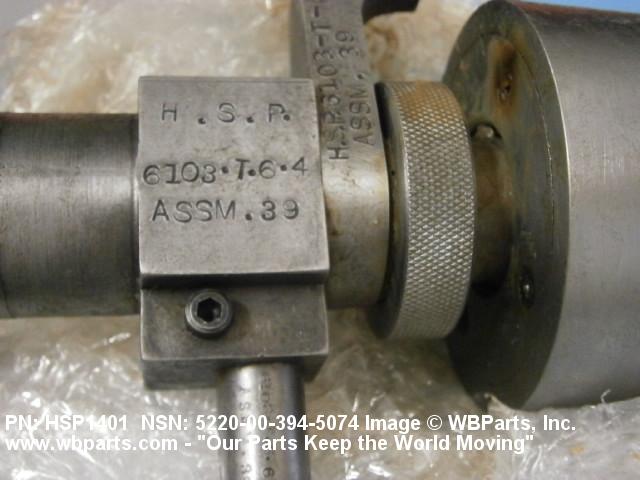

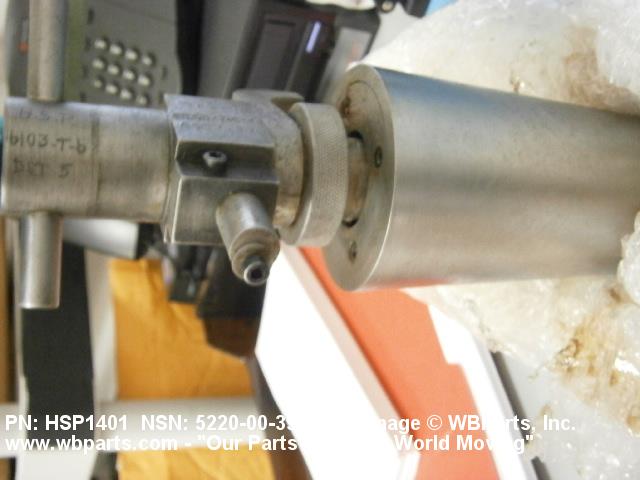

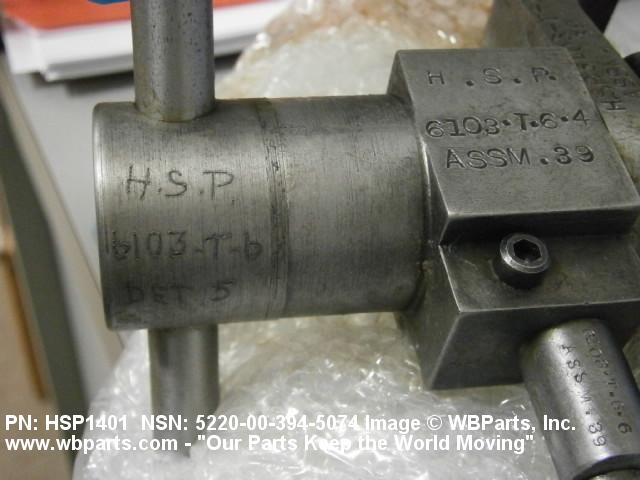

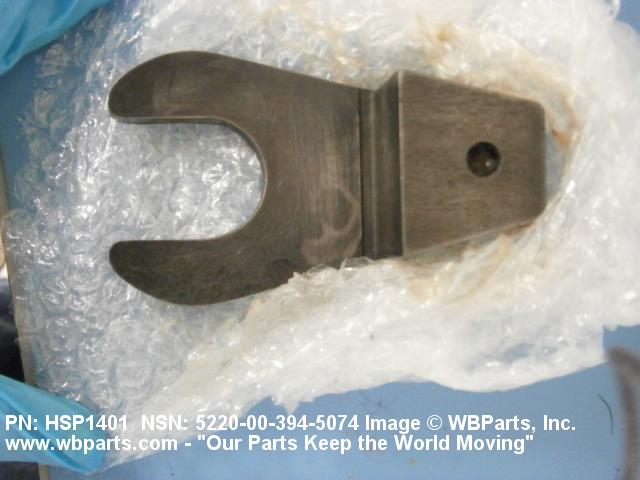

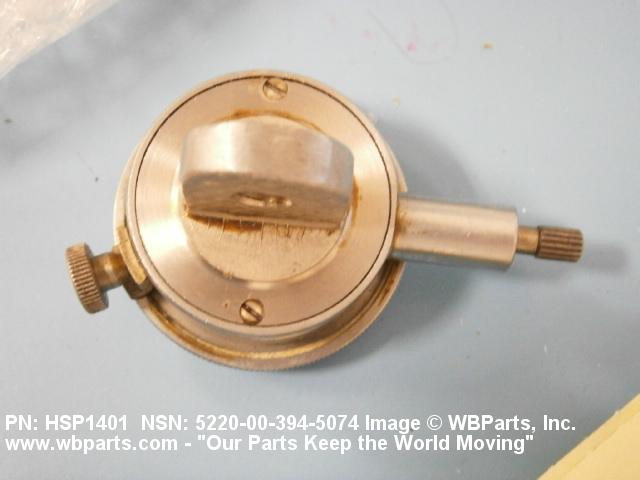

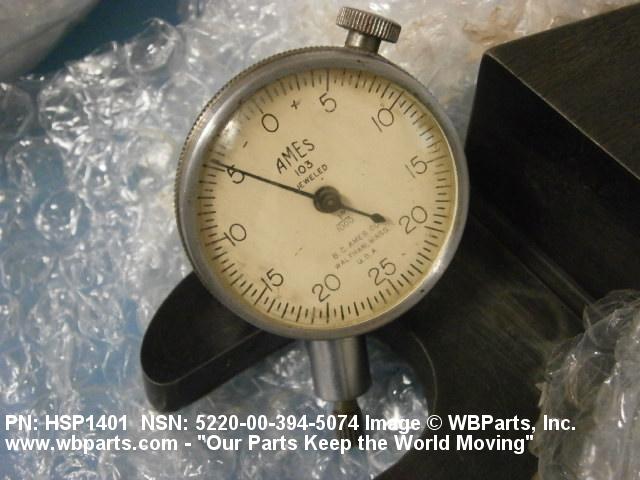

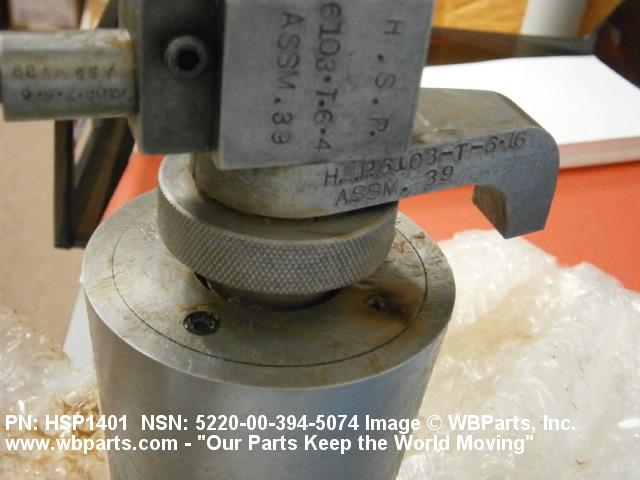

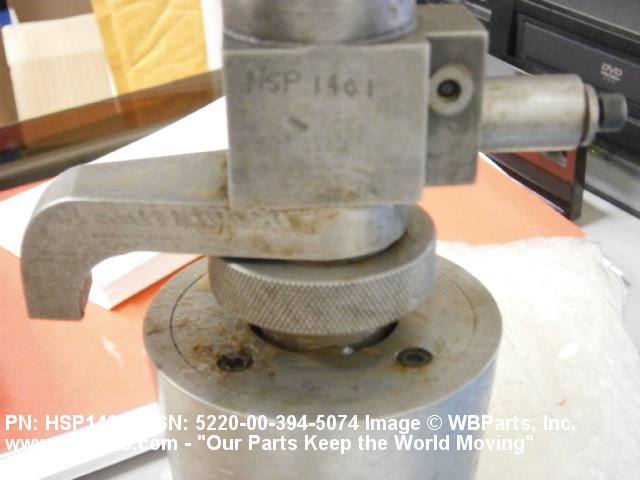

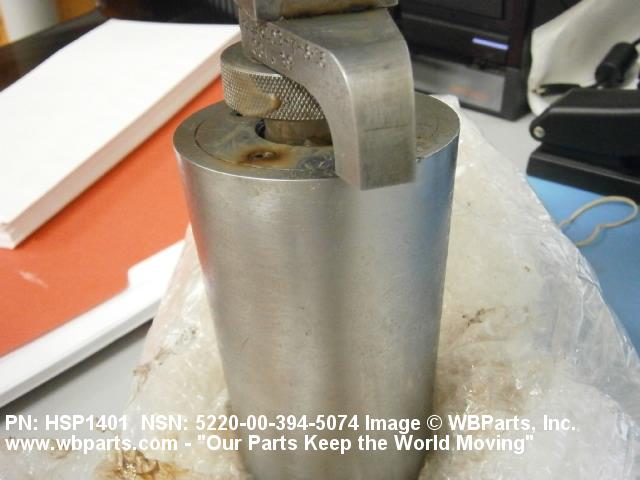

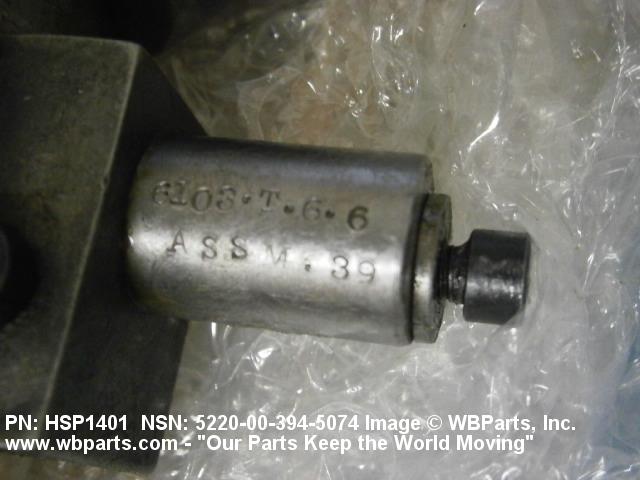

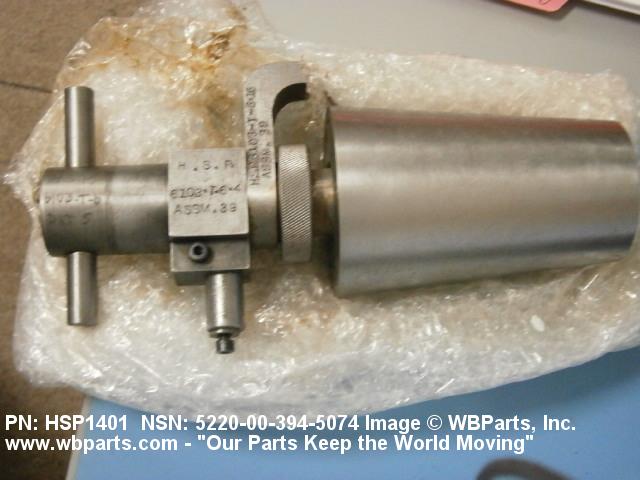

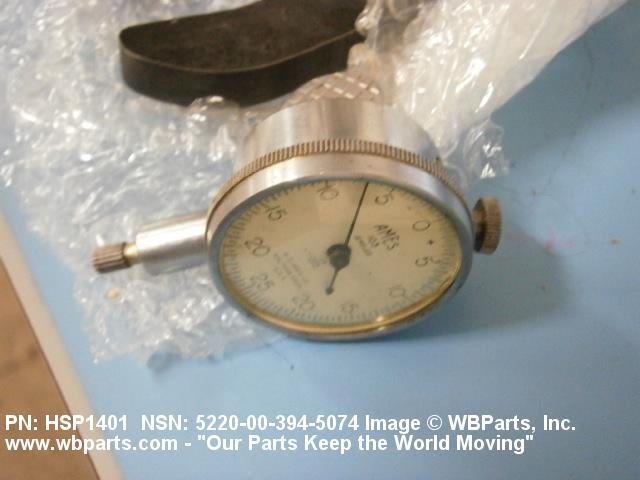

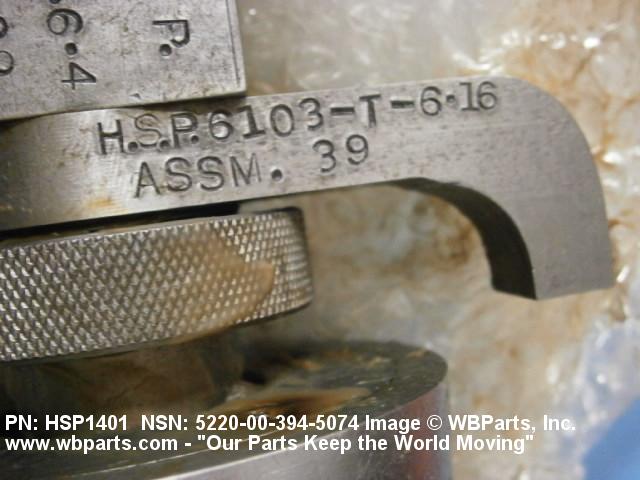

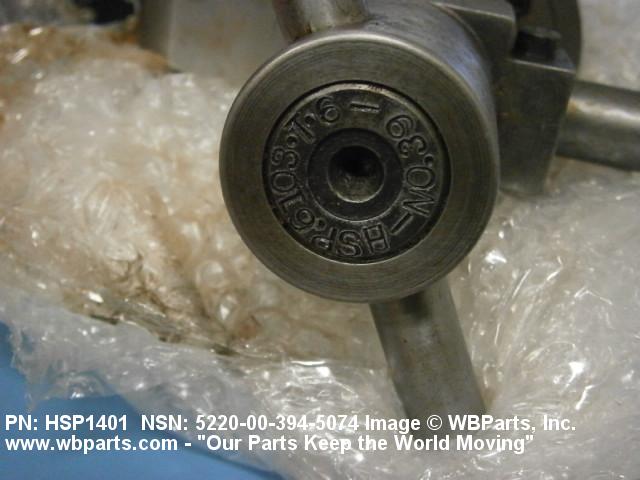

Drawings & Photos | NSN 5220-00-394-5074
Demand History | NSN 5220-00-394-5074
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| HSP1401 | 2011-10-289 | 1 | New Zealand |
Cross Reference | NSN 5220-00-394-5074
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HSP1401 | 73030 | HAMILTON SUNDSTRAND CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5220-00-394-5074
Technical Data | NSN 5220-00-394-5074
| Characteristic | Specifications |
|---|---|
| SPECIAL FEATURES | GAGE,PLUG BLADE TAP |
| III END ITEM IDENTIFICATION | 43E60 SERIES PROPELLERS; TO 3H1-13-4; TO NAME: GAGE, TAPER PLUG |
Restrictions/Controls & Freight Information | NSN 5220-00-394-5074
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
