NSN 5220-00-406-9619 601-189210, 00-406-9619, 601189210
Product Details | THREAD PLUG GAGING MEMBER
5220-00-406-9619 An accurately finished element of a gage which is used for the dimensional control of a specified internal thread.
Part Alternates: 601-189210, 5220-00-406-9619, 00-406-9619, 5220004069619, 601189210, 004069619
Measuring Tools | Inspection Gages and Precision Layout Tools
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 52 | 24 APR 1970 | 00-406-9619 | 17656 ( GAGING MEMBER, PLUG, THREAD ) |
Drawings & Photos | NSN 5220-00-406-9619
Cross Reference | NSN 5220-00-406-9619
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 601-189210 | 18056 | DOALL BALTIMORE COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5220-00-406-9619
Technical Data | NSN 5220-00-406-9619
| Characteristic | Specifications |
|---|---|

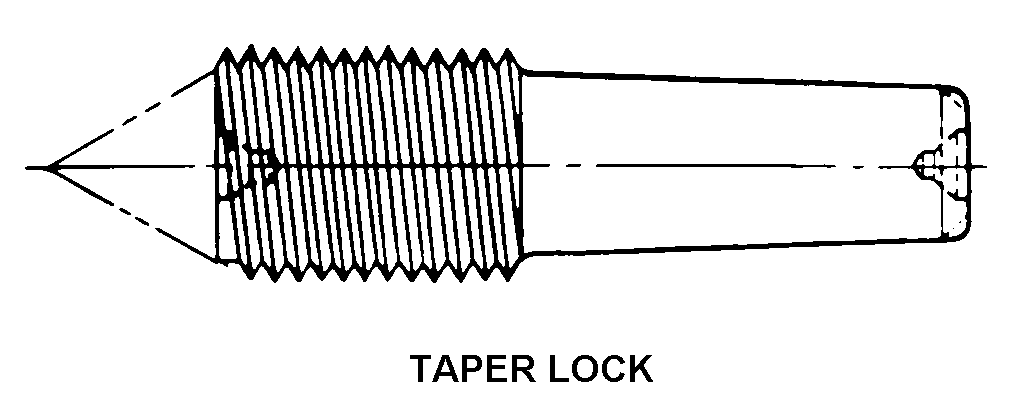

| STYLE DESIGNATOR | B3 TAPER LOCK |
| GAGE TYPE | GO |
| NOMINAL THREAD DIAMETER | 1.2500 INCHES |
| THREAD TYPE | SINGLE |
| SCREW THREAD QUANTITY PER INCH | 18.0 |
| SCREW THREAD SERIES DESIGNATOR | UNEF |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD STAMPED PITCH DIAMETER | 1.2139 INCHES NOMINAL |
| THREAD DESIGN PITCH DIAMETER | 1.2139 INCHES NOMINAL |
| PITCH DIAMETER TOLERANCE | -0.00000 TO 0.00030 INCHES |
| TAPERED THREADS | NOT INCLUDED |
| THREAD MAJOR DIAMETER TRUNCATION FEATURE | NOT INCLUDED |
| MANUFACTURERS CODE | 18056 |
| DESIGN CONTROL REFERENCE | 601-189210 |
Restrictions/Controls & Freight Information | NSN 5220-00-406-9619
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
