Product Details | PLAIN ADJUSTABLE SNAP GAGE
5220-00-930-1851 A gage used for the control of specified external dimensions. It consists of a frame and gaging members such as buttons, pins, blades and anvil. The gaging members may be set and locked to specified maximum and minimum limits within the given size range of the gage.
Part Alternates: 49339301851 , 7799781, 5220-00-930-1851, 00-930-1851, 5220009301851, 009301851
Measuring Tools | Inspection Gages and Precision Layout Tools
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 52 | 27 APR 1966 | 00-930-1851 | 15350 ( GAGE, SNAP, PLAIN ADJUSTABLE ) |
Drawings & Photos | NSN 5220-00-930-1851
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5220-00-930-1851
Related Products | NSN 5220-00-930-1851
Technical Data | NSN 5220-00-930-1851
| Characteristic | Specifications |
|---|---|

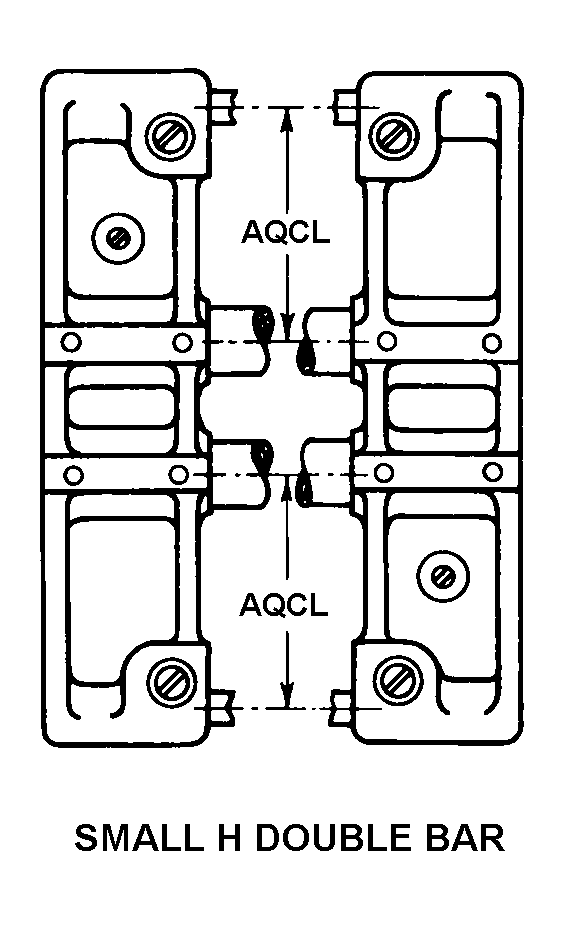

| STYLE DESIGNATOR | D7 SMALL H DOUBLE BAR |
| GAGING RANGE | 2.296 TO 2.302 INCHES |
| THROAT DEPTH | 1.000 INCHES NOMINAL |
| GAGING MEMBER NAME AND STYLE NUMBER | 2 BLADE |
| GAGING MEMBER QUANTITY | 2 |
| SPECIAL FEATURES | USED ON MG .50 CAL,RECEIVE ASSY W/O BREECH LOCK CAM; MEASURES WIDTH OVER REAR MOUNTING LUGS - USES 4 SOCKET HD SCREWS 1/4-28NF-2X3/4 LG |
| MANUFACTURERS CODE | 19205 |
| DESIGN CONTROL REFERENCE | 7799781 |
Restrictions/Controls & Freight Information | NSN 5220-00-930-1851
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | M | HANDTOOLS AND SHOP EQUIPMENT |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | BF | U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5220-00-930-1851
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | M | Ammunition weapons, and tracked combat vehicles weapons, special weapons, chemical and fire control materiel |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | H | Individual and Crew-Served Weapons |
| Weapons Systems/End Item or Homogeneous Group | HH | Machine Gun, Caliber .50 M2 Series w/Tripod M3 and Mount M63 |
| Accounting Requirements Code | D | Durable item. An item of Army property coded with an ARC of "D" in the AMDF. Durable items do not require property book accountability after issue from the stock record account, but do require hand receipt control when issued to the user. Commercial and fabricated items similar to items coded ?D?in the AMDF are considered durable items. |
| Source of Supply | B14 | US Army Armament and Chemical Acquisition and Logistics Activity ATTN: AMSTA-AC Rock Island, IL 61299-6000 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | M | RESTRICTED REQUISITIONS-MAJOR OVERHAUL (Service/Agency use only.) # Items (Assemblies and/or component parts) which for lack of specialized tools, test equipment, etc., can be used only by major overhaul activities. Base, post, camp or station activities will not requisition unless authorized to perform major overhaul function. |
| Controlled Item Code | M | HANDTOOLS AND SHOP EQUIPMENT |
| Shelf Life Code | 0 | Nondeteriorative |
