NSN 5220-00-981-7010 ST715, 11600065, 00-981-7010
Product Details | PLAIN CYLINDRICAL PLUG GAGING MEMBER
5220-00-981-7010 An accurately finished element of a gage which is used for the dimensional control of the diameter of a specified hole.
Part Alternates: ST715, 11600065, 5220-00-981-7010, 00-981-7010, 5220009817010, 009817010
Measuring Tools | Inspection Gages and Precision Layout Tools
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 52 | 01 JAN 1962 | 00-981-7010 | 15348 ( GAGING MEMBER, PLUG, PLAIN CYLINDRICAL ) |
Drawings & Photos | NSN 5220-00-981-7010
Demand History | NSN 5220-00-981-7010
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5220-00-981-7010 | 2012-09-272 | 1 | DIBBS |
| 5220-00-981-7010 | 2012-08-214 | 1 | DIBBS |
| 5220-00-981-7010 | 2011-01-16 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5220-00-981-7010
Related Products | NSN 5220-00-981-7010
Technical Data | NSN 5220-00-981-7010
| Characteristic | Specifications |
|---|---|

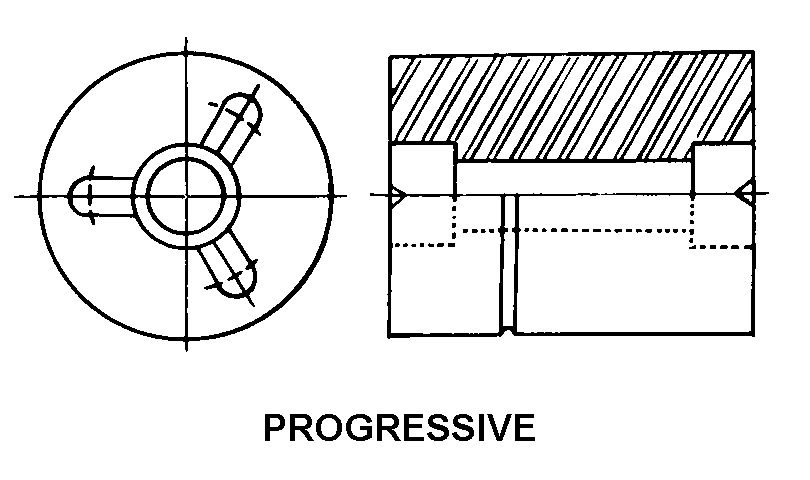

| STYLE DESIGNATOR | C2 PROGRESSIVE |
| GAGE TYPE | COMBINATION PROGRESSIVE GO NOT GO |
| GAGING MEMBER OUTSIDE DIAMETER | 1.7510 INCHES AND 1.7515 INCHES |
| GAGING MEMBER OUTSIDE DIAMETER TOLERANCE | -0.0000 TO 0.0005 INCHES |
| MANUFACTURERS CODE | 15434 |
| DESIGN CONTROL REFERENCE | ST715 |
Restrictions/Controls & Freight Information | NSN 5220-00-981-7010
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
