NSN 5220-01-330-3380 16A11843L11, 16A11843L1-1, 01-330-3380
Product Details | PLUG COUNTERSINK GAGE
5220-01-330-3380 A gage used to compare the depth and/or diameter of the countersink on a hole to a known size by insertion of the gage in the hole.
Part Alternates: 16A11843L11, 16A11843L1-1, 5220-01-330-3380, 01-330-3380, 5220013303380, 013303380
Measuring Tools | Inspection Gages and Precision Layout Tools
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 52 | 01 DEC 1990 | 01-330-3380 | 36335 ( GAGE, PLUG COUNTERSINK ) |
Drawings & Photos | NSN 5220-01-330-3380
Cross Reference | NSN 5220-01-330-3380
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 16A11843L1-1 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5220-01-330-3380
Related Products | NSN 5220-01-330-3380
Technical Data | NSN 5220-01-330-3380
| Characteristic | Specifications |
|---|---|

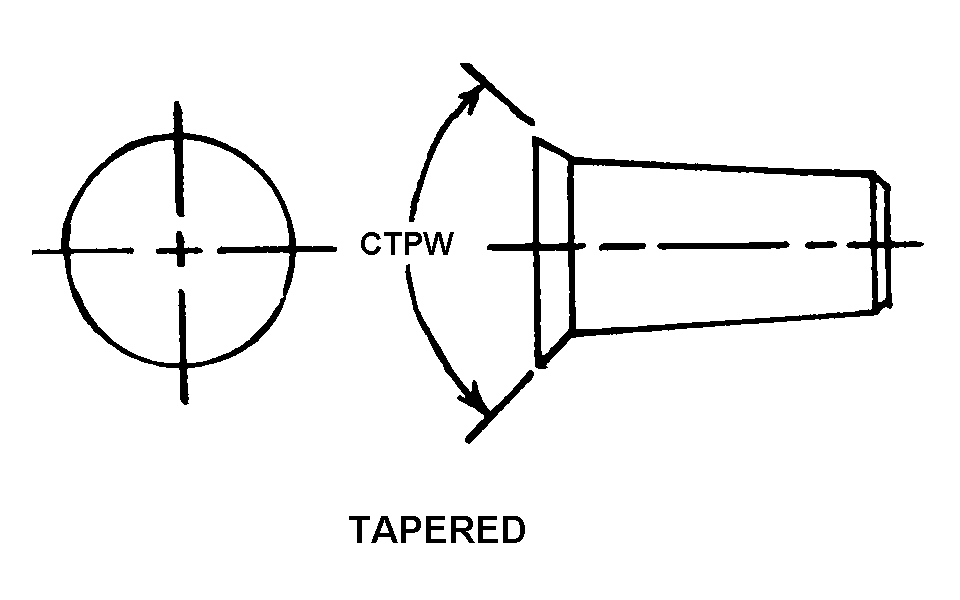

| STYLE DESIGNATOR | C20 TAPERED |
| SPECIAL FEATURES | ITEM IS USED TO SET THE STOP ON THE CUTTER USED TO DRILL THE HOLE FOR THE 16W190-23 INSERT;SERD NO.11843 |
| III END ITEM IDENTIFICATION | F-16 PYLON INSERT-TA 791 |
| MANUFACTURERS CODE | 81755 |
| DESIGN CONTROL REFERENCE | 16A11843L1-1 |
Restrictions/Controls & Freight Information | NSN 5220-01-330-3380
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 121570 | GAGES AIR LIQUID LEVEL PRESSURE |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | SU | Ogden Air Logistics Center Hill AFB, UT 84056-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
