NSN 5220-01-518-0552 EB2G11006, EB2G1100-6, 01-518-0552
Product Details | PROFILE GAGE
5220-01-518-0552 A gage used to check or inspect contour, radius, chamfer, depth, thickness and/or height by inclusive fit of a work piece.
Part Alternates: EB2G11006, EB2G1100-6, 5220-01-518-0552, 01-518-0552, 5220015180552, 015180552
Measuring Tools | Inspection Gages and Precision Layout Tools
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 52 | 01 MAR 2004 | 01-518-0552 | 38474 ( GAGE, PROFILE ) |

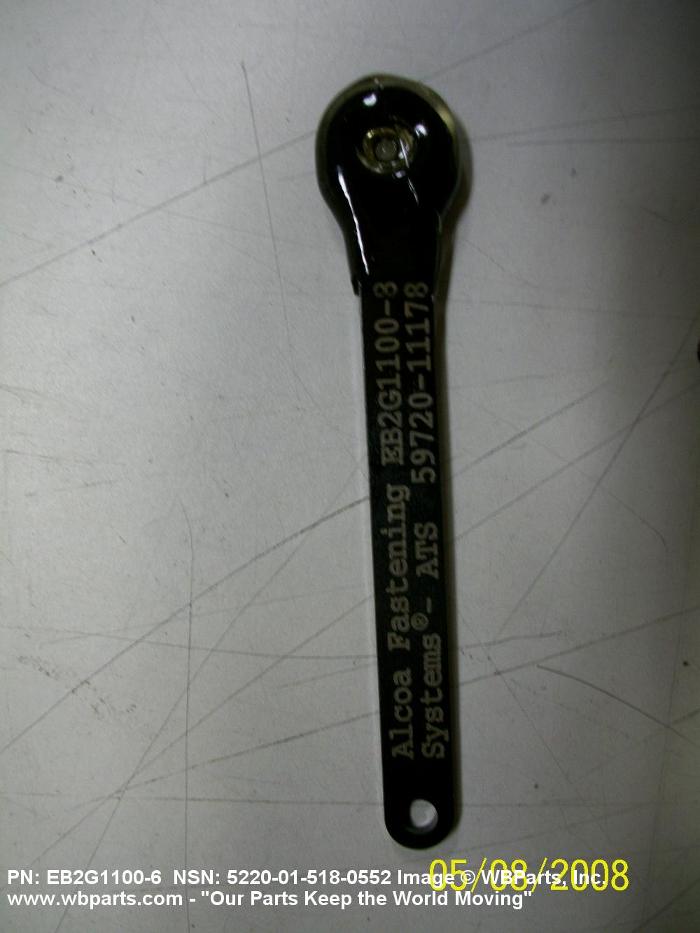

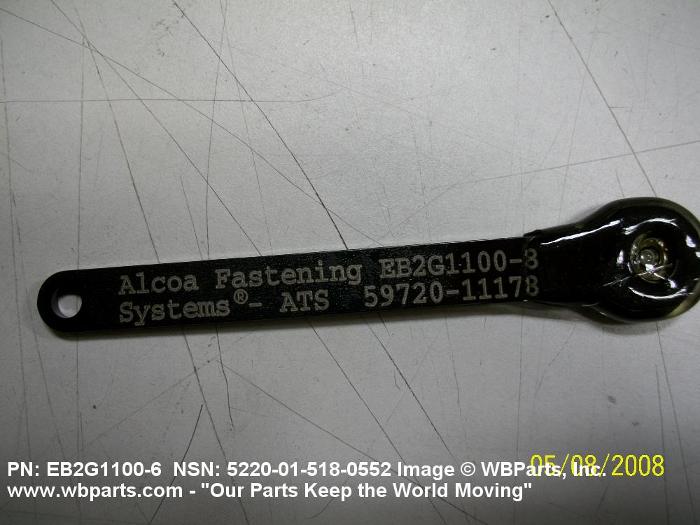

Drawings & Photos | NSN 5220-01-518-0552
Demand History | NSN 5220-01-518-0552
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5220-01-518-0552 | 2022-08-228 | 3 | US |
| EB2G11006 | 2011-06-180 | 1 | United States |
| EB2G11006 | 2011-06-180 | 1 | United States |
Cross Reference | NSN 5220-01-518-0552
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| EB2G1100-6 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5220-01-518-0552
Technical Data | NSN 5220-01-518-0552
| Characteristic | Specifications |
|---|---|
| DESIGN TYPE | SINGLE END |
| GAGE TYPE | LIMIT |
| LENGTH | 4.000 INCHES |
| THICKNESS | 0.125 INCHES |
| SPECIAL FEATURES | ORIG MFG NAME;EDDIE-BOLT 2 GAGE; NUT INSTALLATION GAGE; FLAT TYPE |
Restrictions/Controls & Freight Information | NSN 5220-01-518-0552
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
