NSN 5305-00-001-6671 NAS122106E2, NAS1221-06E2, 00-001-6671
Product Details | MACHINE SCREW
5305-00-001-6671 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: NAS122106E2, NAS1221-06E2, 5305-00-001-6671, 00-001-6671, 5305000016671, 000016671
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 04 OCT 1972 | 00-001-6671 | 06657 ( SCREW, MACHINE ) |

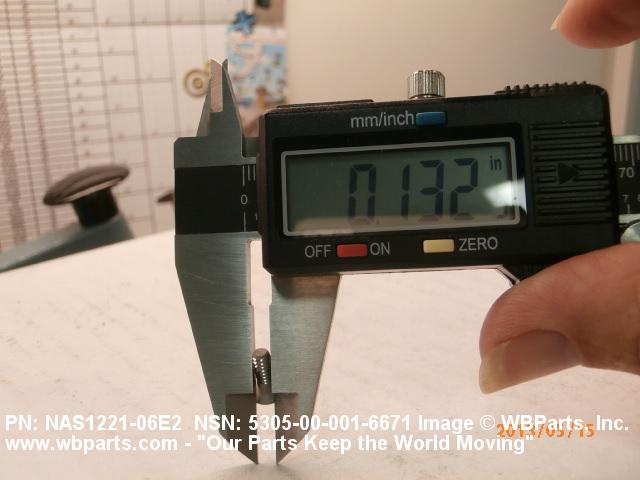

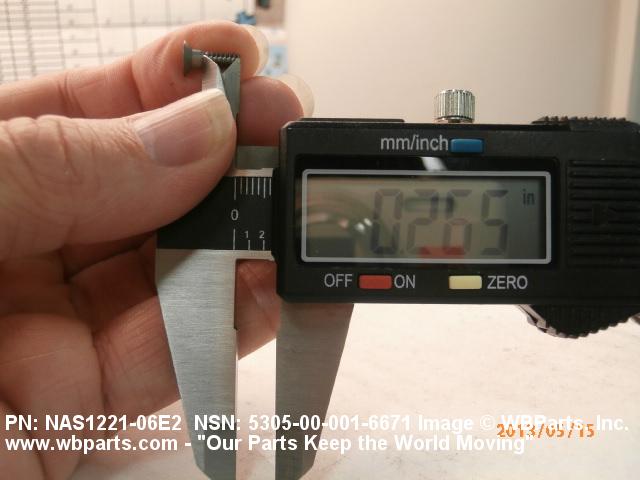

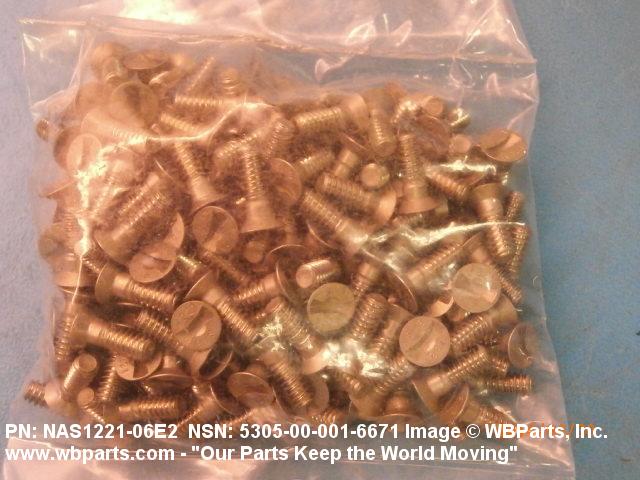

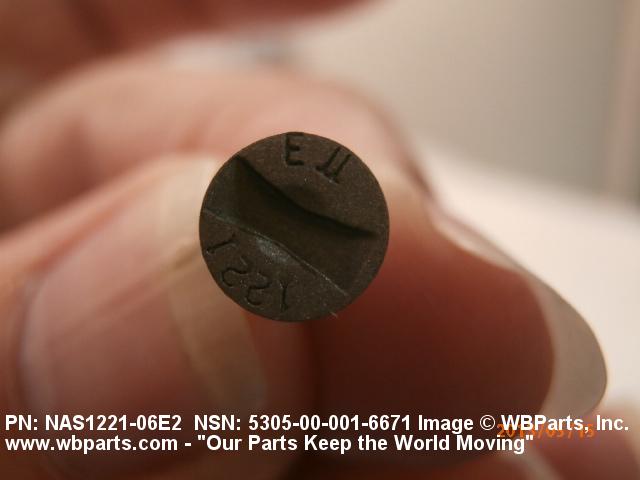

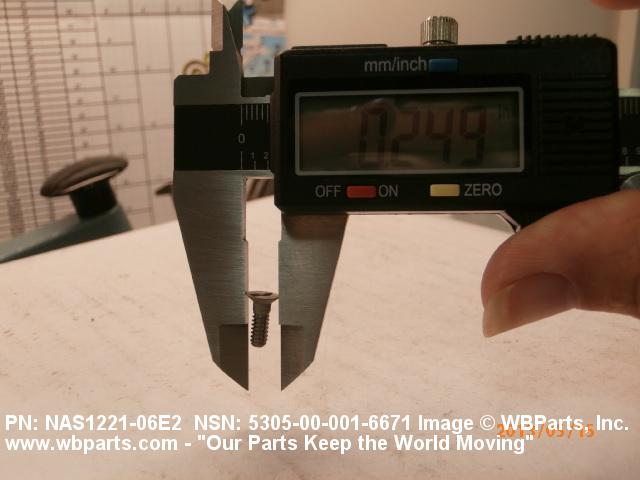

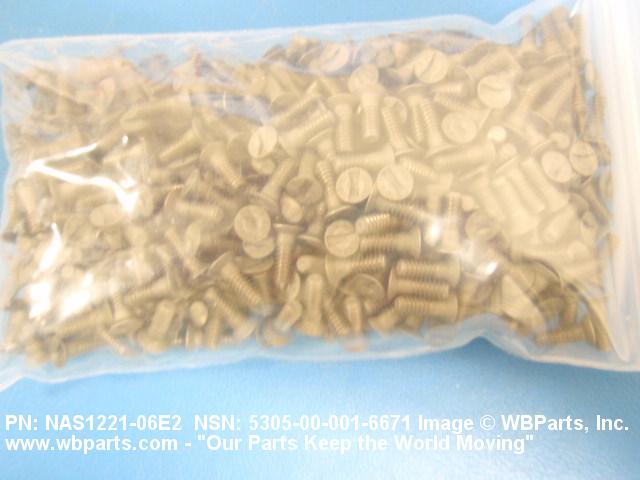

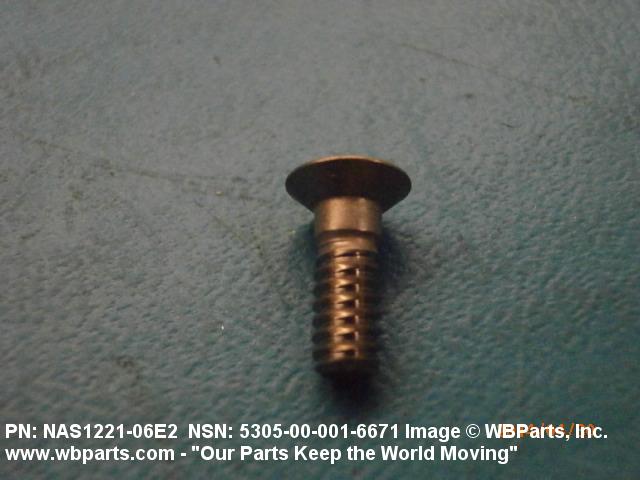

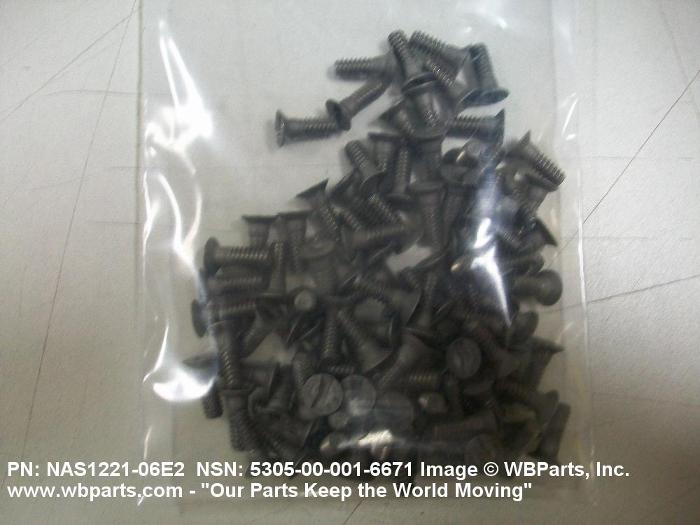

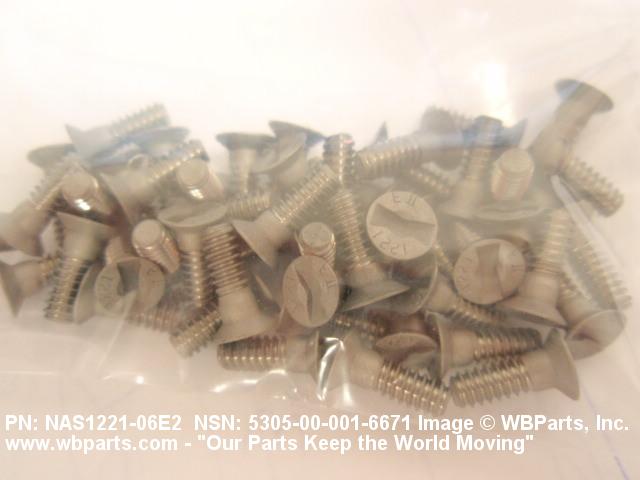

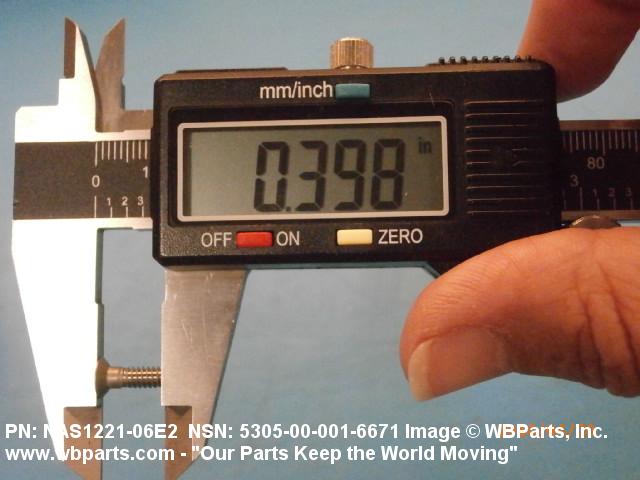

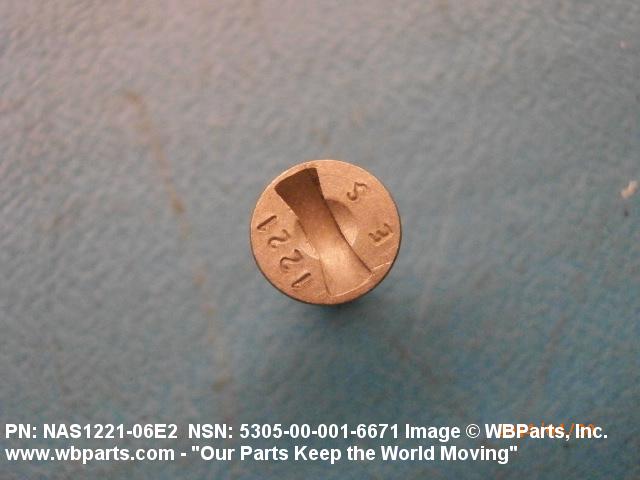

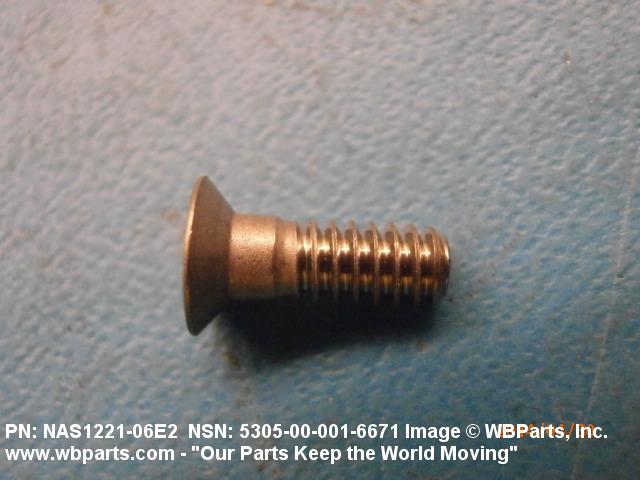

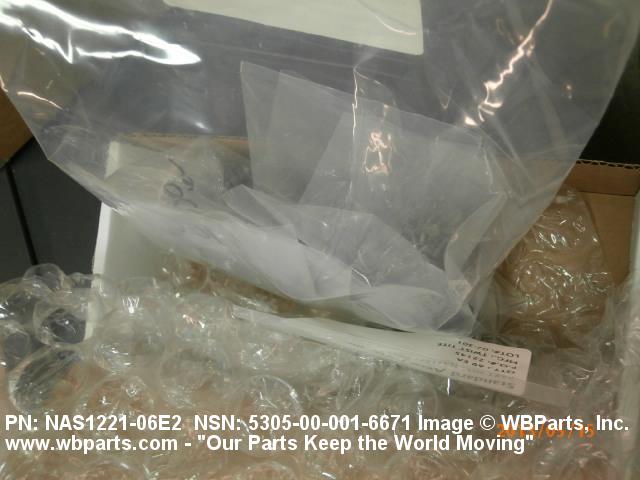

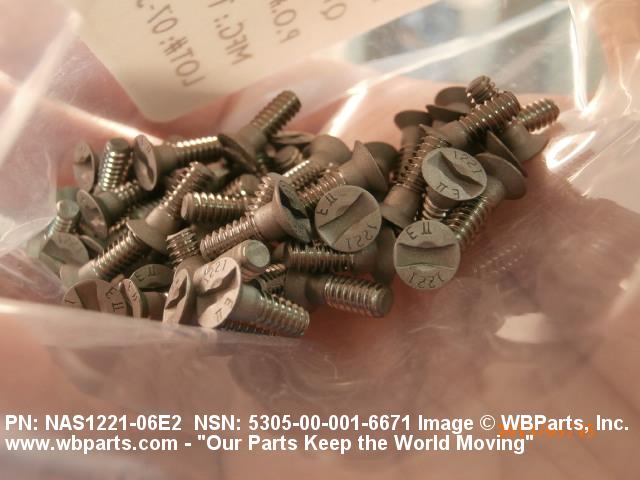

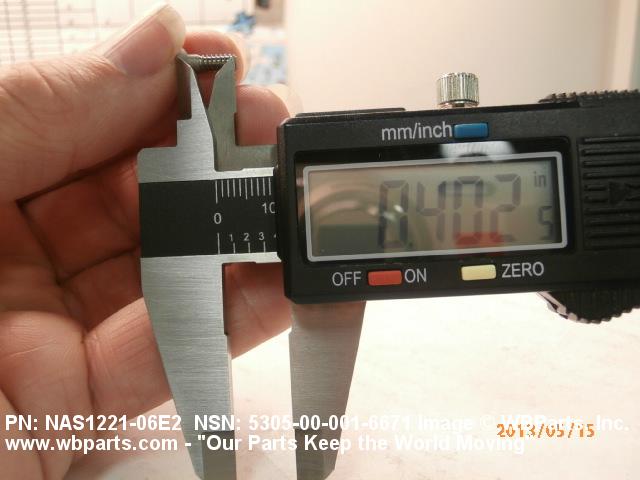

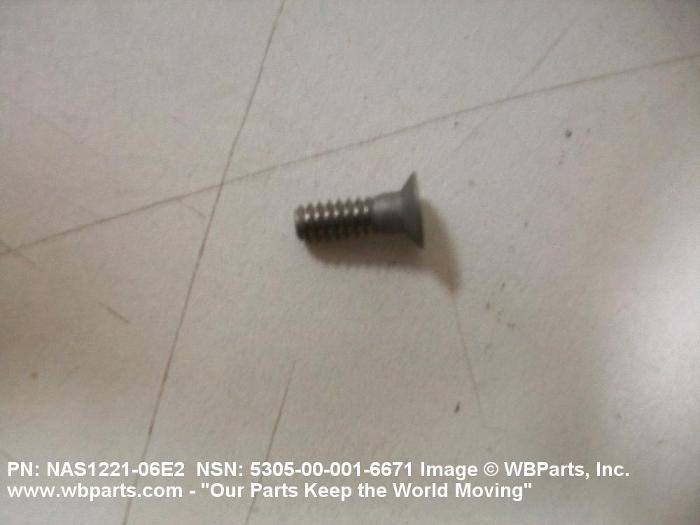

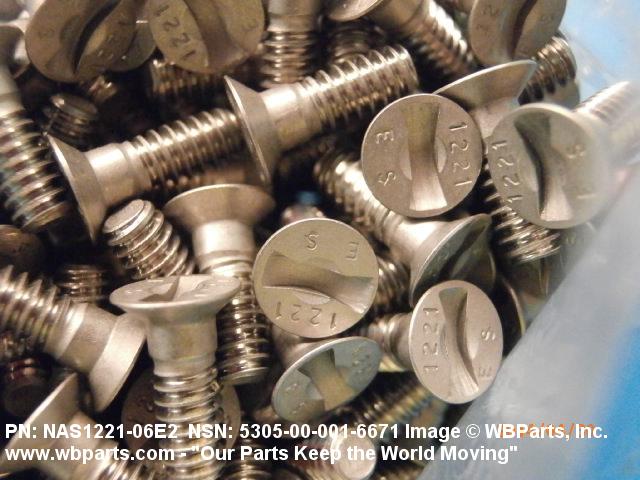

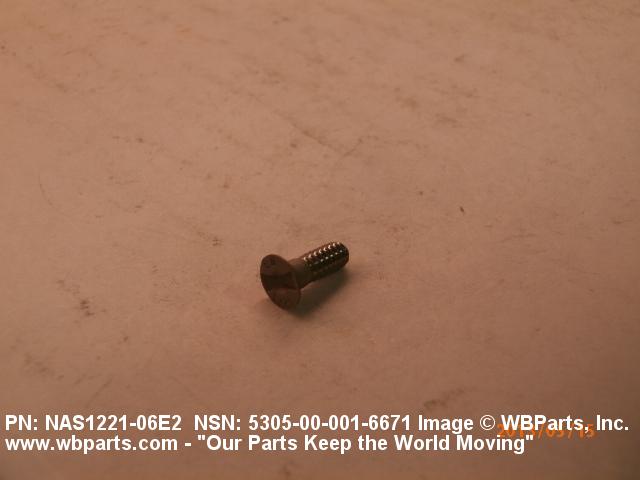

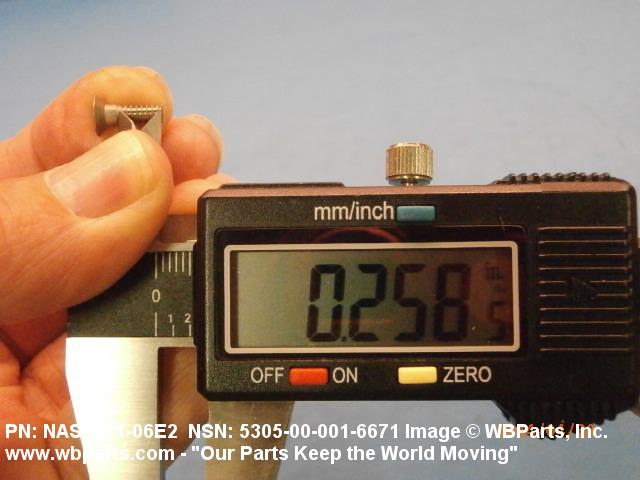

Drawings & Photos | NSN 5305-00-001-6671
Demand History | NSN 5305-00-001-6671
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS122106E2 | 2025-10-289 | 1000 | United States |
| NAS122106E2 | 2025-06-175 | 1000 | us |
| NAS122106E2 | 2024-10-283 | 500 | United States |
| NAS122106E2 | 2024-10-283 | 600 | United States |
| NAS122106E2 | 2024-10-283 | 1000 | United States |
| NAS122106E2 | 2022-04-102 | 574 | United States |
| NAS122106E2 | 2022-04-102 | 1000 | United States |
| NAS122106E2 | 2021-03-67 | 1000 | United States |
| NAS122106E2 | 2018-08-218 | 2000 | United States |
| NAS122106E2 | 2018-06-163 | 500 | United States |
| NAS122106E2 | 2018-06-163 | 820 | United States |
| NAS122106E2 | 2018-06-163 | 1116 | United States |
| NAS122106E2 | 2018-05-150 | 152 | United States |
| NAS122106E2 | 2018-04-100 | 50 | United States |
| NAS122106E2 | 2018-04-100 | 100 | United States |
| NAS122106E2 | 2018-04-100 | 150 | United States |
| NAS122106E2 | 2017-11-324 | 400 | United States |
| NAS122106E2 | 2017-11-324 | 800 | United States |
| NAS122106E2 | 2016-09-271 | 80 | United States |
| NAS122106E2 | 2016-09-271 | 160 | United States |
| NAS122106E2 | 2016-09-271 | 400 | United States |
| NAS122106E2 | 2016-09-271 | 1000 | United States |
| 5305-00-001-6671 | 2015-05-148 | 220 | DIBBS |
| NAS122106E2 | 2014-07-189 | 358 | United States |
| NAS122106E2 | 2014-07-189 | 442 | United States |
| NAS122106E2 | 2014-07-189 | 700 | United States |
| NAS122106E2 | 2014-06-163 | 10 | United States |
| NAS122106E2 | 2014-06-163 | 25 | United States |
| NAS122106E2 | 2014-06-163 | 50 | United States |
| NAS122106E2 | 2014-06-163 | 100 | United States |
| NAS122106E2 | 2014-06-163 | 300 | United States |
| NAS122106E2 | 2014-05-121 | 200 | United States |
| 5305-00-001-6671 | 2014-04-112 | 200 | us |
| NAS122106E2 | 2014-04-104 | 200 | United States |
| NAS122106E2 | 2014-04-104 | 500 | United States |
| NAS122106E2 | 2014-04-97 | 200 | United States |
| NAS122106E2 | 2014-04-97 | 500 | United States |
| NAS122106E2 | 2013-05-127 | 850 | United States |
| NAS122106E2 | 2013-01-09 | 100 | United States |
| NAS122106E2 | 2013-01-09 | 200 | United States |
| NAS122106E2 | 2013-01-09 | 300 | United States |
| NAS122106E2 | 2013-01-09 | 400 | United States |
| NAS122106E2 | 2013-01-09 | 500 | United States |
| NAS122106E2 | 2013-01-09 | 600 | United States |
| NAS122106E2 | 2013-01-09 | 700 | United States |
| NAS122106E2 | 2013-01-09 | 800 | United States |
| NAS122106E2 | 2012-04-115 | 100 | United States |
| NAS122106E2 | 2012-04-115 | 200 | United States |
| NAS122106E2 | 2012-04-115 | 300 | United States |
| NAS122106E2 | 2012-04-115 | 700 | United States |
| NAS122106E2 | 2012-04-115 | 800 | United States |
| NAS122106E2 | 2011-04-108 | 100 | United States |
| NAS122106E2 | 2011-04-108 | 200 | United States |
| NAS122106E2 | 2011-04-108 | 300 | United States |
| NAS122106E2 | 2010-12-335 | 500 | United States |
| 5305-00-001-6671 | 2010-01-21 | 100 | United States |
| 5305-00-001-6671 | 2009-06-176 | 100 | United States |
Cross Reference | NSN 5305-00-001-6671
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1221-06E2 | 04348 | LAWRENCE ENGINEERING AND SUPPLY INC |
| NAS1221-06E2 | 07851 | NOR-CAL SUPPLY CO.INC. |
| NAS1221-06E2 | 08938 | AIR INDUSTRIES CO INC |
| NAS1221-06E2 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| NAS1221-06E2 | 30902 | F AND C SALES INC |
| NAS1221-06E2 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| NAS1221-06E2 | 58998 | EMHART TEKNOLOGIES LLC DBA FASTENER INNOVATION TECHNOLOGY |
| NAS1221-06E2 | 73197 | HI-SHEAR CORPORATION |
| NAS1221-06E2 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NAS1221-06E2 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| NAS1221-06E2 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| NAS1221-06E2 | 97928 | HUCK INTL INC |
| NAS1221-06E2 | L4528 | LISI AEROSPACE CANADA CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-00-001-6671
Related Products | NSN 5305-00-001-6671
Technical Data | NSN 5305-00-001-6671
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJC |
| NOMINAL THREAD DIAMETER | 0.138 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.252 INCHES MINIMUM AND 0.302 INCHES MAXIMUM |
| FASTENER LENGTH | 0.387 INCHES MINIMUM AND 0.417 INCHES MAXIMUM |
| SCREW MATERIAL | IRON ALLOY 660 |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5731 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5732 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE |
| SCREW SURFACE TREATMENT | PASSIVATE |
| SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE |
| MINIMUM TENSILE STRENGTH | 160000 POUNDS PER SQUARE INCH |
| HEAD STYLE | A39 FLAT COUNTERSUNK |
| HEAD DIAMETER | 0.244 INCHES MINIMUM AND 0.279 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |
| INTERNAL DRIVE STYLE | B6 HIGH-TORQUE |
| SPECIFICATION/STANDARD DATA | 80205-NAS1221 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5305-00-001-6671
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-00-001-6671
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
