NSN 5305-00-014-9495 FFS92TYPE1STYLE1S, W6168, 149495
Product Details | MACHINE SCREW
5305-00-014-9495 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: FFS92TYPE1STYLE1S, W6168, 149495, 36825S, 52834, 60686, 9X16, 5305-00-014-9495, 00-014-9495, 5305000149495, 000149495
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01-JAN-63 | 00-014-9495 | 06657 ( SCREW, MACHINE ) |

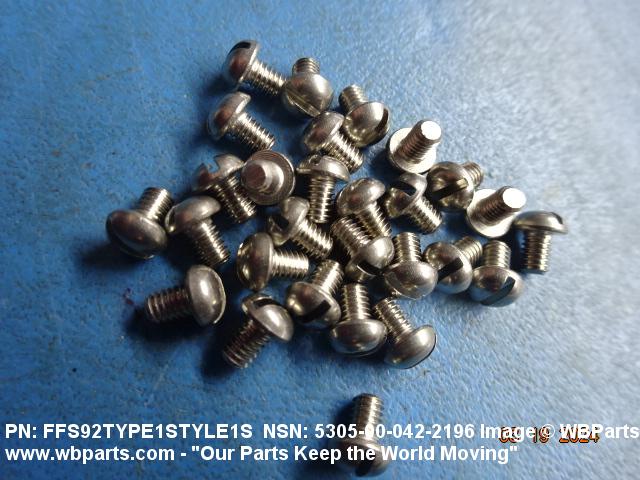

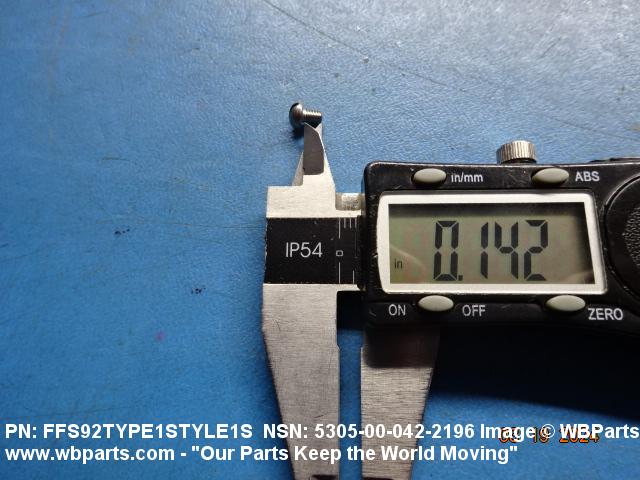

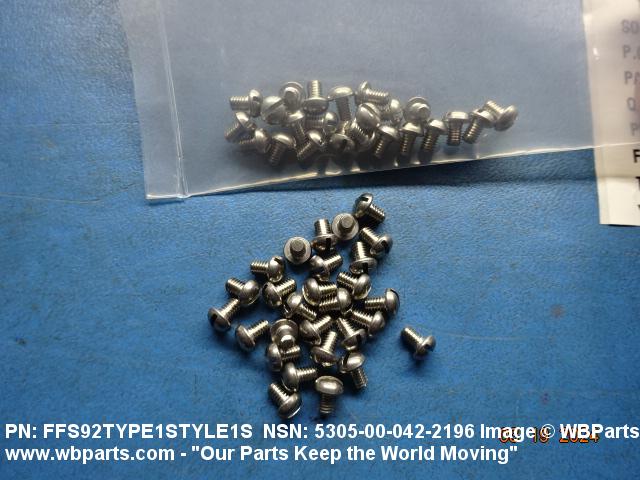

Drawings & Photos | NSN 5305-00-014-9495
Cross Reference | NSN 5305-00-014-9495
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 105012865 | 56161 | GENERAL DYNAMICS LAND SYSTEMS - CANADA CORPORATION |
| 149495 | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
| 191879 | 89346 | NAVISTAR INTL CORP TRUCK BR |
| 279-53820 | 07666 | TOKHEIM CORP SMALL PUMPS DIV |
| 31419 | 13841 | TIFFIN PARTS, L.L.C. DIV SUBSIDIARY OF PETTIBONE CORP. |
| 5305009932463 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 60686 | F8224 | THALES AIR SYSTEMS SA |
| 71137-279 | 95097 | LITTLE GIANT CRANE AND SHOVEL INC |
| 858466-00 | 32345 | DEFENSE REDUCTION AGENCY |
| AN520-416-8 | 76301 | BOEING COMPANY, THE DBA BOEING |
| AN520-416-8 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| MS35207-279 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS35207-279 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS35224-79 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS5207-279 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| NASM35207 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| U7527-1 | 78943 | TRIUMPH THERMAL SYSTEMS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-014-9495
Technical Data | NSN 5305-00-014-9495
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.500 INCHES MINIMUM |
| FASTENER LENGTH | 0.500 INCHES NOMINAL |
| SCREW MATERIAL | STEEL |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-634 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-S-637 FED SPEC SINGLE MATERIAL RESPONSE OR 66 FED STD SINGLE MATERIAL RESPONSE |
| MINIMUM TENSILE STRENGTH | 60000 POUNDS PER SQUARE INCH |
| HEAD STYLE | A28 ROUND |
| HEAD DIAMETER | 0.443 INCHES MINIMUM AND 0.472 INCHES MAXIMUM |
| HEAD HEIGHT | 0.160 INCHES MINIMUM AND 0.175 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | B10 SLOT |
| NONDEFINITIVE SPEC/STD DATA | 1 TYPE AND 1S STYLE |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FFS92TYPE1STYLE1S |
Restrictions/Controls & Freight Information | NSN 5305-00-014-9495
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
