NSN 5305-00-017-9841 MS3529562, MS35295-62, S103D
Product Details | HEXAGON HEAD CAP SCREW
5305-00-017-9841 An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. Excludes BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; and SCREW,CAP,SOCKET HEAD.
Part Alternates: MS3529562, MS35295-62, S103D, S2610, BB6038, CC6X20, FFS85, P1027, P102-7, Q1804, V4B101, X1-29, X8604, X8-604, X129, S944, S156, 743564G, 7435-64G, 802289, 903631, 92406, 0903631, 09036310, 0903631-0, 109258, 11FM7A38X114, 11FM7A3-8X11-4, 14X3233, 175834, 179841, 182958, 1X24, 20428S, 2062, 21352, 213733, 2309D, 24A2C112, 24A2C113, 2734, 2774791, 2X36, 3210, 3580, 5305-00-017-9841, 00-017-9841, 5305000179841, 000179841
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-017-9841 | 18257 ( SCREW, CAP, HEXAGON HEAD ) |

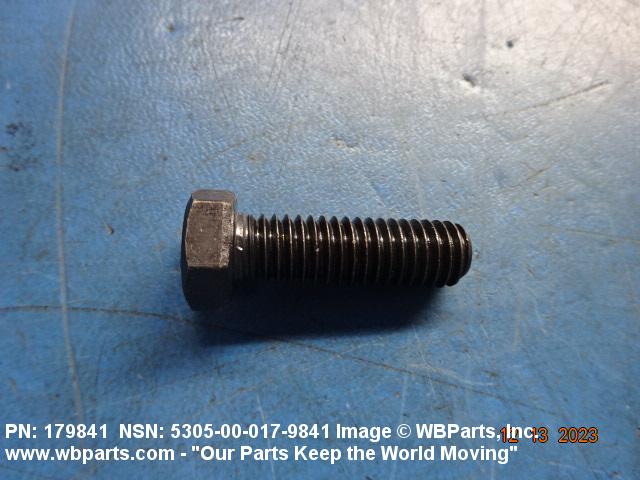

Drawings & Photos | NSN 5305-00-017-9841
Demand History | NSN 5305-00-017-9841
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS3529562 | 2026-01-23 | 100 | UK |
| MS3529562 | 2026-01-22 | 1 | UK |
| MS3529562 | 2026-01-22 | 10 | UK |
| MS3529562 | 2026-01-22 | 25 | UK |
| MS3529562 | 2026-01-22 | 35 | UK |
| MS3529562 | 2025-04-94 | 37 | United States |
| MS3529562 | 2024-10-305 | 37 | United States |
| 5305-00-017-9841 | 2024-02-43 | 150 | United States |
| 5305-00-017-9841 | 2023-12-339 | 60 | United States |
| MS35295-62 | 2013-09-249 | 260 | |
| FFS85 | 2013-01-11 | 473 | US |
| 5305-00-017-9841 | 2013-01-09 | 300 | US |
| 5305-00-017-9841 | 2013-01-09 | 300 | US |
| FFS85 | 2011-10-280 | 95 | United States |
| FFS85 | 2011-09-265 | 14 | US |
| FFS85 | 2010-03-84 | 100 | US |
| FFS85 | 2010-02-43 | 10 | United States |
| FFS85 | 2009-09-272 | 50 | US |
| MS3529562 | 2009-02-34 | 1435 | US |
Cross Reference | NSN 5305-00-017-9841
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0903631 | 6N299 | AGCO CORP PARTS OPN |
| 0903631 | 92392 | ALLIS-CHALMERS CORP |
| 0903631-0 | 6N299 | AGCO CORP PARTS OPN |
| 0903631-0 | 92392 | ALLIS-CHALMERS CORP |
| 109258 | 24617 | GENERAL MOTORS CORP |
| 11FM7A3-8X11-4 | 82796 | COLTEC INDUSTRIES INC DBA FAIRBANKS MORSE ENGINE |
| 14X3233 | 95201 | NAPCO INTERNATIONAL LLC |
| 175834 | K4843 | CUMMINS LTD T/A CUMMINS UK |
| 179841 | 24617 | GENERAL MOTORS CORP |
| 182958 | 24617 | GENERAL MOTORS CORP |
| 1X24 | 83120 | PRESSED METALS OF AMERICA INC |
| 20428S | 23040 | FORD MOTOR CO FORD PARTS AND SERVICE DIV |
| 2062 | 72970 | EMPIRE ELECTRIC BRAKE CO |
| 21352 | 64104 | DRESSER, INC. DIV DRESSER WAUKESHA |
| 213733 | 24617 | GENERAL MOTORS CORP |
| 2309D | 77890 | SERVICE PRODUCTS CORP |
| 24A2C112 | 30760 | INGERSOLL RAND CO |
| 24A2C113 | 30760 | INGERSOLL RAND CO |
| 2734 | 23382 | FWD SEAGRAVE HOLDINGS, LP DIV FWD SEAGRAVE HOLDINGS, LP |
| 2774791 | 43952 | ENERGY SERVICES GROUP DIV OF COOPER INDUSTRIES INC |
| 2X36 | 63734 | KAITLIN CORP |
| 3210 | 82722 | WESTINGHOUSE AIR BRAKE TECHNOLOGIES CORPORATION |
| 3580 | 77260 | PIERCE CO INC THE SUB OF AVIS INDUSTRIAL CORP |
| 7435-64G | 52793 | SAGINAW PRODUCTS CORPORATION DBA CIGNYS |
| 802289 | 02280 | AMERICAN HOIST AND DERRICK CO |
| 802289 | 49185 | TEREX AMERICAN CRANE CORP |
| 903631 | 6N299 | AGCO CORP PARTS OPN |
| 903631 | 92392 | ALLIS-CHALMERS CORP |
| 92406 | 08645 | BRIGGS AND STRATTON CORP |
| BB6038 | 56442 | DIAMOND REO TRUCK CO |
| CC6X20 | 63734 | KAITLIN CORP |
| FFS85 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| MS35295-62 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| P102-7 | 61178 | TUTHILL CORPORATION DBA TUTHILL PUMP GROUP |
| Q1804 | 31007 | NAVISTAR INTL CORP |
| S103D | 15434 | CUMMINS INC. |
| S103D | K4843 | CUMMINS LTD T/A CUMMINS UK |
| S156 | 15434 | CUMMINS INC. |
| S2610 | 63734 | KAITLIN CORP |
| S944 | 64161 | WEAVER DIV OF DURA CORP |
| V4B101 | 14351 | TELEDYNE CONTINENTAL MOTORS INDUSTRIAL PRODUCTS DIV |
| X1-29 | 15586 | CUSHMAN INC A RANSOM CO |
| X8-604 | 73460 | EATON CORP TRANSMISSION DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-017-9841
Technical Data | NSN 5305-00-017-9841
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |

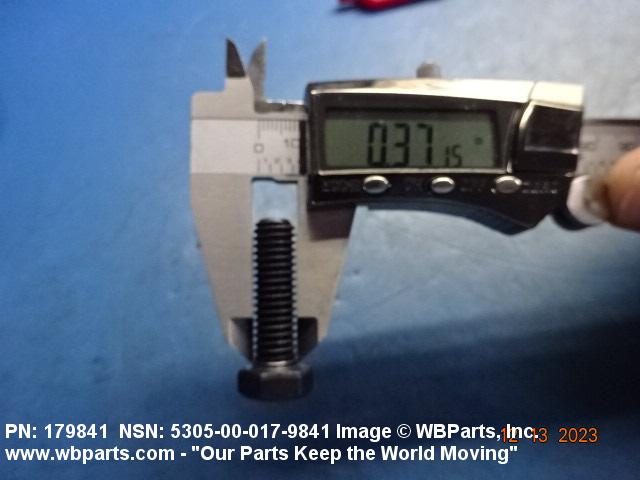

| NOMINAL THREAD DIAMETER | 0.375 INCHES |

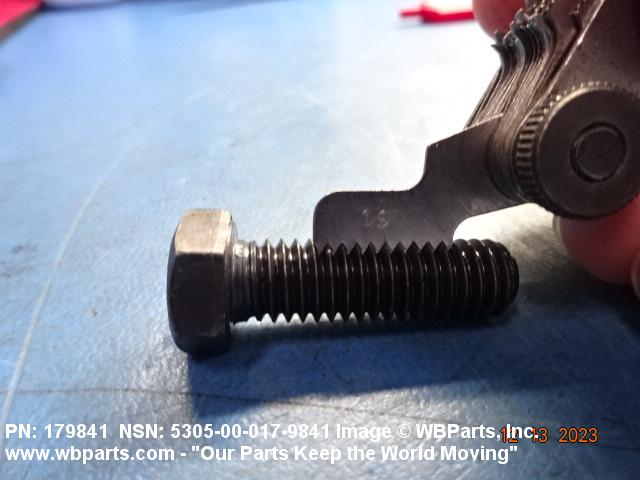

| THREAD QUANTITY PER INCH | 16 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 1.000 INCHES MINIMUM |

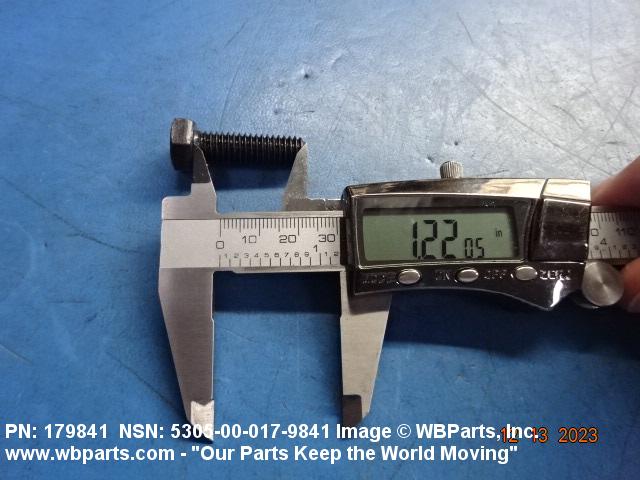

| FASTENER LENGTH | 1.250 INCHES NOMINAL |
| MATERIAL | STEEL OVERALL |
| HARDNESS RATING | 23.0 ROCKWELL C MINIMUM AND 30.0 ROCKWELL C MAXIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 120000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C1 HEXAGON |

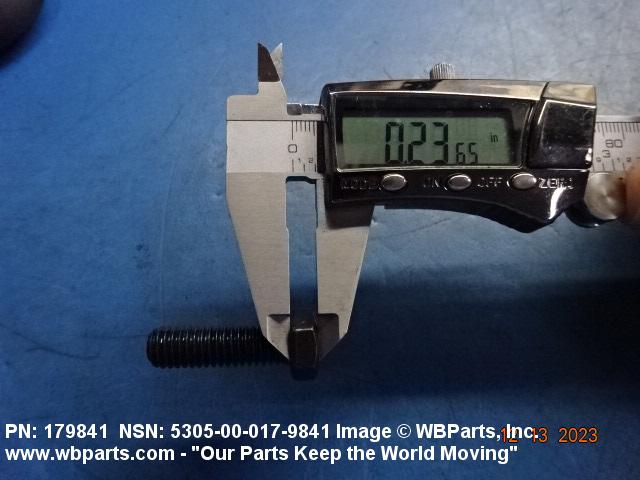

| HEAD HEIGHT | 0.226 INCHES MINIMUM AND 0.243 INCHES MAXIMUM |

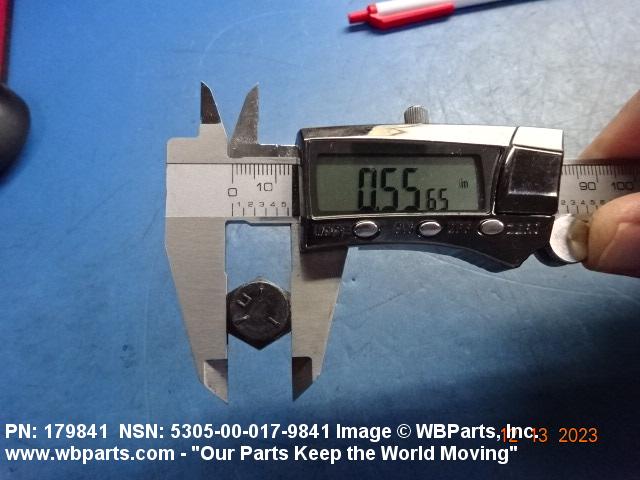

| WIDTH BETWEEN FLATS | 0.551 INCHES MINIMUM AND 0.562 INCHES MAXIMUM |
| NONDEFINITIVE SPEC/STD DATA | 2 TYPE AND 10P STYLE AND 5 GRADE |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FFS85 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS35295-62 |
Restrictions/Controls & Freight Information | NSN 5305-00-017-9841
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | U | 50 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
