NSN 5305-00-050-9227 MS3523361, MS35233-61, MS5195761

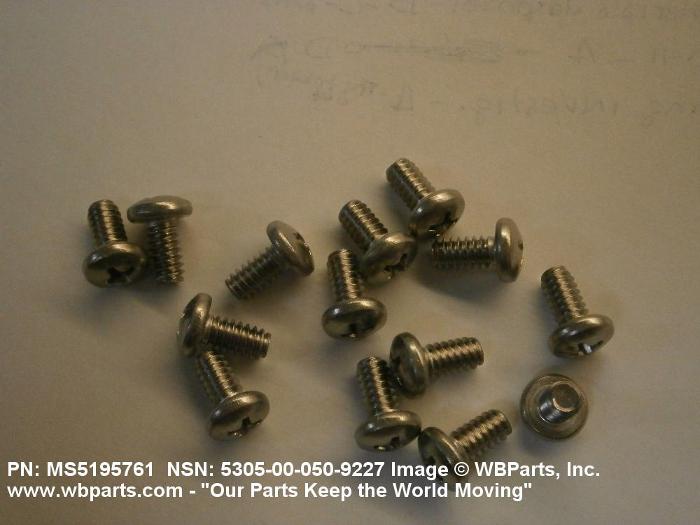

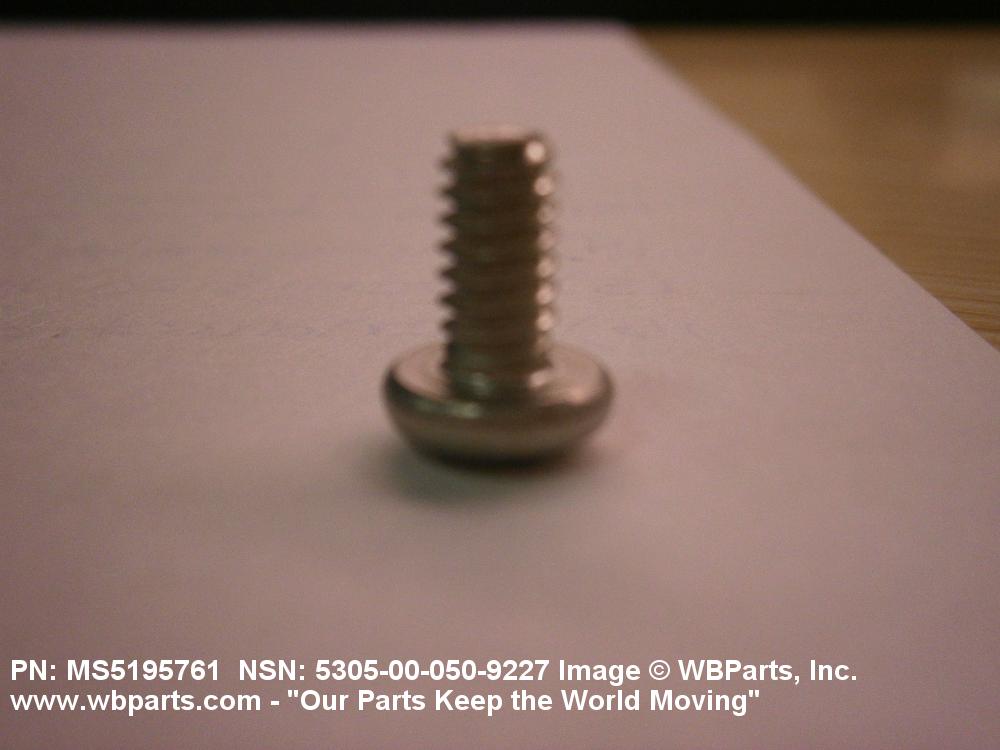

Product Details | MACHINE SCREW
5305-00-050-9227 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: MS3523361, MS35233-61, MS5195761, MS51957-61, AN515C106, AN515C10-6, AN515C10R6, CRESMS3523361, CRES-MS35233-61, F13106L, F-13-10-6L, PWA576617, PWA57661-7, 540176-061, 6508140, 709-4403654 PIE, 7094403654PIE, 1737102126, 1737102-126, 177004-230, 3430207000, 343-0207-000, 3496, 50P011031505, 50P01103-1505, 5305-00-050-9227, 00-050-9227, 5305000509227, 000509227, 177004230, 540176061
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-050-9227 | 06657 ( SCREW, MACHINE ) |
Drawings & Photos | NSN 5305-00-050-9227
Demand History | NSN 5305-00-050-9227
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-00-050-9227 | 2020-11-331 | 35 | TR |
| MS5195761 | 2016-11-308 | 1 | United States |
| MS51957-61 | 2016-05-137 | 4 | |
| 5305-00-050-9227 | 2015-05-124 | 76 | Singapore |
| 5305-00-050-9227 | 2014-08-239 | 1 | US |
| MS5195761 | 2014-07-212 | 104 | US |
| MS51957-61 | 2014-03-71 | 97 | United States |
| 5305-00-050-9227 | 2013-04-107 | 1 | DIBBS |
| MS5195761 | 2012-07-201 | 375 | us |
| MS5195761 | 2012-06-177 | 64 | United States |
| 5305-00-050-9227 | 2011-09-258 | 1 | DIBBS |
| 5305-00-050-9227 | 2011-08-237 | 1 | DIBBS |
| 5305-00-050-9227 | 2011-08-237 | 5 | DIBBS |
| 5305-00-050-9227 | 2011-08-231 | 2 | DIBBS |
| MS5195761 | 2011-07-201 | 400 | TR |
| MS5195761 | 2010-11-308 | 730000 | US |
| 5305-00-050-9227 | 2010-11-306 | 7300 | DIBBS |
| 5305-00-050-9227 | 2009-05-141 | 46 | US |
| 5305-00-050-9227 | 2007-05-145 | 8 | US |
Cross Reference | NSN 5305-00-050-9227
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1737102-126 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 177004-230 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 343-0207-000 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 3496 | 92878 | HDT EXPEDITIONARY SYSTEMS, INC. |
| 50P01103-1505 | 01425 | LOUIS ALLIS CO THE THIS COMPANY HAS GONE BANKRUPT AND |
| 50P01103-1505 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 5305000509227 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 540176-061 | 12436 | BAE SYSTEMS NATIONAL SECURITY SOLUTIONS INC. |
| 6508140 | 7J015 | PRIBBS STEEL & MFG., INC. |
| 709-4403654 PIE | 43689 | HUNTINGTON INGALLS INCORPORATED DIV NEWPORT NEWS |
| AN515C10-6 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| AN515C10R6 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| CRES-MS35233-61 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| F-13-10-6L | 72314 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I |
| MS35233-61 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS51957-61 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| PWA57661-7 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
