NSN 5305-00-054-5636 MS352162, MS35216-2, MS352332

Product Details | MACHINE SCREW

5305-00-054-5636 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.

Part Alternates: MS352162, MS35216-2, MS352332, MS35233-2, MS5195702, MS51957-02, MS519572, MS51957-2, M7625603, M76-25603, N34P5003, N97P5003, NAS1635023P, NAS1635-02-3P, A09269, AN515C23, AN515C2-3, AN515C2R3, F1323LG, F13-2-3LG, FFS92, FF-S-92, G3024332, G302433-2, P3430669000, P343-0669-000, THSI0302, TH-SI0302, TP519572, TP51957-2, VA970168002, VA-97-0168-002, 5120002-03, 946830-203, 9500122, 95001-22, 010236-002, 011078, 0315013B36, 03-15013B36, 09192, 0919-2, 107045 1202, 1070451202, 1076013, 107601-3, 2211027030, 2211-027030, 2211027037, 2211-027037, 23001, 23001ADX, 2300872002, 23-00872-002, 245257, 256X316, 2-56X3-16, 256X316BINDHD, 2-56X3-16BINDHD, 2845150203, 284-515-0203, 3021090238, 3402200062, 340-220-0062, 343-0123-00, 40523002016, 4183292, 418329-2, 435-608-103, 4409199, 440-9199 , 48522563C, 485-2-256-3C, 61303050212, 70904109002, 70904109-002, 70A3210206480, 70A3210206-480, 74455226002, 80410427, 8041-0427, 83926045010, 83-9260-4501-0, 9192, 919-2, 9468300203, 946830-0203, 5305-00-054-5636, 00-054-5636, 5305000545636, 010236002, 000545636, 946830203, 512000203, 435608103, 343012300

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1961	00-054-5636	06657 ( SCREW, MACHINE )

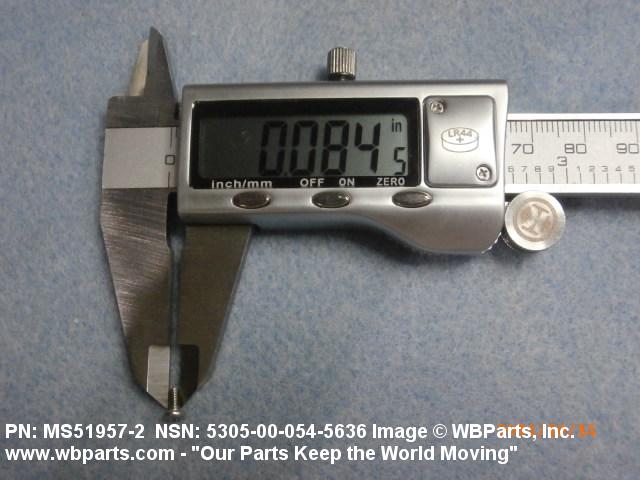

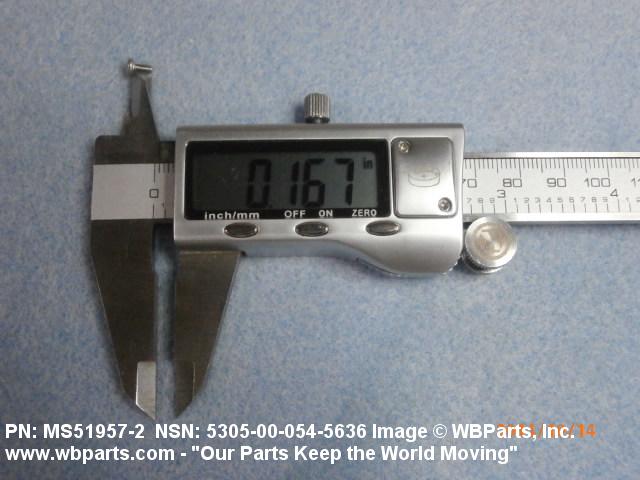

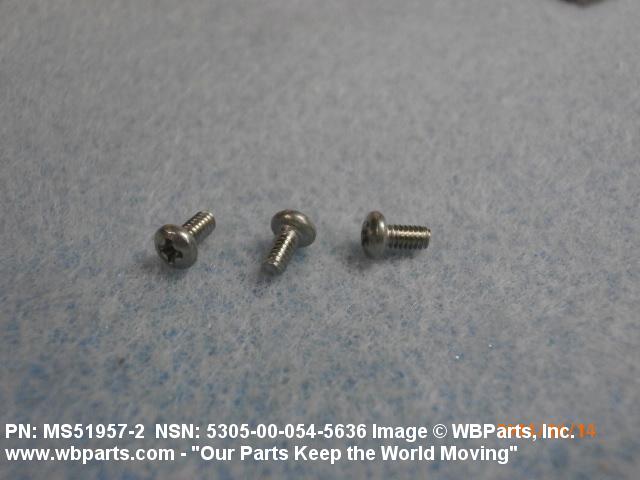

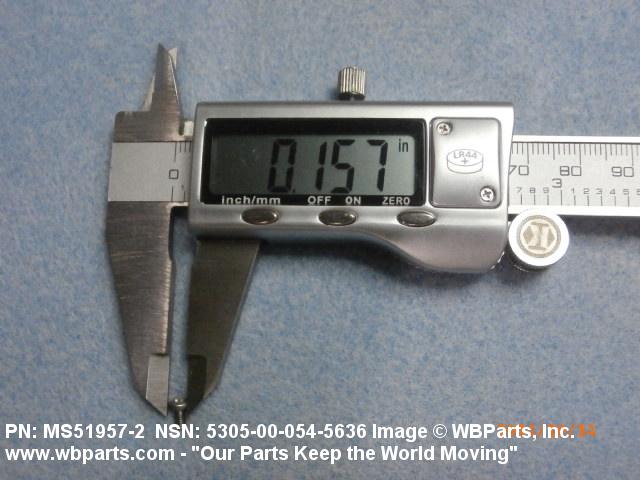

Drawings & Photos | NSN 5305-00-054-5636

Part Number	Request Date	QTY	Origin
MS519572	2024-04-100	1200	United States
FFS92	2023-08-236	14	US
MS519572	2023-07-201	5	IN
MS352162	2023-03-65	1042	United States
5305-00-054-5636	2023-02-38	100	Turkey
MS519572	2023-01-25	1000	Korea
MS519572	2022-07-193	700	Korea
5305-00-054-5636	2021-06-168	5	US
MS519572	2021-03-82	6	United States
5305-00-054-5636	2020-07-202	1675	Germany
5305-00-054-5636	2020-07-184	1675	Germany
MS519572	2020-06-176	1000	South Korea
MS519572	2020-06-168	1000	South Korea
MS519572	2020-04-114	10	South Korea
MS519572	2019-07-193	500	South Korea
MS51957-2	2019-02-45	500	South Korea
MS51957-2	2019-01-17	500	South Korea
MS51957-2	2018-11-310	176	Israel
MS519572	2018-09-249	50	IN
MS519572	2018-09-249	50	IN
MS51957-2	2018-05-135	301	South Korea
MS519572	2018-01-31	51940	US
MS519572	2017-02-44	10	South Korea
MS519572	2016-10-279	100	United States
5305-00-054-5636	2015-04-110	1457	DIBBS
MS51957-2	2014-09-271	100	United States
MS519572	2014-07-212	100	US
MS51957-2	2014-07-199	100	United States
FF-S-92	2014-02-59	75	United States
AN515C2R3	2013-08-229	50	Canada
MS352332	2013-07-206	500	United States
MS519572	2012-07-208	3200	AE
MS519572	2012-01-20	2020	IN
MS352332	2011-08-230	500	United States
MS352332	2011-06-152	100	United States
FFS92	2011-02-49	5	US
FFS92	2011-02-49	50	US
FFS92	2010-11-323	165	US
MS519572	2010-04-118	3500	US
FFS92	2009-12-338	100	US
FFS92	2009-10-292	50	United States
MS519572	2009-07-204	16000	United States
MS5195702	2009-05-139	5000	US
5305-00-054-5636	2009-03-81	50	South Korea
MS519572	2008-10-288	4690	China
FFS92	2008-03-80	50	United States

Cross Reference | NSN 5305-00-054-5636

Part Number	Cage Code	Manufacturer
010236-002	81413	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I
011078	D0078	DIEHL BGT DEFENCE GMBH & CO. KG
03-15013B36	1VPW8	GENERAL DYNAMICS C4 SYSTEMS, INC.
03-15013B36	94990	MOTOROLA INC. DBA INTEGRATED INFORMATION SYSTEMS
0919-2	02769	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
0919-2	56232	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
107045 1202	37695	RAYTHEON COMPANY DBA RAYTHEON
107601-3	37695	RAYTHEON COMPANY DBA RAYTHEON
2-56X3-16	77250	ALLIED PRODUCTS CORP PHEOLL MFG CO DIV
2-56X3-16BINDHD	56878	SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION
2211-027030	S4276	TOKYO AIRCRAFT INSTRUMENTS CO. LTD
2211-027037	S4276	TOKYO AIRCRAFT INSTRUMENTS CO. LTD
23-00872-002	K0268	RAYTHEON SYSTEMS LTD
23001	73734	FEDERAL SCREW PRODUCTS INC.
23001ADX	1VN02	AIRDALE EXPRESS LLC
245257	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
284-515-0203	95542	NORTHROP GRUMMAN SYSTEMS CORPORATION
284-515-0203	C1834	KONTRON AG
3021090238	D2439	DIEHL AEROSPACE GMBH, STANDORTFRANKFURT
340-220-0062	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
343-0123-00	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
40523002016	S0522	TADIRAN LTD
418329-2	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
435-608-103	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
485-2-256-3C	96774	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
5120002-03	34257	EIP MICROWAVE INC
5305000545636	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
61303050212	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
70904109-002	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
70A3210206-480	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
74455226002	89944	KOLLSMAN, INC.
8041-0427	28763	PHAROS MARINE AUTOMATIC POWER, INC. DBA PHAROS MARINE AUTOMATIC POWER
83-9260-4501-0	66346	MINNESOTA MINING AND MFG CO BROADCASTING AND RELATED PRODUCTS
83-9260-4501-0	D2607	3M DEUTSCHLAND GMBH DIV 3M GOVERNMENT SERVICES, EUROPE &
919-2	03956	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS
946830-0203	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
946830-203	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
946830-203	13973	LITTON SYSTEMS INC. DIV NAVIGATION SYSTEMS DIVISION
95001-22	89944	KOLLSMAN, INC.
A09269	K0967	MBDA UK LTD
AN515C2-3	88044	AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE
AN515C2R3	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
F13-2-3LG	72314	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I
FF-S-92	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
G302433-2	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
M76-25603	54418	MILTOPE CORPORATION
MS35216-2	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS35233-2	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS51957&2	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS51957-02	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS51957-2	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
N34P5003	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
N97P5003	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
NAS1635-02-3P	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
P343-0669-000	77250	ALLIED PRODUCTS CORP PHEOLL MFG CO DIV
TH-SI0302	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
TP51957-2	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
VA-97-0168-002	K0668	SELEX ES LTD DBA SELEX S & A S

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-054-5636

Compare

Related Products | NSN 5305-00-054-5636

5305-00-187-5942, 5305-00-452-4907, 5305-00-452-4908, 5305-00-452-7895, 5305-00-453-2669

Technical Data | NSN 5305-00-054-5636

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNC
NOMINAL THREAD DIAMETER	0.086 INCHES
THREAD QUANTITY PER INCH	56
THREAD CLASS	2A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.121 INCHES MINIMUM AND 0.188 INCHES MAXIMUM
FASTENER LENGTH	0.157 INCHES MINIMUM AND 0.188 INCHES MAXIMUM
SCREW MATERIAL	STEEL COMP 301 OR STEEL COMP 302 OR STEEL COMP 302B OR STEEL COMP 303 OR STEEL COMP 303SE OR STEEL COMP 304 OR STEEL COMP 304L OR STEEL COMP 305 OR STEEL COMP 308 OR STEEL COMP 309 OR STEEL COMP 309S OR STEEL COMP 310 OR STEEL COMP 310S OR STEEL COMP 314 OR STEEL COMP 316 OR STEEL COMP 316L OR STEEL COMP 317 OR STEEL COMP 321 OR STEEL COMP 347 OR STEEL COMP 348 OR STEEL COMP 384 OR STEEL COMP 385
SCREW SURFACE TREATMENT	PASSIVATE
SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE
MINIMUM TENSILE STRENGTH	80000 POUNDS PER SQUARE INCH
HEAD STYLE	A23 PAN
HEAD DIAMETER	0.155 INCHES MINIMUM AND 0.167 INCHES MAXIMUM
HEAD HEIGHT	0.053 INCHES MINIMUM AND 0.062 INCHES MAXIMUM
INTERNAL DRIVE STYLE	B1 CROSS RECESS TYPE 1
NONDEFINITIVE SPEC/STD DATA	1 TYPE OR 9C STYLE
MANUFACTURERS CODE	81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	FF-S-92
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS51957-2

Restrictions/Controls & Freight Information | NSN 5305-00-054-5636

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-00-054-5636

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
