NSN 5305-00-054-5646 MS162OO12, MS162OO-12, MS3521611

Product Details | MACHINE SCREW

5305-00-054-5646 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.

Part Alternates: MS162OO12, MS162OO-12, MS3521611, MS35216-11, MS3523312, MS35233-12, MS5179512, MS51795-12, MS5195712, MS51957-12, N97P9003, A20520103, A20520-103, ASC1537600, LD62614337, LD626143-37, P3301047030, P330-1047-030, P3430132000, P343-0132-000, TP5195712, TP51957-12, VA970168012, VA-97-0168-012, 4177214-23, 418293, 4592497 ITEM 16, 4592497ITEM16, 500716, 5007-16, 4-00765-020, 40523004516, 5120004-03, 823957-124, 8599273098, 8599273-098, 8914385103, 8914385-103, 89143853, 8914385-3, 9468300403, 946830-0403, 003007864012, 003-007864-012, 010236-012, 01610190026, 016-1019-0026, 05007-0016, 091912, 0919-12, 10124881, 10-1850-500 ITEM 31, 101850500ITEM31, 10-7016 REV C ITEM 28, 107016REVCITEM28, 1210815006, 12-108150-06, 15650029-0, 17041, 17703565, 177035-65, 20009412, 200094-12, 201169, 23021, 23021ADX, 245091, 245249, 3402200142, 340-220-0142, 3490132000, 349-0132-000, 54320403, 5432-0403, 615041, 70A3210406480, 70A3210406-480, 74455226012, 805-020-403, 946830-403, 5305-00-054-5646, 00-054-5646, 5305000545646 , 417721423, 512000403, 946830403, 000545646, 010236012, 050070016, 140300012, 156500290, 400765020, 823957124, 805020403

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1961	00-054-5646	06657 ( SCREW, MACHINE )

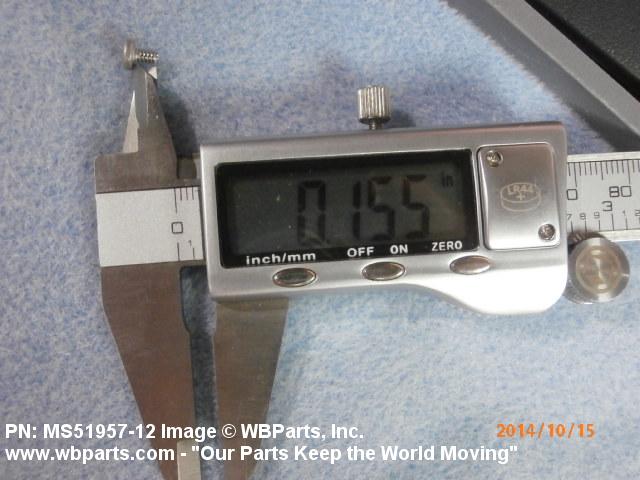

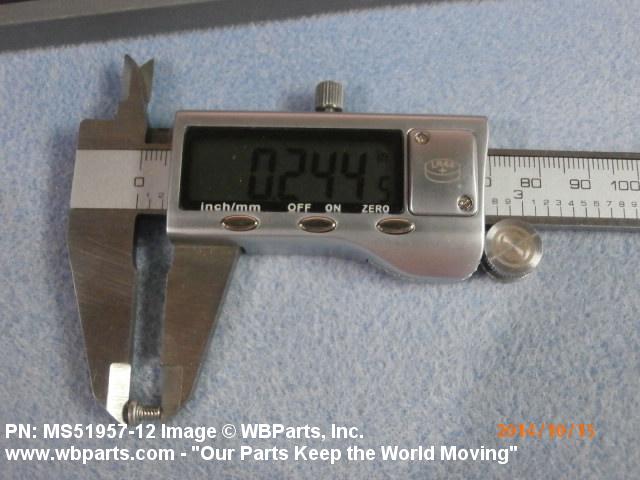

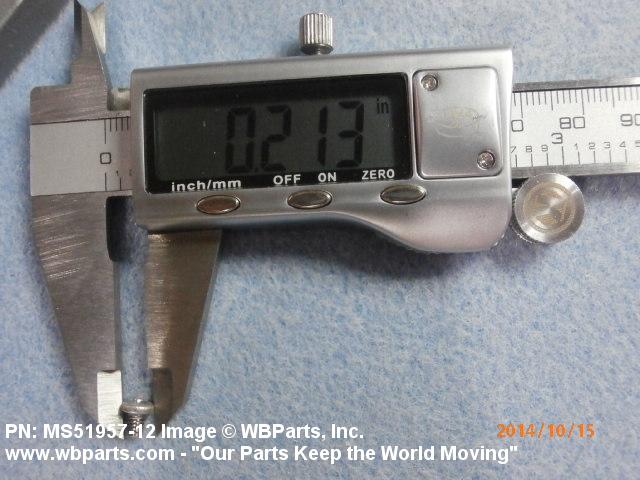

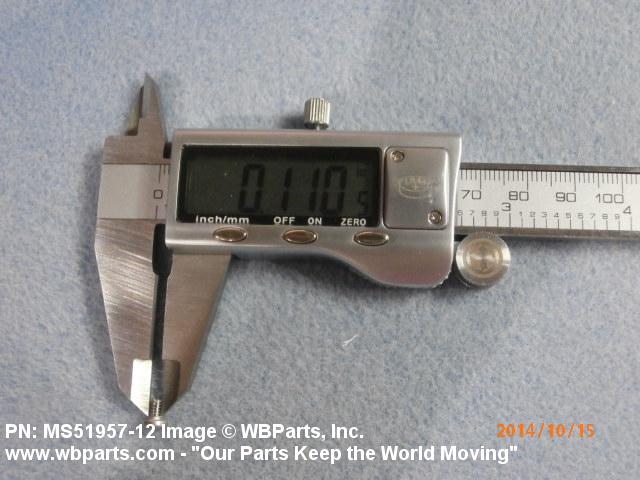

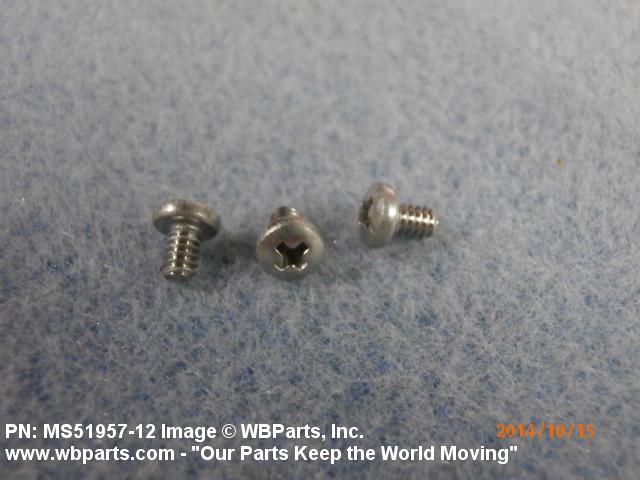

Drawings & Photos | NSN 5305-00-054-5646

Part Number	Request Date	QTY	Origin
MS5195712	2025-10-293	3400	United States
MS5195712	2025-07-204	450	Korea
MS5195712	2024-07-198	100	Korea
MS5195712	2024-01-31	106	United States
MS5195712	2023-10-303	720	Korea
MS5195712	2023-03-79	680	Korea
MS5195712	2023-03-79	170	Korea
MS5195712	2022-05-143	100	United States
5305-00-054-5646	2021-06-168	5	US
MS5195712	2021-05-124	12	IN
MS51957-12	2020-06-174	480	Hong Kong
MS5195712	2020-02-58	2000	Taiwan
5305-00-054-5646	2020-01-16	4110	us
MS5195712	2020-01-07	800	Taiwan
MS51957-12	2019-08-232	5200	South Korea
MS5195712	2019-07-200	800	South Korea
MS5195712	2017-12-352	3600	US
MS5195712	2017-01-12	260	South Korea
MS5195712	2016-12-348	350	United States
5305-00-054-5646	2016-11-327	1	DIBBS-RFPs
5305-00-054-5646	2016-06-153	531	DIBBS
MS5195712	2016-05-140	300	South Korea
MS5195712	2016-04-96	207	US
MS5195712	2015-04-104	460	South Korea
MS51957-12	2014-09-271	100	United States
MS5195712	2014-07-212	8000	US
MS51957-12	2014-07-199	100	United States
MS35233-12	2013-08-229	5400	Canada
MS5195712	2013-07-193	1	United States
5305-00-054-5646	2012-06-181	498	DIBBS
TP5195712	2011-07-200	540	United States
MS5195712	2011-01-14	3	US
MS5195712	2009-05-125	120	US
5305-00-054-5646	2008-12-353	10	US
5305-00-054-5646	2008-11-330	2053	DIBBS
5305-00-054-5646	2008-09-254	2461	DIBBS
5305-00-054-5646	2008-07-190	25000	US
MS5195712	2008-06-182	10	US
5305-00-054-5646	2008-01-23	463	DIBBS

Cross Reference | NSN 5305-00-054-5646

Part Number	Cage Code	Manufacturer
003-007864-012	26916	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE
010236-012	81413	BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I
016-1019-0026	19362	DIT-MCO INTERNATIONAL CORPORATION
05007-0016	26344	NEW HAVEN MFG CORP
0919-12	07187	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
10-1850-500 ITEM 31	28199	L-3 COMMUNICATIONS CORPORATION DBA L-3 HENSCHEL
10-7016 REV C ITEM 28	28199	L-3 COMMUNICATIONS CORPORATION DBA L-3 HENSCHEL
12-108150-06	52414	EMERSON ELECTRIC CO COMPUTER POWER DIV
140300012	D1876	L-3 COMMUNICATIONS ELAC NAUTIK GMBH DBA L-3 ELAC NAUTIK
15650029-0	F6151	SAFRAN
15650029-0	FAQ15	SAGEM DEFENSE SECURITE - GROUPESAFRAN
17041	73734	FEDERAL SCREW PRODUCTS INC.
177035-65	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
200094-12	02145	RICHARDS IMAGERY INTERPRETATION SYSTEMS L.L.C.
201169	17638	ABD INTL INC DBA ABDICK
23021	73734	FEDERAL SCREW PRODUCTS INC.
23021ADX	1VN02	AIRDALE EXPRESS LLC
245091	35679	SINCLAIR TECHNOLOGIES INC.
245249	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
340-220-0142	99932	MOOG INC. DBA MOOG COMPONENTS GROUP
349-0132-000	13499	ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS
4-00765-020	03848	ARMA DIV AMBAC INDUSTRIES INC
40523004516	S0522	TADIRAN LTD
4177214-23	05869	RAYTHEON COMPANY DBA RAYTHEON
418293	96214	RAYTHEON COMPANY DBA RAYTHEON
4592497 ITEM 16	12934	NAVAL AIR WARFARE CENTER WEAPONS DIV
5007-16	26344	NEW HAVEN MFG CORP
5120004-03	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
5305000545646	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5432-0403	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
615041	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
70A3210406-480	04655	GENERAL DYNAMICS C4 SYSTEMS, INC.
74455226012	89944	KOLLSMAN, INC.
805-020-403	17903	ANDREW SCICOMM INC
823957-124	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
8599273-098	24617	GENERAL MOTORS CORP
8599273-098	99974	DELCO ELECTRONICS CORP DELCO SYSTEMS OPNS
8914385-103	49671	LOCKHEED MARTIN CORP LOCKHEED MARTIN INFORMATION SYSTEMS
8914385-3	49671	LOCKHEED MARTIN CORP LOCKHEED MARTIN INFORMATION SYSTEMS
946830-0403	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
946830-403	06481	NORTHROP GRUMMAN SYSTEMS CORPORATION
946830-403	13973	LITTON SYSTEMS INC. DIV NAVIGATION SYSTEMS DIVISION
A20520-103	94697	MOOG, INC.
ASC1537600	Z4779	ASC PTY LTD
LD626143-37	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS162OO-12	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS35216-11	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS35233-12	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS51795-12	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS51957-12	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
N97P9003	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
P330-1047-030	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
P343-0132-000	77250	ALLIED PRODUCTS CORP PHEOLL MFG CO DIV
TP51957-12	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
VA-97-0168-012	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
VA-97-0168-012	K0668	SELEX ES LTD DBA SELEX S & A S

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-054-5646

Compare

Related Products | NSN 5305-00-054-5646

5305-00-054-5650, 5305-00-054-5651, 5305-00-054-5652, 5305-00-054-5653, 5305-00-054-5654

Technical Data | NSN 5305-00-054-5646

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNC
NOMINAL THREAD DIAMETER	0.112 INCHES
THREAD QUANTITY PER INCH	40
THREAD CLASS	2A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.157 INCHES MINIMUM AND 0.188 INCHES MAXIMUM
FASTENER LENGTH	0.157 INCHES MINIMUM AND 0.188 INCHES MAXIMUM
SCREW MATERIAL	STEEL COMP 304 OR STEEL COMP 302 OR STEEL COMP 316
SCREW MATERIAL DOCUMENT AND CLASSIFICATION	QQ-S-763 FED SPEC ALL MATERIAL RESPONSES
SCREW SURFACE TREATMENT	PASSIVATE
SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE
MINIMUM TENSILE STRENGTH	80000 POUNDS PER SQUARE INCH
HEAD STYLE	A23 PAN
HEAD DIAMETER	0.205 INCHES MINIMUM AND 0.219 INCHES MAXIMUM
HEAD HEIGHT	0.070 INCHES MINIMUM AND 0.080 INCHES MAXIMUM
INTERNAL DRIVE STYLE	B1 CROSS RECESS TYPE 1
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS51957-12

Restrictions/Controls & Freight Information | NSN 5305-00-054-5646

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-00-054-5646

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
