NSN 5305-00-054-6674 MS3521646, MS35216-46, MS3523349
Product Details | MACHINE SCREW
5305-00-054-6674 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: MS3521646, MS35216-46, MS3523349, MS35233-49, MS5195749, MS51957-49, AN515C816, AN515C8-16, AN515C8R16, AN526C832R16, CAV70816B, CAV70-8-16B, G30243360, G302433-60, 00412798000, 1120782049, 112-0782-049, 23070, 412798, 4912532-04, 832X1, 852959, 85854200, 858542-00, 9150140049, 915014-0049, 5305-00-054-6674, 00-054-6674, 5305000546674, 000546674, 491253204
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1961 | 00-054-6674 | 06657 ( SCREW, MACHINE ) |

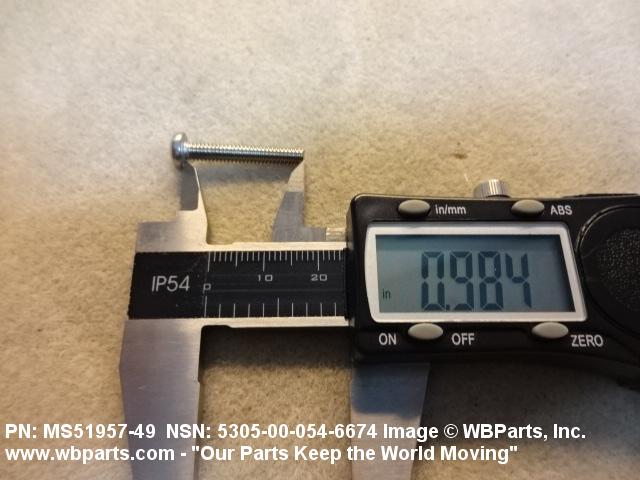

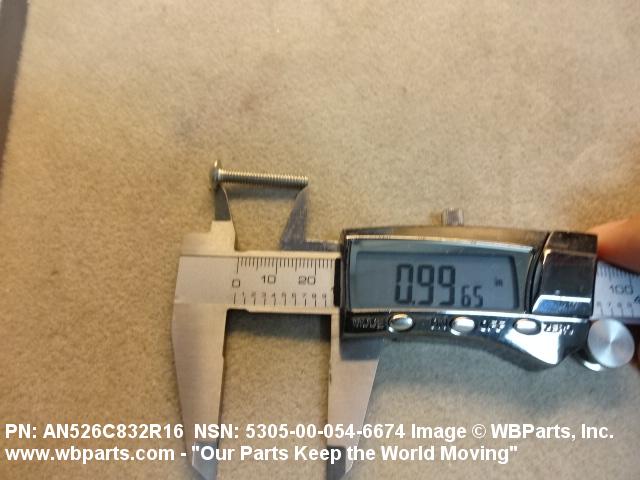

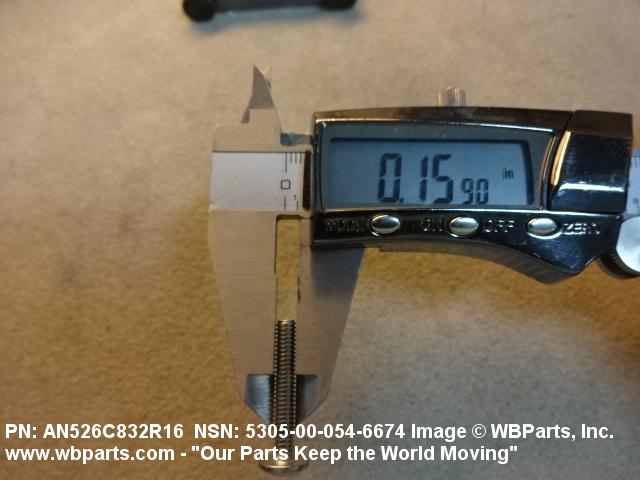

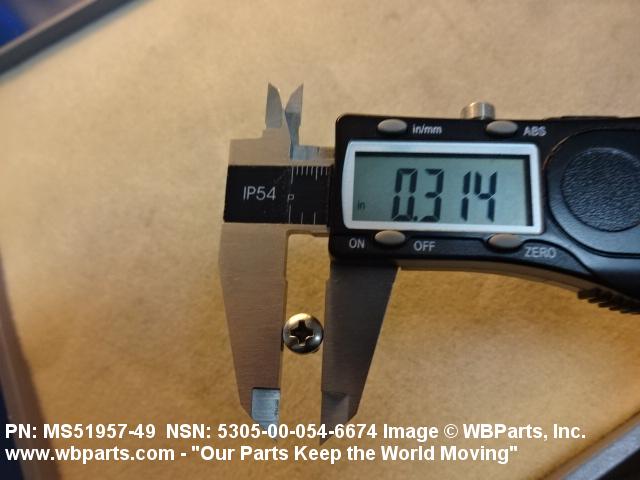

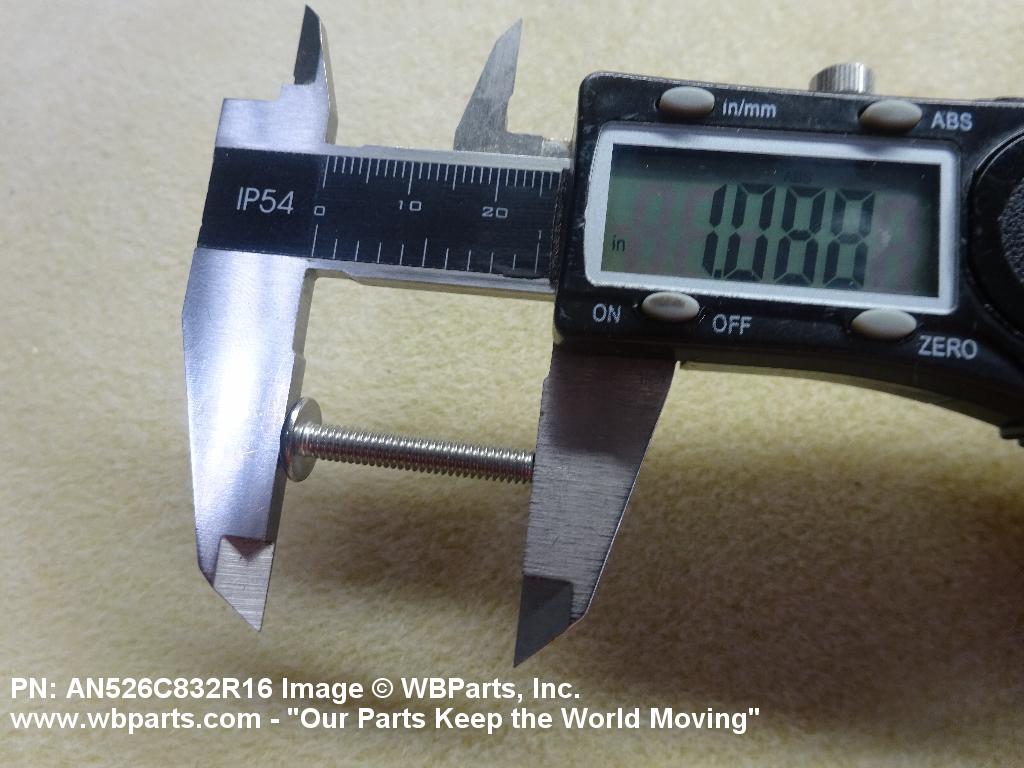

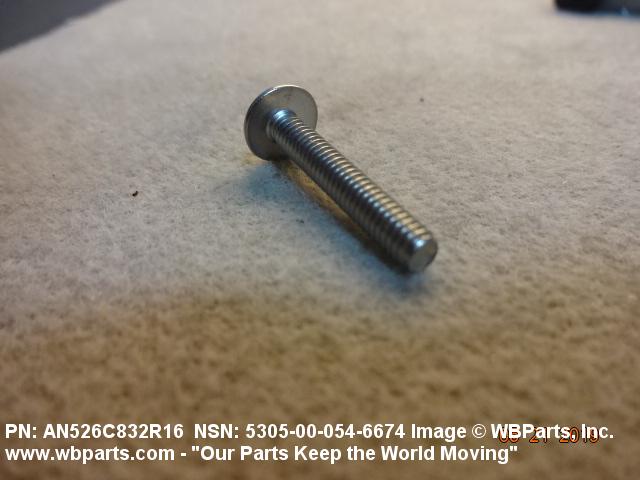

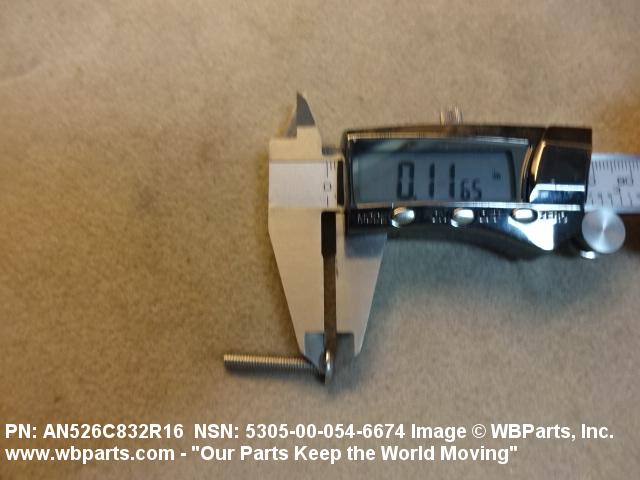

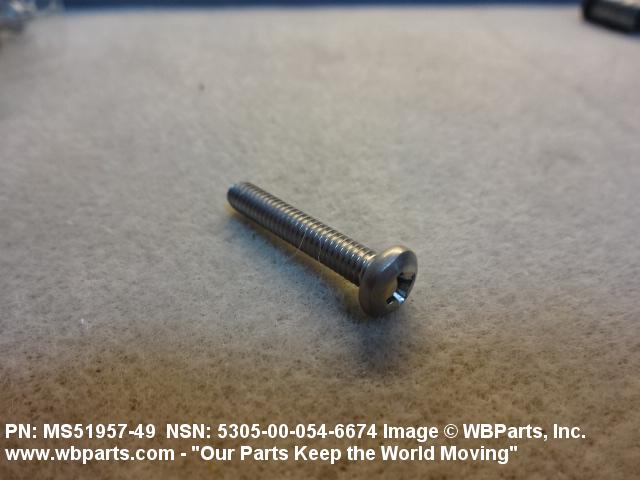

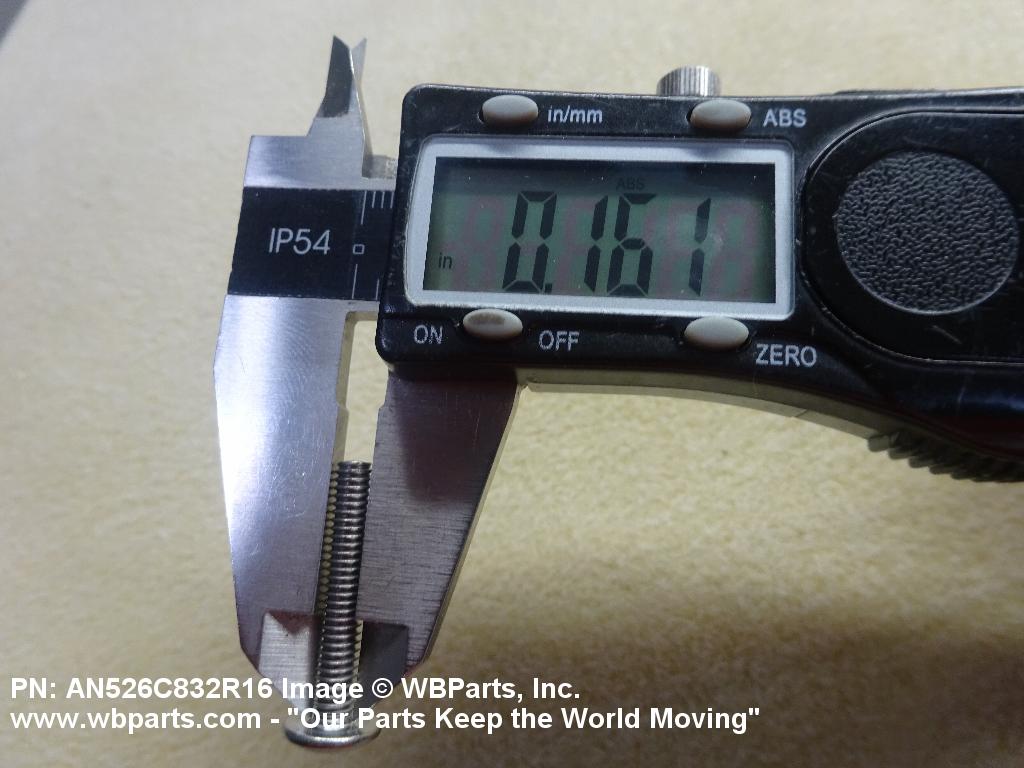

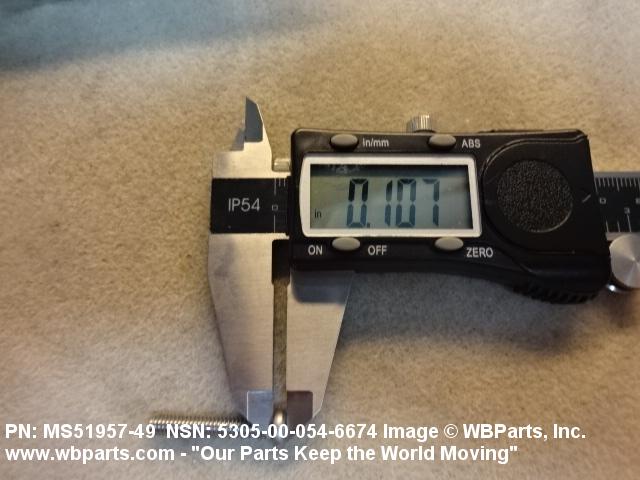

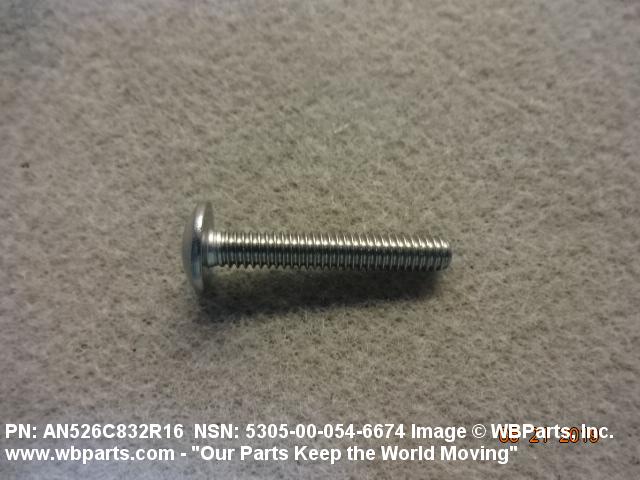

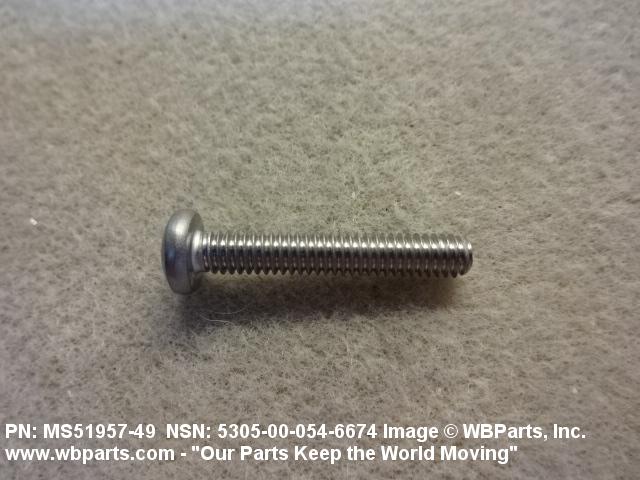

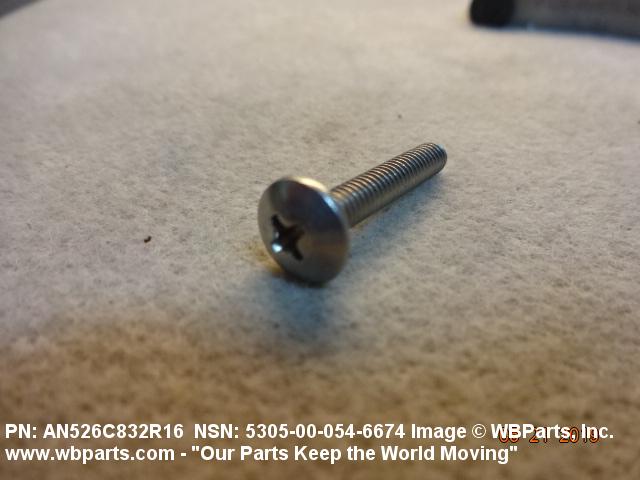

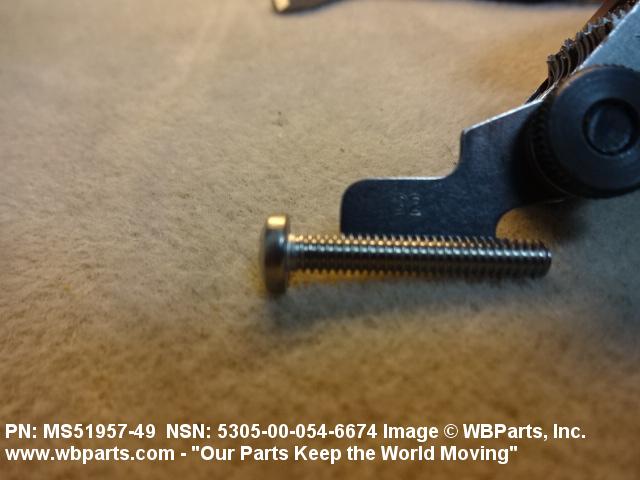

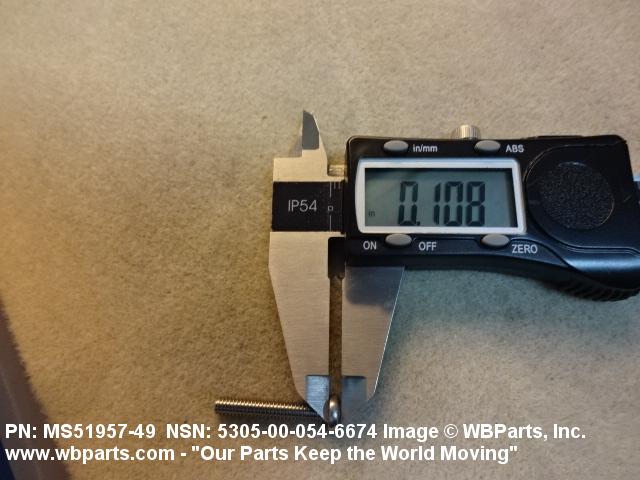

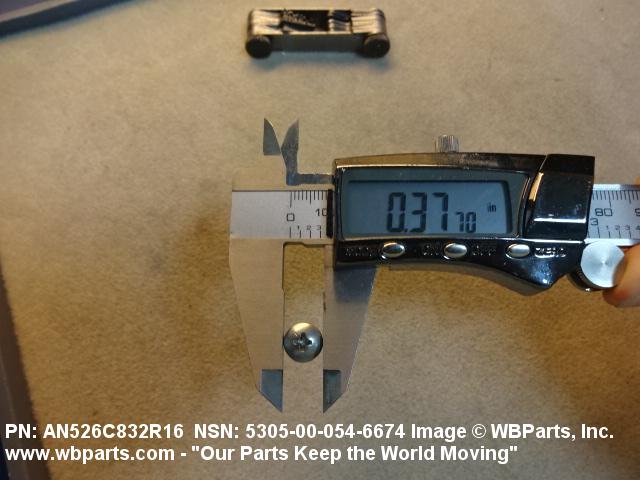

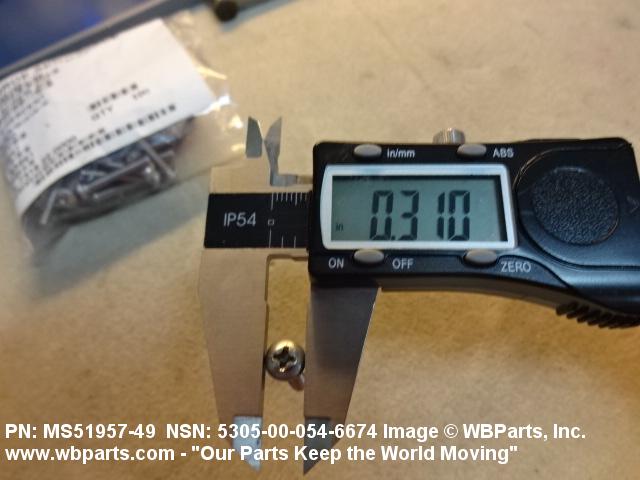

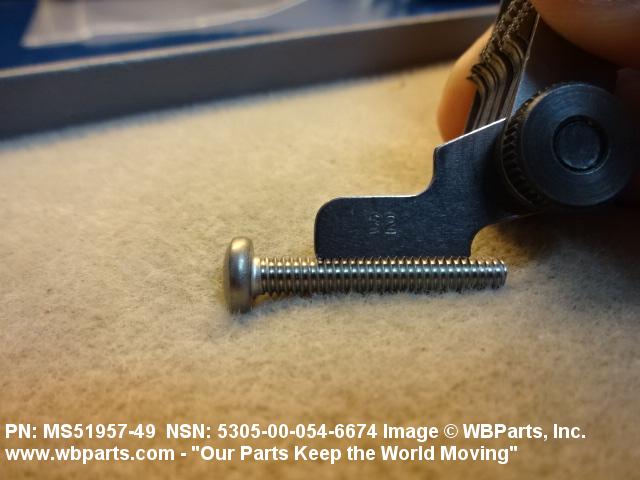

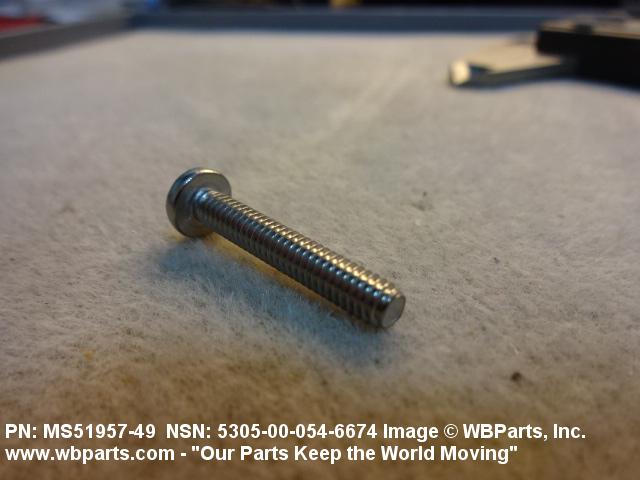

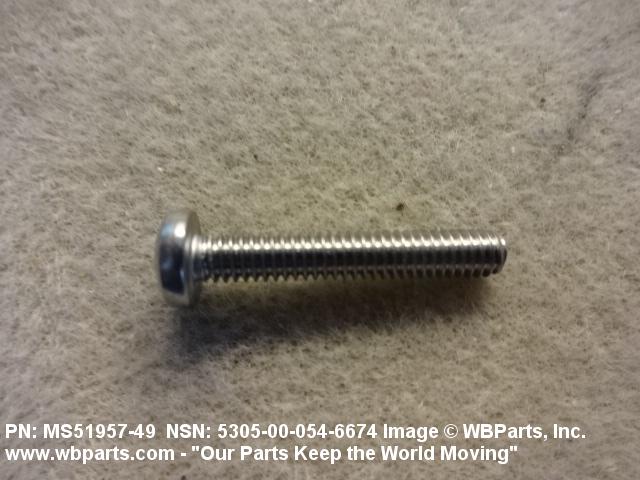

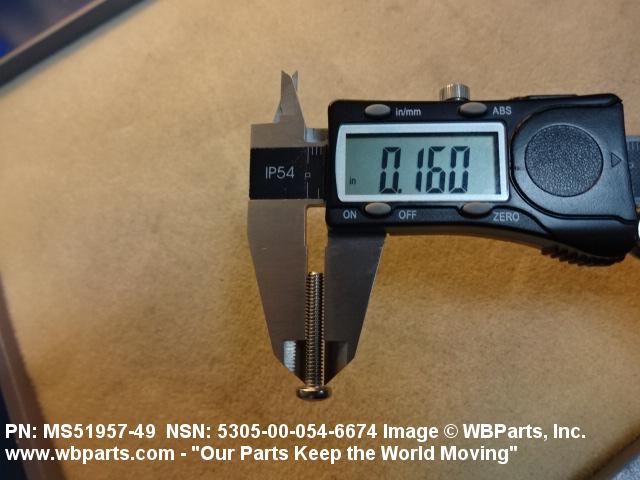

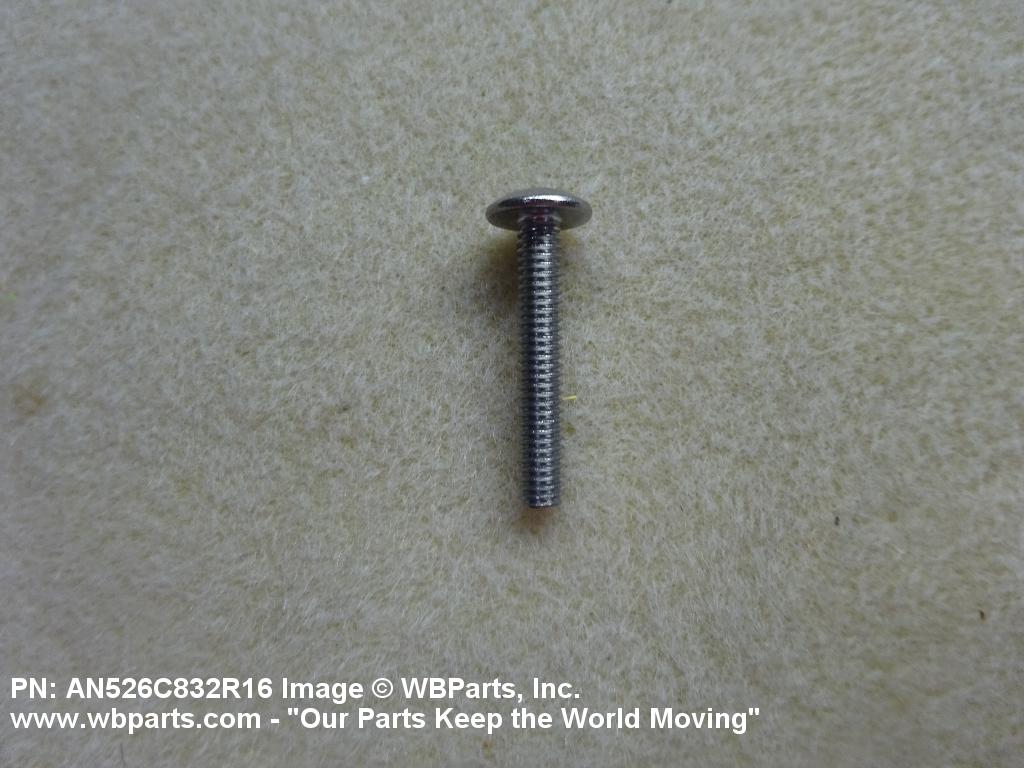

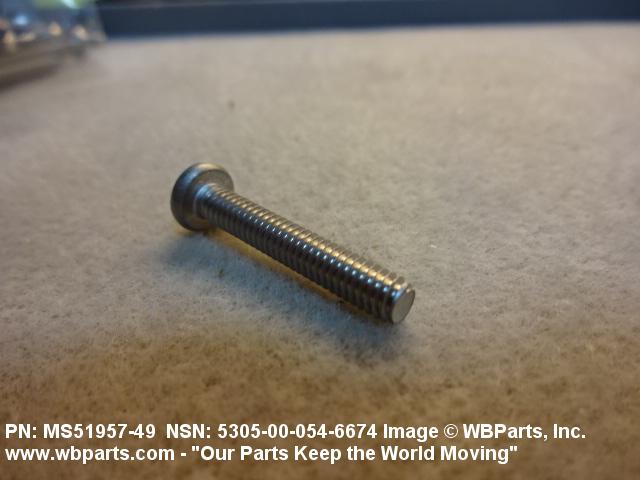

Drawings & Photos | NSN 5305-00-054-6674
Demand History | NSN 5305-00-054-6674
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-00-054-6674 | 2024-10-290 | 1680 | United States |
| MS5195749 | 2022-11-319 | 25 | PK |
| 5305-00-054-6674 | 2020-02-37 | 100 | United States |
| MS5195749 | 2019-04-101 | 100 | United States |
| MS5195749 | 2019-02-45 | 14 | us |
| MS5195749 | 2018-06-156 | 2 | United States |
| MS5195749 | 2014-07-212 | 225 | US |
| MS5195749 | 2014-02-43 | 1 | United States |
| 5305-00-054-6674 | 2013-02-51 | 16 | US |
| 5305-00-054-6674 | 2013-02-51 | 16 | US |
| 5305-00-054-6674 | 2013-02-44 | 16 | US |
| AN526C832R16 | 2011-11-319 | 100 | US |
| MS5195749 | 2011-01-17 | 100 | India |
| 5305-00-054-6674 | 2011-01-05 | 5000 | DIBBS |
| AN526C832R16 | 2010-04-103 | 100 | US |
| 5305-00-054-6674 | 2010-03-88 | 212 | DIBBS |
Cross Reference | NSN 5305-00-054-6674
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 00412798000 | 04DG4 | GENERAL DYNAMICS-OTS, INC. DBA GD-OTS(MARION, VA) |
| 112-0782-049 | 94756 | BOEING COMPANY, THE DBA BOEING |
| 23070 | 1VN02 | AIRDALE EXPRESS LLC |
| 23070 | 73734 | FEDERAL SCREW PRODUCTS INC. |
| 412798 | 04DG4 | GENERAL DYNAMICS-OTS, INC. DBA GD-OTS(MARION, VA) |
| 4912532-04 | 03956 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS |
| 4912532-04 | 90536 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 5305000546674 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 832X1 | 01346 | LODDING INC |
| 852959 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 858542-00 | 32345 | DEFENSE REDUCTION AGENCY |
| 915014-0049 | 65597 | THALES DEFENSE & SECURITY, INC. |
| AN515C8-16 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| AN515C8R16 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| AN526C832R16 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| CAV70-8-16B | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| G302433-60 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS35216-46 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS35233-49 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS51957-49 | 63020 | CRESCENT MANUFACTURING OPERATING COMPANY |
| MS51957-49 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-00-054-6674
Related Products | NSN 5305-00-054-6674
Restrictions/Controls & Freight Information | NSN 5305-00-054-6674
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-00-054-6674
Navy
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | B | Consumable Repair Parts |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 HD : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 HD : Each |
