NSN 5305-00-059-4550 MS3518824, MS35188-24, MS35190235
Product Details | MACHINE SCREW
5305-00-059-4550 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: MS3518824, MS35188-24, MS35190235, MS35190-235, MS3519024, MS35190-24, MS3519224, MS35192-24, MS3519424, MS35194-24, MS3524334, MS35243-34, PT06SE1418P, PT06SE14-18P , FFS92, GC800L81418P, GC800L-814-18P , 855220, 092645K2, 1026-14-171, 1251049184, 125-10491-84, 18243, 18243ADX, 5305-00-059-4550, 00-059-4550, 5305000594550, 000594550, 102614171
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-059-4550 | 06657 ( SCREW, MACHINE ) |

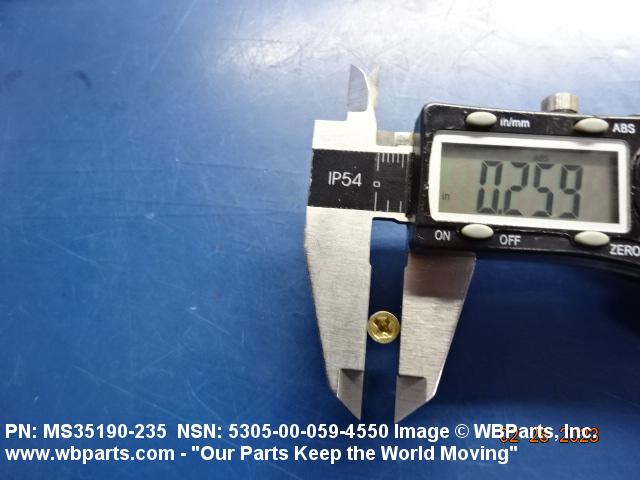

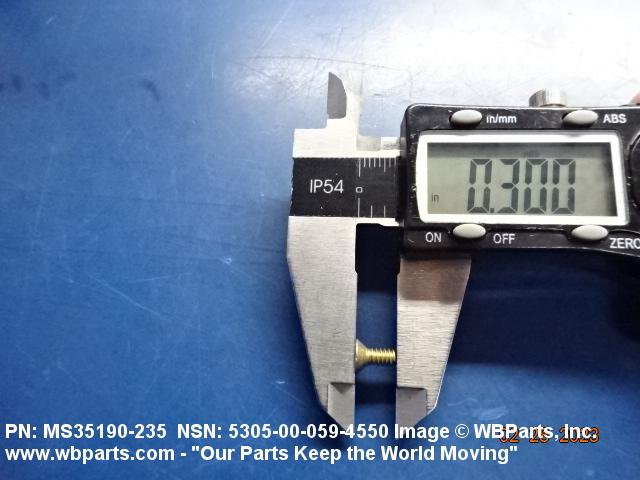

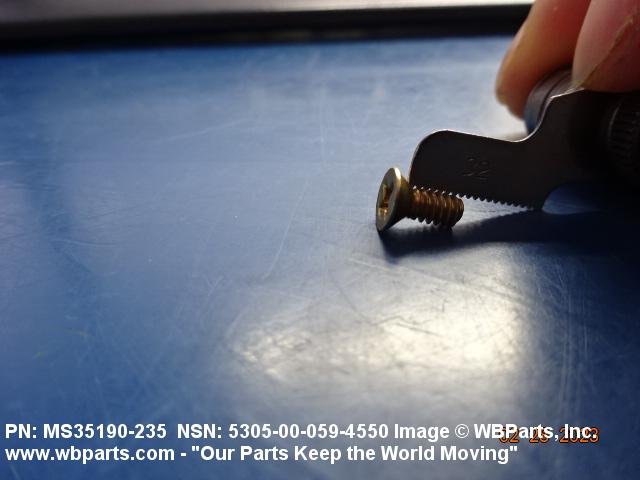

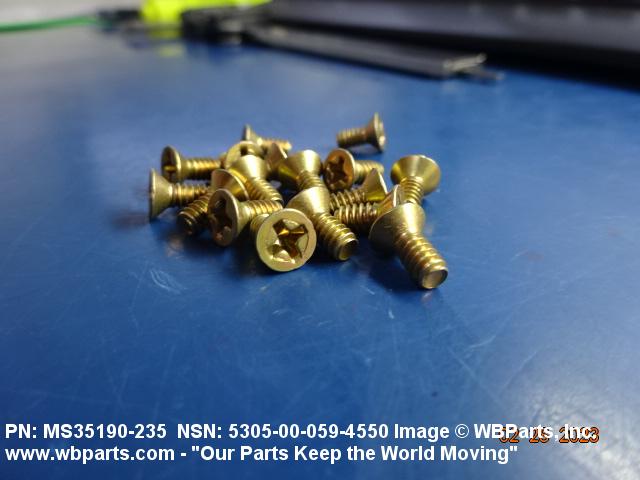

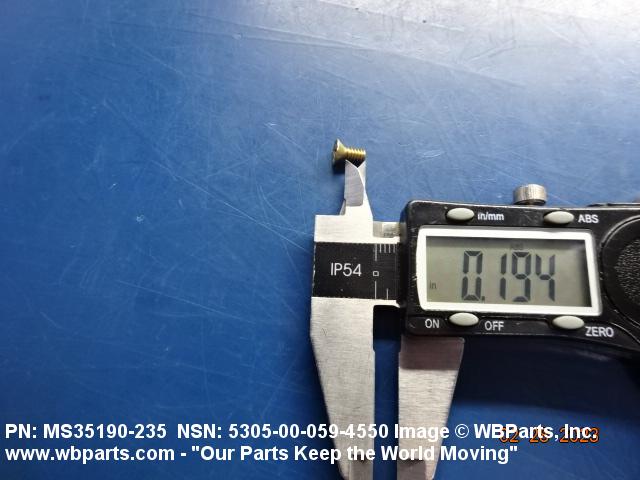

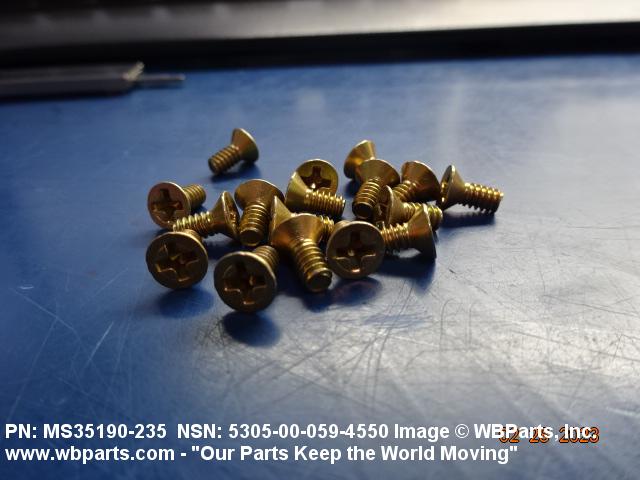

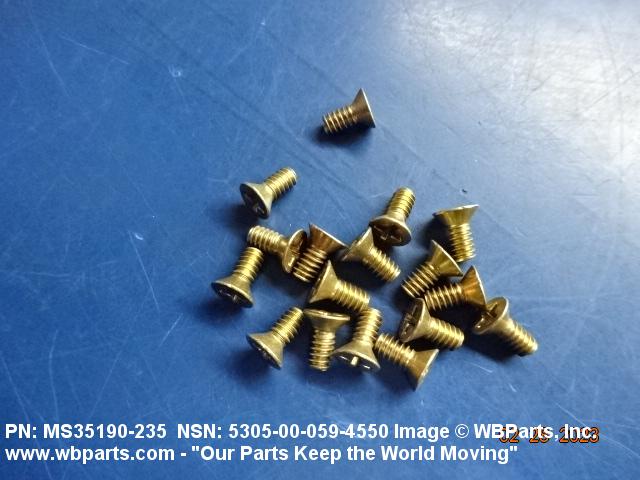

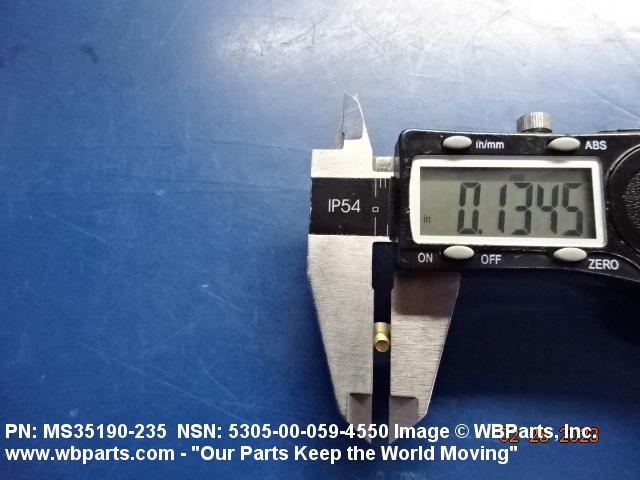

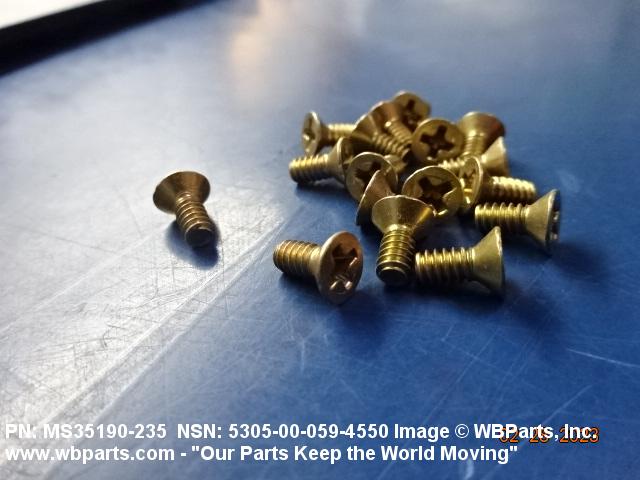

Drawings & Photos | NSN 5305-00-059-4550
Demand History | NSN 5305-00-059-4550
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-00-059-4550 | 2024-03-75 | 4 | United States |
| FFS92 | 2023-08-236 | 14 | US |
| MS35190235 | 2023-01-27 | 4 | United States |
| FFS92 | 2011-02-49 | 5 | US |
| FFS92 | 2011-02-49 | 50 | US |
| FFS92 | 2010-11-323 | 165 | US |
| FFS92 | 2009-12-338 | 100 | US |
| FFS92 | 2009-10-292 | 50 | United States |
| 5305-00-059-4550 | 2008-03-87 | 6618 | DIBBS |
| FFS92 | 2008-03-80 | 50 | United States |
Cross Reference | NSN 5305-00-059-4550
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 092645K2 | 06848 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 1026-14-171 | A0199 | OTO MELARA SPA |
| 125-10491-84 | 04773 | GTE COMMUNICATION SYSTEMS CORP |
| 18243 | 73734 | FEDERAL SCREW PRODUCTS INC. |
| 18243ADX | 1VN02 | AIRDALE EXPRESS LLC |
| 5305000594550 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 855220 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 859085-00 | 32345 | DEFENSE REDUCTION AGENCY |
| FFS92 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| MS35188-24 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS35190-235 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS35190-235 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS35190-24 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS35192-24 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS35194-24 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS35243-34 | 96096 | AMERICAN CARBONIC ENGINEERING CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-059-4550
Technical Data | NSN 5305-00-059-4550
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.138 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.136 INCHES MINIMUM AND 0.229 INCHES MAXIMUM |
| FASTENER LENGTH | 0.281 INCHES MINIMUM AND 0.312 INCHES MAXIMUM |
| SCREW MATERIAL | STEEL |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-634 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-S-637 FED SPEC SINGLE MATERIAL RESPONSE OR 66 FED STD SINGLE MATERIAL RESPONSE |
| SCREW SURFACE TREATMENT | CADMIUM AND CHROMATE |
| SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY 2 CL 3 FED SPEC ALL TREATMENT RESPONSES |
| MINIMUM TENSILE STRENGTH | 60000 POUNDS PER SQUARE INCH |
| HEAD STYLE | A39 FLAT COUNTERSUNK |
| HEAD DIAMETER | 0.244 INCHES MINIMUM AND 0.279 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 80.0 DEGREES MINIMUM AND 82.0 DEGREES MAXIMUM |
| INTERNAL DRIVE STYLE | B1 CROSS RECESS TYPE 1 |
| NONDEFINITIVE SPEC/STD DATA | 3 TYPE AND 2C STYLE |
| III END ITEM IDENTIFICATION | W/S:RADAR SET, FIREFINDER (AN/TPQ-36); TRAINER, B-1B AIRCRAFT; ENGINE, AIRCRAFT, TF-33-P-7 (C-141A/B); CLOSE IN WEAPON SYSTEM (CIWS-PHALANX); HELICOPTER, MH-53E; AIRCRAFT (AC-130H, MC-130H, EC-130E, HC-130); ARMORED SECURITY VEHICLE, MODEL XM1117; MISSILE, AIR INTERCEPT, SIDEWINDER (AIM-9); AIR COMPRESSORS, HIGH PRESSURE |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FFS92 |
Restrictions/Controls & Freight Information | NSN 5305-00-059-4550
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
