NSN 5305-00-059-8251 MS3521426, MS35214-26, FFS92TYPE3STYLE9C
Product Details | MACHINE SCREW
5305-00-059-8251 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: MS3521426, MS35214-26, FFS92TYPE3STYLE9C, 12119, 15245 BLK.OXIDE, 15245 BLK.OXIDEADX, 15245BLKOXIDE, 15245BLKOXIDEADX, 5305-00-059-8251, 00-059-8251, 5305000598251, 000598251
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-059-8251 | 06657 ( SCREW, MACHINE ) |

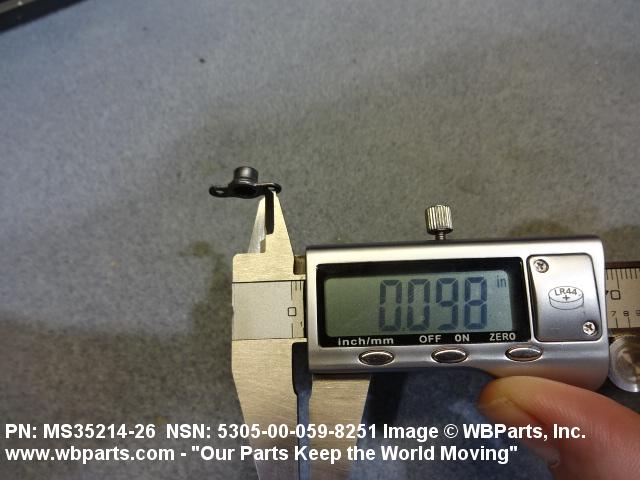

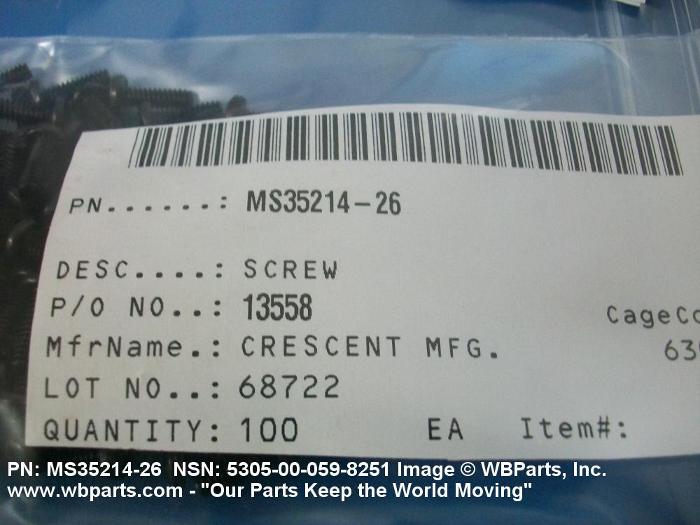

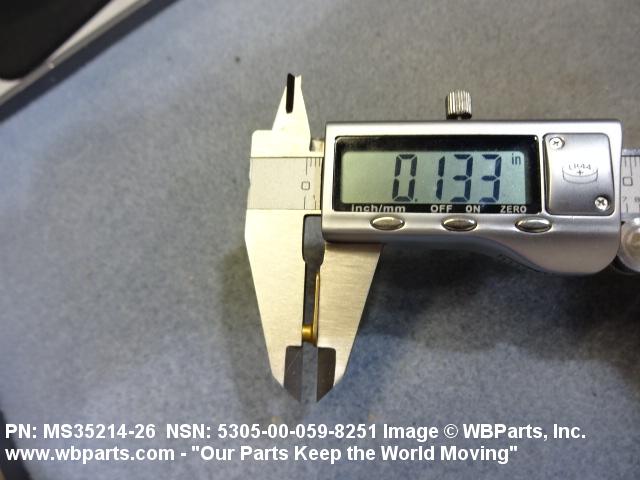

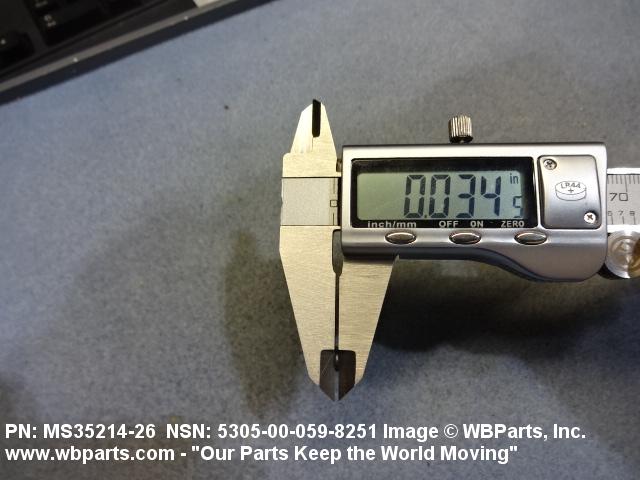

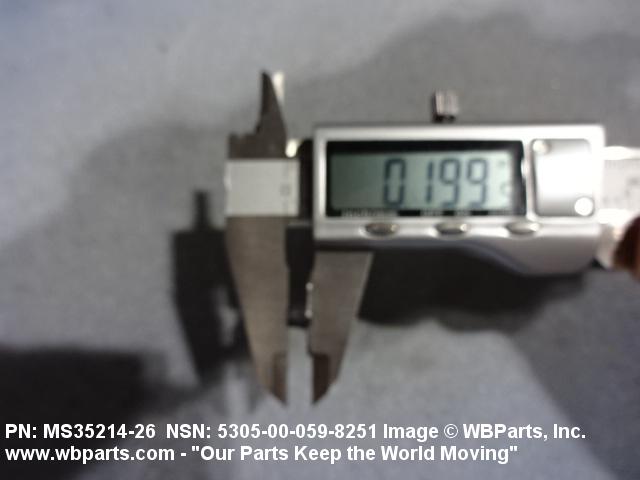

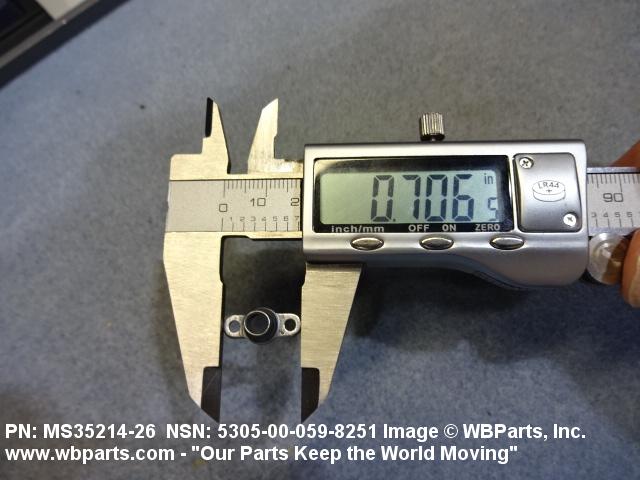

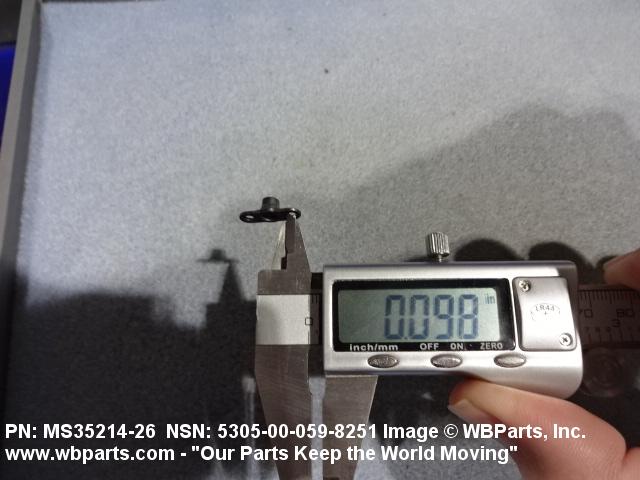

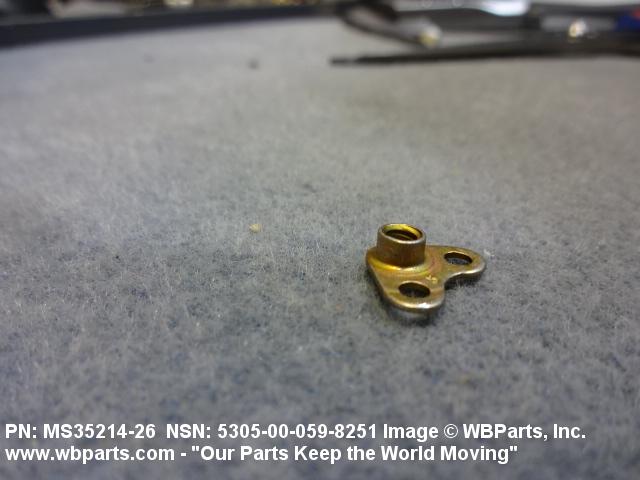

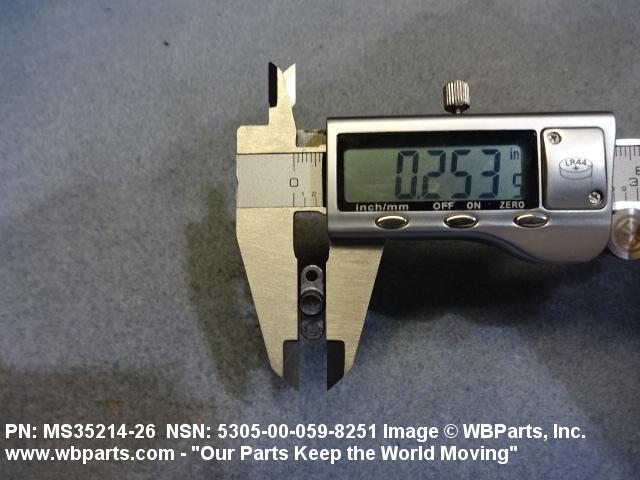

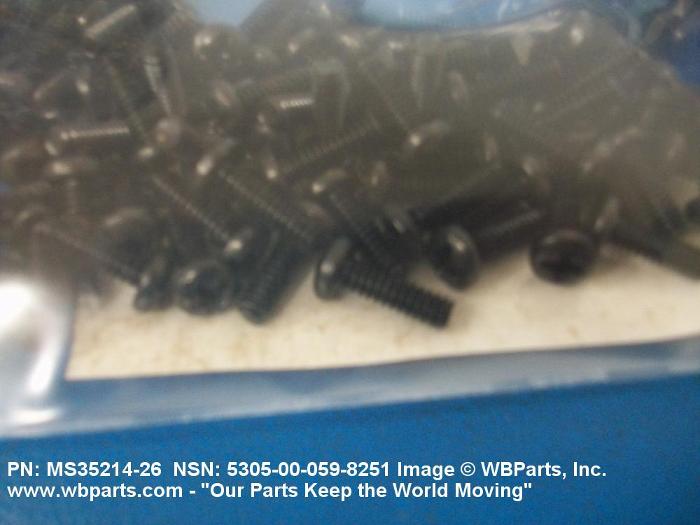

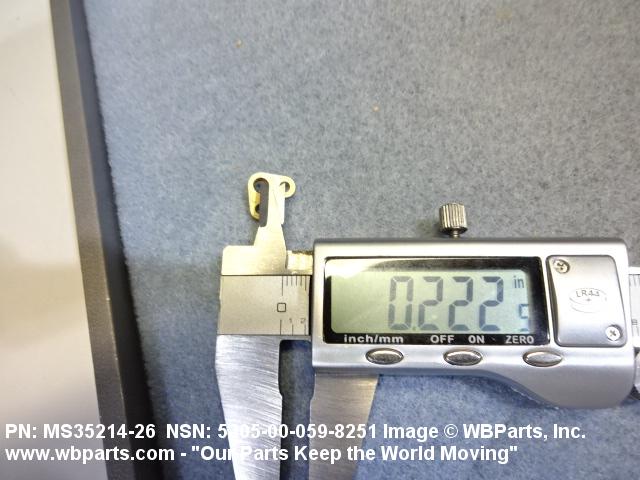

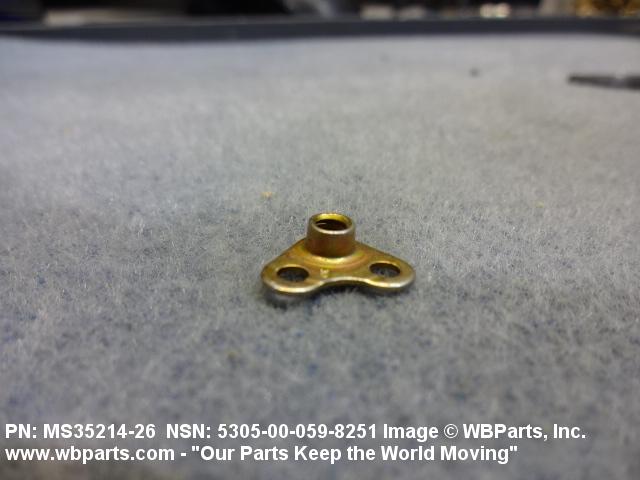

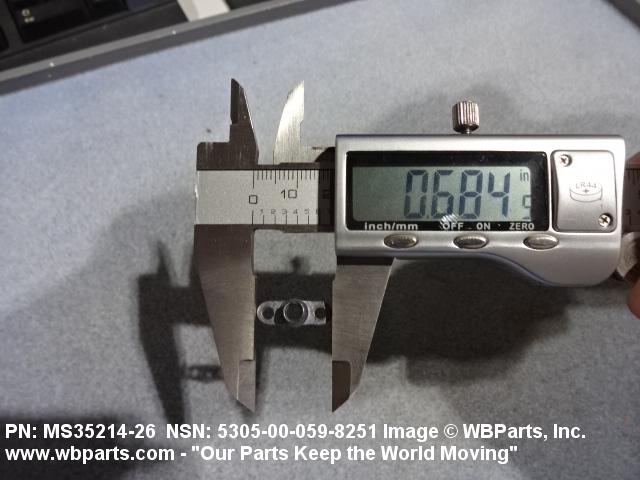

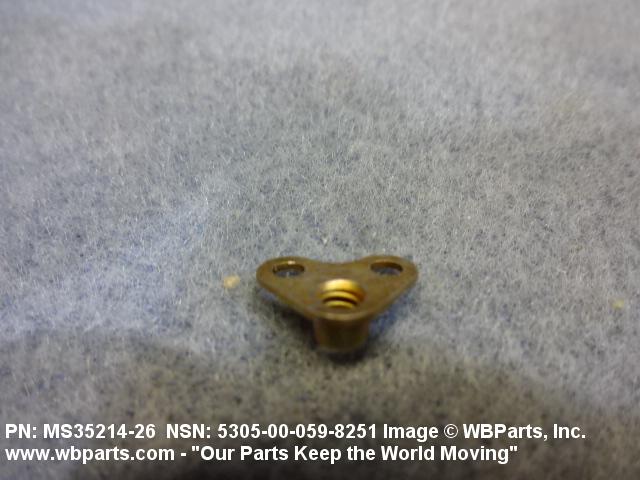

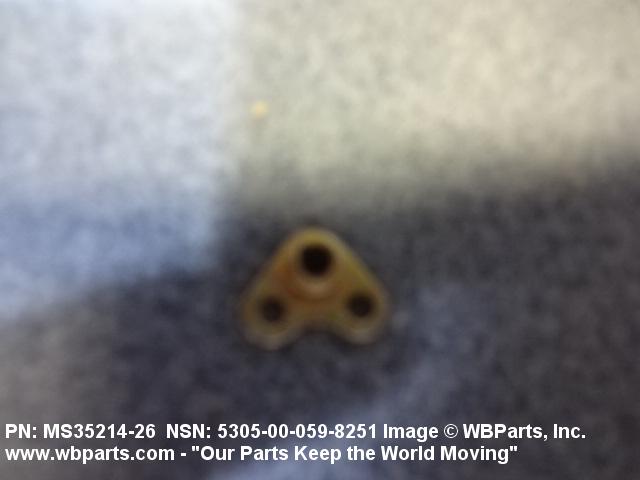

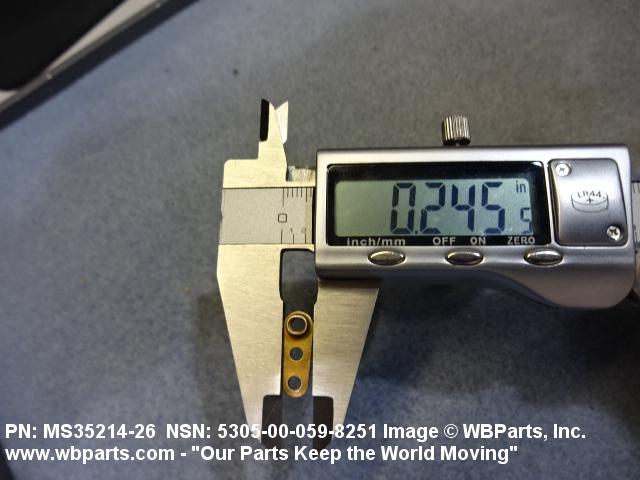

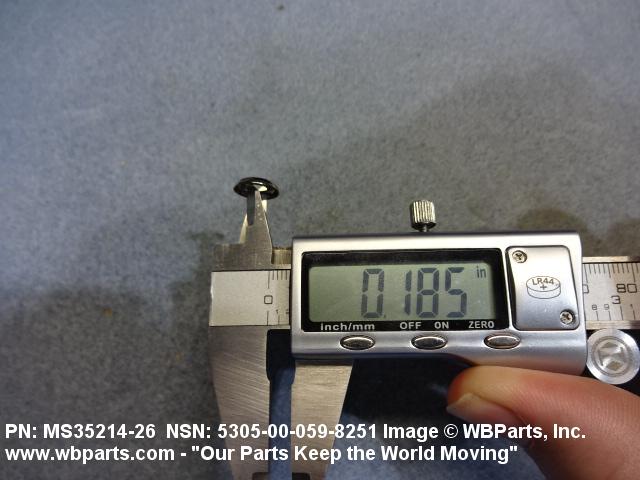

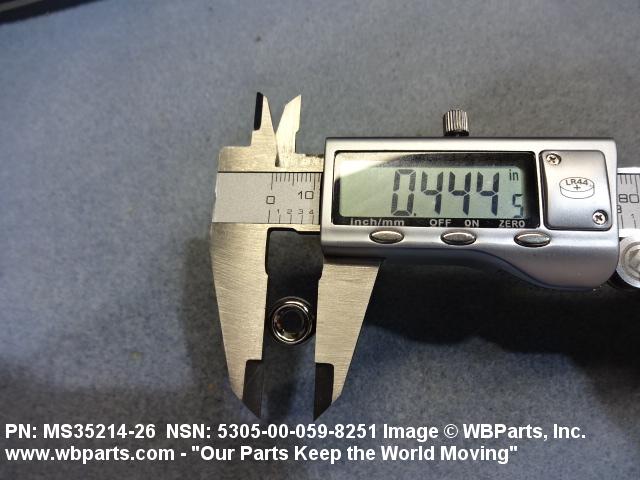

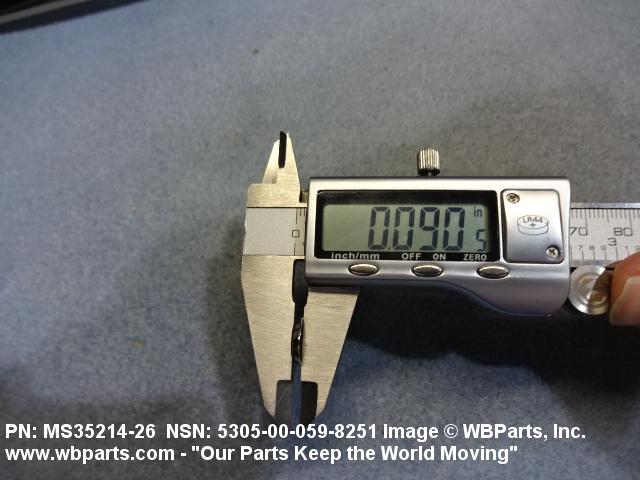

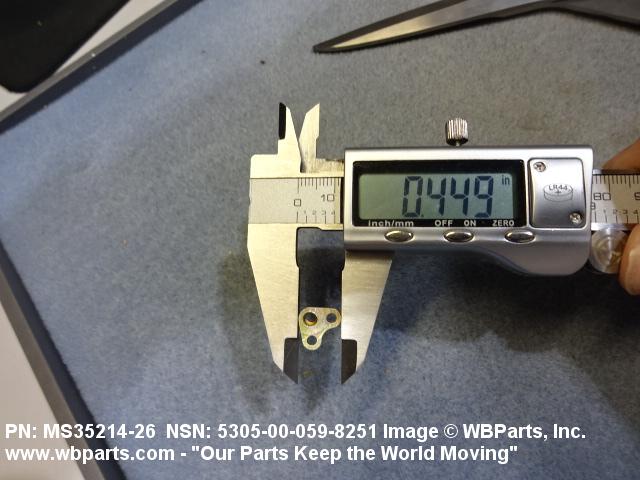

Drawings & Photos | NSN 5305-00-059-8251
Demand History | NSN 5305-00-059-8251
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS3521426 | 2025-10-296 | 100 | US |
| 5305-00-059-8251 | 2025-10-294 | 100 | US |
| 5305-00-059-8251 | 2025-10-294 | 100 | US |
| 5305-00-059-8251 | 2025-10-293 | 100 | DIBBS |
| MS3521426 | 2025-05-140 | 4 | US |
| 5305-00-059-8251 | 2025-04-93 | 189 | DIBBS |
| MS3521426 | 2024-10-291 | 250 | PH |
| MS3521426 | 2024-08-242 | 20 | BR |
| MS3521426 | 2024-07-183 | 30 | Saudi Arabia |
| MS3521426 | 2024-05-134 | 4 | US |
| 5305-00-059-8251 | 2024-04-106 | 142 | DIBBS |
| 5305-00-059-8251 | 2023-07-192 | 30 | US |
| MS3521426 | 2018-05-134 | 120 | United States |
| MS35214-26 | 2016-07-211 | 540 | JP |
| MS35214-26 | 2016-07-211 | 540 | JP |
| MS35214-26 | 2012-11-310 | 50 | |
| MS3521426 | 2011-09-249 | 2 | South Korea |
Cross Reference | NSN 5305-00-059-8251
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12119 | 82423 | KLEINSCHMIDT INC |
| 15245 BLK.OXIDE | 73734 | FEDERAL SCREW PRODUCTS INC. |
| 15245 BLK.OXIDEADX | 1VN02 | AIRDALE EXPRESS LLC |
| FFS92TYPE3STYLE9C | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| MS35214-26 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS35214-26 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-059-8251
Technical Data | NSN 5305-00-059-8251
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.138 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.376 INCHES MINIMUM AND 0.438 INCHES MAXIMUM |
| FASTENER LENGTH | 0.438 INCHES NOMINAL |
| SCREW MATERIAL | COPPER ALLOY |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | QQ-B-626 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-W-321 FED SPEC SINGLE MATERIAL RESPONSE |
| MINIMUM TENSILE STRENGTH | 57000 POUNDS PER SQUARE INCH |
| HEAD STYLE | A23 PAN |
| HEAD DIAMETER | 0.256 INCHES MINIMUM AND 0.270 INCHES MAXIMUM |
| HEAD HEIGHT | 0.087 INCHES MINIMUM AND 0.097 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | B1 CROSS RECESS TYPE 1 |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FFS92TYPE3STYLE9C |
Restrictions/Controls & Freight Information | NSN 5305-00-059-8251
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5305-00-059-8251
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 HD : Each |
