NSN 5305-00-063-3503 MS2469350, MS24693-50, MS24693S50

Product Details | MACHINE SCREW

5305-00-063-3503 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.

Part Alternates: MS2469350, MS24693-50, MS24693S50, MS24693-S50, NAS514P8328, NAS514P832-8, B128988, B1289-8-8, S108751088, S1087510-8-8, RY8005832R8, RY8005-832R8, 3MFR507832R8, 3MFR507-832R8, 803203, 933.45.16.140, 9334516140, 984058, B32, 5305-00-063-3503, 00-063-3503, 5305000633503 , 5305009977015, 000633503

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-063-3503	06657 ( SCREW, MACHINE )

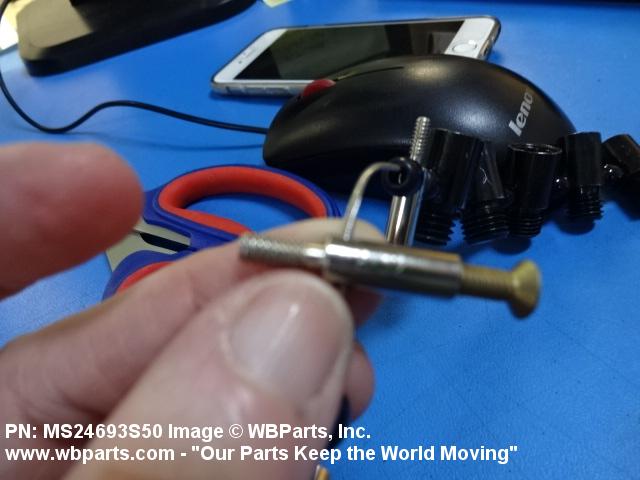

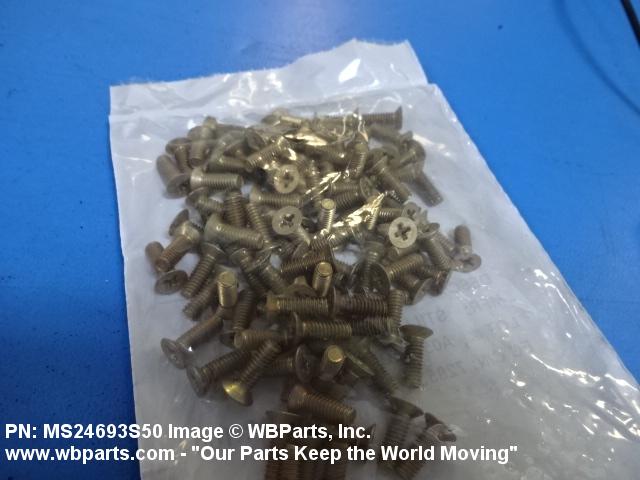

Drawings & Photos | NSN 5305-00-063-3503

Part Number	Request Date	QTY	Origin
MS24693S50	2025-05-140	4	US
NAS514P8328	2024-10-281	4	United Kingdom
MS24693S50	2024-05-122	1700	us
NAS514P8328	2024-01-24	4700	Czech Republic
MS24693S50	2023-12-361	4	Malta
MS24693S50	2023-09-269	1	US
MS2469350	2021-06-161	1000	us
MS2469350	2021-06-161	1600	us
MS2469350	2021-06-161	2100	us
NAS514P8328	2020-10-282	1	RU
NAS514P832-8	2020-05-150	10	India
5305-00-063-3503	2019-07-211	100	us
MS24693-S50	2015-08-217	52	United States
NAS514P8328	2014-08-218	24	Serbia
NAS514P8328	2014-06-164	19	Singapore
MS24693S50	2013-12-340	300	Germany
NAS514P8328	2013-02-53	1	us
NAS514P8328	2013-02-52	100	United States
MS24693S50	2012-11-310	50
NAS514P8328	2012-02-32	5	United States
MS2469350	2011-09-257	100	Pakistan
MS2469350	2011-09-256	100	Canada
5305-00-063-3503	2011-03-84	12	US
MS24693S50	2011-03-73	12	US
MS2469350	2011-02-47	180	United States
B32	2010-07-201	20	United States
NAS514P8328	2010-05-126	90	US
NAS514P8328	2010-05-123	90	US
5305-00-063-3503	2009-05-121	24	US
5305-00-063-3503	2009-03-77	100	US
5305-00-063-3503	2008-11-315	443	DIBBS
5305-00-063-3503	2008-09-268	113	US
5305-00-063-3503	2008-08-224	40	US
5305-00-063-3503	2008-07-192	40	MX

Cross Reference | NSN 5305-00-063-3503

Part Number	Cage Code	Manufacturer
3MFR507-832R8	76301	BOEING COMPANY, THE DBA BOEING
5305000633503	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5305009977015	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
803203	19203	PICATINNY ARSENAL
933.45.16.140	S4080	PILATUS AIRCRAFT LTD
984058	F0754	SOC EXPLOITATION MATERIELS MARTINBAKER
B1289-8-8	43999	BOEING COMPANY, THE DBA BOEING
B32	98897	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS
MS24693-50	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS24693-S50	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS24693-S50	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS24693S50	60144	UNIFAB INDUSTRIES INC
MS24693S50	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
NAS514P832-8	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
RY8005-832R8	78022	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE
S1087510-8-8	18355	BOEING COMPANY, THE DBA BOEING
S1087510-8-8	88277	BOEING COMPANY, THE DBA BOEING

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-063-3503

Compare

Related Products | NSN 5305-00-063-3503

5305-00-063-3504, 5305-00-063-3507, 5305-00-063-3509, 5305-00-063-3810, 5305-00-063-3834

Technical Data | NSN 5305-00-063-3503

Characteristic	Specifications
THREAD SERIES DESIGNATOR	UNC
NOMINAL THREAD DIAMETER	0.164 INCHES
THREAD QUANTITY PER INCH	32
THREAD CLASS	2A
THREAD DIRECTION	RIGHT-HAND
THREAD LENGTH	0.438 INCHES MINIMUM AND 0.500 INCHES MAXIMUM

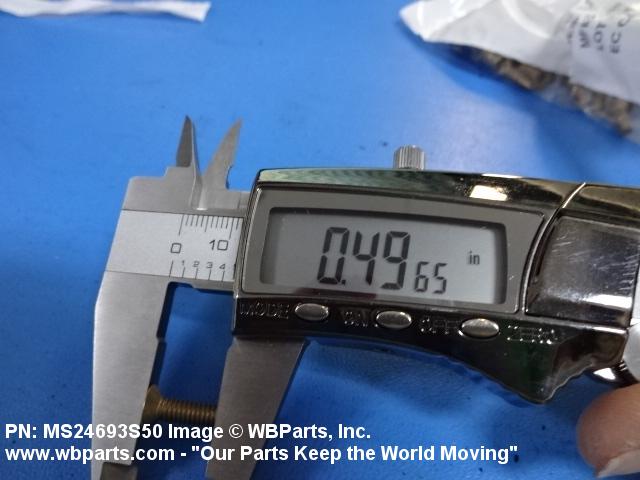

FASTENER LENGTH	0.500 INCHES NOMINAL
SCREW MATERIAL	STEEL COMP 1010
SCREW MATERIAL DOCUMENT AND CLASSIFICATION	QQ-S-630 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-S-631 FED SPEC SINGLE MATERIAL RESPONSE OR QQ-S-634 FED SPEC SINGLE MATERIAL RESPONSE
SCREW SURFACE TREATMENT	CADMIUM AND CHROMATE
SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416 TY 2 CL 3 FED SPEC SINGLE TREATMENT RESPONSE
MINIMUM TENSILE STRENGTH	60000 POUNDS PER SQUARE INCH
HEAD STYLE	A39 FLAT COUNTERSUNK

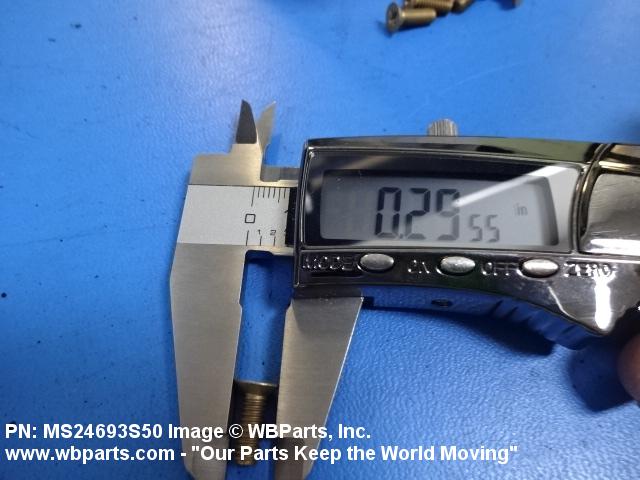

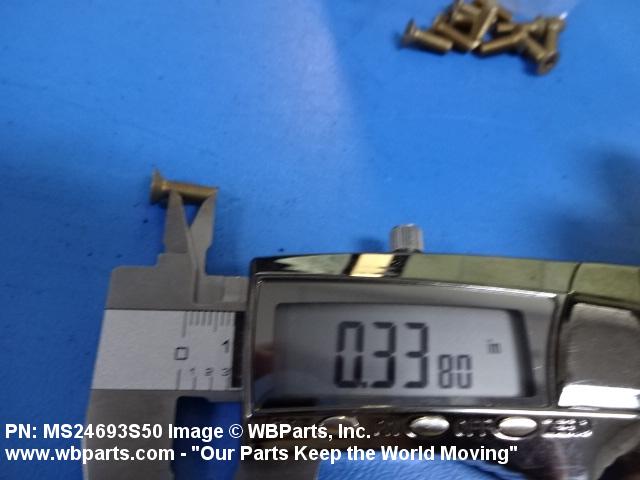

HEAD DIAMETER	0.285 INCHES MINIMUM AND 0.332 INCHES MAXIMUM
COUNTERSINK ANGLE	99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM
INTERNAL DRIVE STYLE	B1 CROSS RECESS TYPE 1

Restrictions/Controls & Freight Information | NSN 5305-00-063-3503

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	F	The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP).
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-00-063-3503

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
