NSN 5305-00-069-0301 NAS1352C046, NAS1352C04-6, B68161
Product Details | SOCKET HEAD CAP SCREW
5305-00-069-0301 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.
Part Alternates: NAS1352C046, NAS1352C04-6, B68161, 9474630406, 947463-0406, 947463-406, 10124957 , 15650103-6, 1C6368P06, 4606804046S, 46068-04046S, 5305-00-069-0301, 00-069-0301, 5305000690301, 000690301, 156501036, 947463406
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-069-0301 | 16282 ( SCREW, CAP, SOCKET HEAD ) |

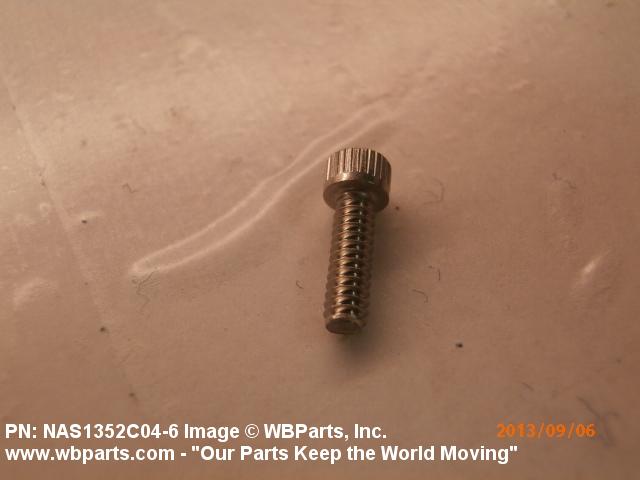

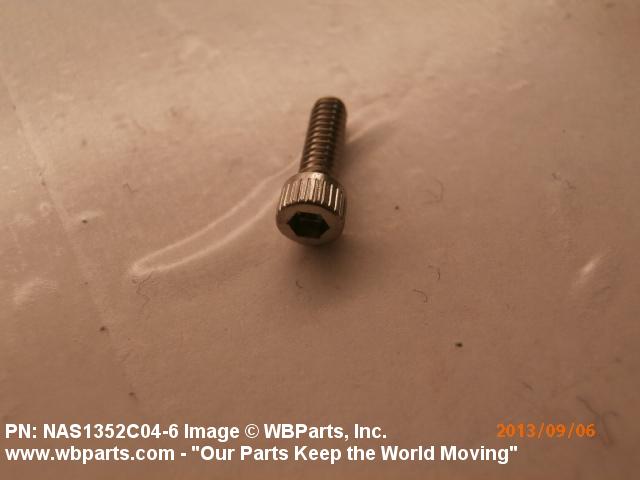

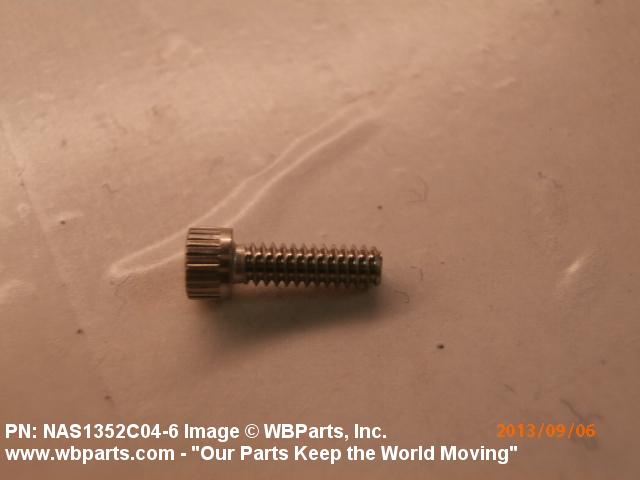

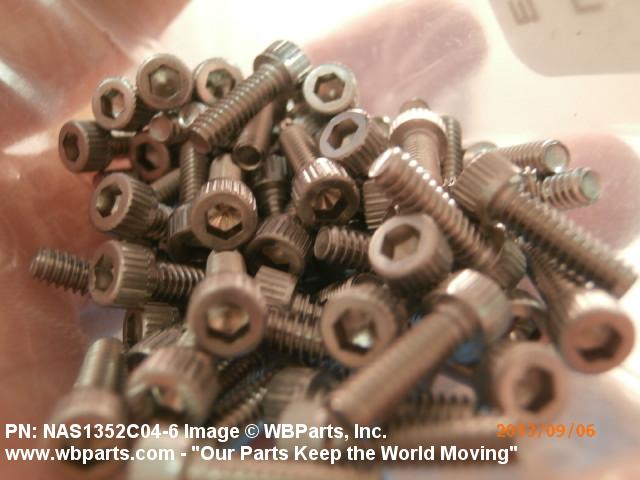

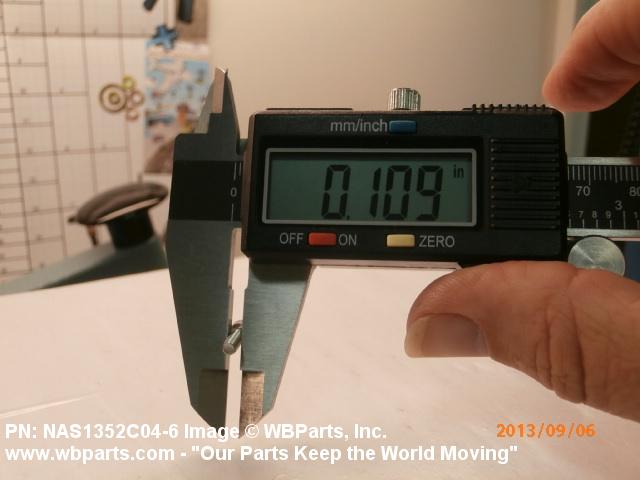

Drawings & Photos | NSN 5305-00-069-0301
Demand History | NSN 5305-00-069-0301
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1352C046 | 2024-04-94 | 20 | MA |
| 5305-00-069-0301 | 2023-10-284 | 50 | United States |
| NAS1352C046 | 2022-10-284 | 3 | United States |
| NAS1352C046 | 2020-12-352 | 425 | United States |
| NAS1352C046 | 2020-09-260 | 280 | United States |
| NAS1352C046 | 2020-04-119 | 500 | United States |
| NAS1352C046 | 2019-04-91 | 8 | India |
| NAS1352C046 | 2018-12-352 | 425 | United States |
| NAS1352C046 | 2018-05-128 | 100 | US |
| NAS1352C046 | 2017-05-144 | 415 | United States |
| NAS1352C046 | 2017-02-37 | 60 | US |
| NAS1352C046 | 2016-04-95 | 410 | United States |
| NAS1352C046 | 2016-03-63 | 50 | us |
| NAS1352C046 | 2016-03-63 | 50 | us |
| NAS1352C046 | 2015-12-336 | 700 | United States |
| NAS1352C046 | 2015-05-146 | 420 | United States |
| NAS1352C046 | 2015-02-57 | 1000 | KR |
| NAS1352C046 | 2015-02-42 | 210 | United States |
| NAS1352C046 | 2014-01-31 | 1000 | United States |
| 5305-00-069-0301 | 2014-01-07 | 80 | DIBBS |
| NAS1352C046 | 2013-08-224 | 210 | United States |
| NAS1352C046 | 2013-07-189 | 420 | United States |
| NAS1352C046 | 2013-02-52 | 420 | United States |
| NAS1352C046 | 2012-11-318 | 25 | us |
| NAS1352C046 | 2012-10-293 | 420 | United States |
| NAS1352C046 | 2012-09-270 | 215 | United States |
| NAS1352C046 | 2012-04-93 | 210 | United States |
| NAS1352C046 | 2012-04-93 | 300 | United States |
| NAS1352C046 | 2012-01-18 | 400 | United States |
| NAS1352C046 | 2012-01-11 | 28 | United States |
| NAS1352C046 | 2011-10-285 | 400 | United States |
| NAS1352C046 | 2011-09-250 | 1000 | United States |
| NAS1352C046 | 2011-07-202 | 130 | United States |
| 5305-00-069-0301 | 2011-06-179 | 12 | US |
| NAS1352C046 | 2011-05-126 | 500 | US |
| NAS1352C046 | 2011-05-125 | 315 | United States |
| NAS1352C046 | 2011-03-89 | 510 | United States |
| NAS1352C046 | 2010-08-223 | 3 | United States |
| 5305-00-069-0301 | 2009-07-190 | 6 | US |
| NAS1352C046 | 2008-09-261 | 420 | IL |
| NAS1352C046 | 2008-09-261 | 420 | IL |
| NAS1352C046 | 2008-09-261 | 420 | IL |
| NAS1352C046 | 2008-05-133 | 5 | us |
| NAS1352C046 | 2008-05-127 | 100 | United States |
Cross Reference | NSN 5305-00-069-0301
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 15650103-6 | F6151 | SAFRAN |
| 1C6368P06 | 07482 | GENERAL ELECTRIC COMPANY DBA GE |
| 46068-04046S | 27914 | HONEYWELL INTERNATIONAL INC DBA HONEYWELL |
| 947463-0406 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| 947463-406 | 06481 | NORTHROP GRUMMAN SYSTEMS CORPORATION |
| 947463-406 | 13973 | LITTON SYSTEMS INC. DIV NAVIGATION SYSTEMS DIVISION |
| B68161 | K0967 | MBDA UK LTD |
| NAS1352C04-6 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5305-00-069-0301
Related Products | NSN 5305-00-069-0301
Technical Data | NSN 5305-00-069-0301
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.112 INCHES |
| THREAD QUANTITY PER INCH | 40 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.341 INCHES MINIMUM AND 0.375 INCHES MAXIMUM |

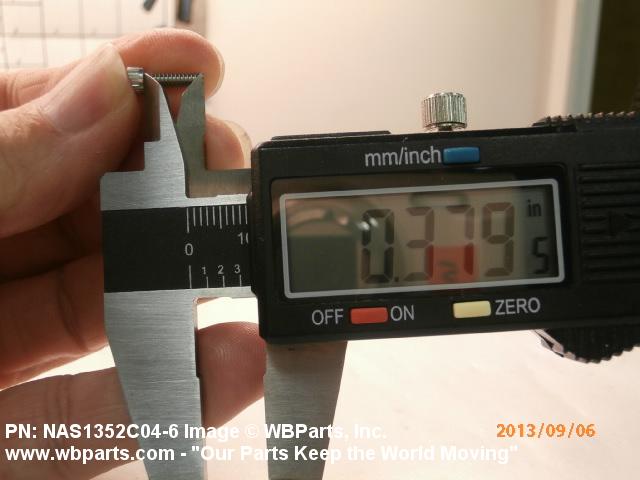

| FASTENER LENGTH | 0.375 INCHES NOMINAL |
| MATERIAL | STEEL COMP 302 OR STEEL COMP 303 OR STEEL COMP 304 OR STEEL COMP 305 OR STEEL COMP 316 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD ALL MATERIAL RESPONSES OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 80.0 ROCKWELL B MINIMUM OVERALL |
| MINIMUM TENSILE STRENGTH | 80000 POUNDS PER SQUARE INCH |
| MINIMUM YIELD STRENGTH | 30000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C49 FLAT CHAMFER |

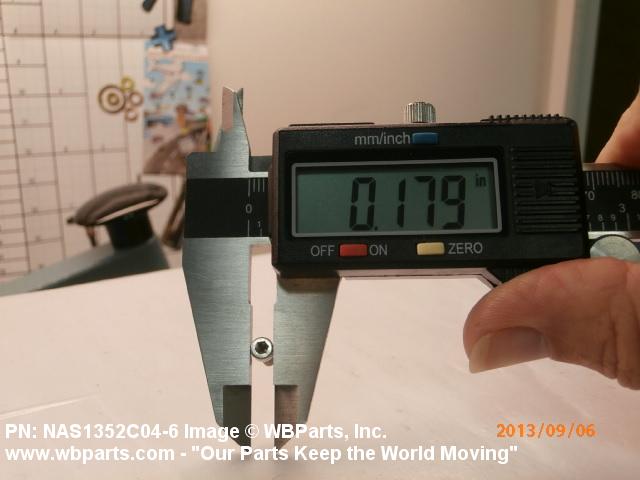

| HEAD DIAMETER | 0.176 INCHES MINIMUM AND 0.183 INCHES MAXIMUM |

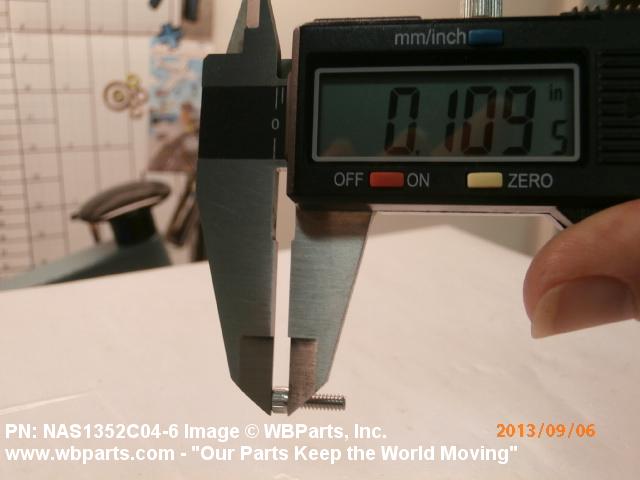

| HEAD HEIGHT | 0.108 INCHES MINIMUM AND 0.112 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | D5 HEXAGON |

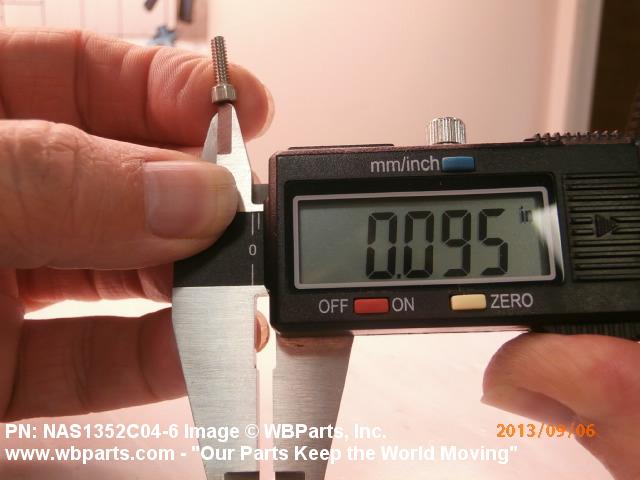

| WIDTH ACROSS FLATS | 0.094 INCHES MINIMUM AND 0.095 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5305-00-069-0301
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | U | 50 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-00-069-0301
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
