NSN 5305-00-071-2074 MS90728118, MS90728-118, B1821AH050C275N
Product Details | HEXAGON HEAD CAP SCREW
5305-00-071-2074 An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. Excludes BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; and SCREW,CAP,SOCKET HEAD.
Part Alternates: MS90728118, MS90728-118, B1821AH050C275N, B1821BH050C275N, D301293 FIND 4, D301293FIND4, ESP-B-2.121-PP , ESPB2121PP, 5305PL0780993 , 8552A, 0014772, 0400149, 10383831 , 1129E01 ITEM 186, 1129E01ITEM186, 14554394118, 145-543-94118, 179892, 180188, 1D41423003, 1D41423-003, 404426, 5305-00-071-2074, 00-071-2074, 5305000712074, 000712074
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-071-2074 | 18257 ( SCREW, CAP, HEXAGON HEAD ) |

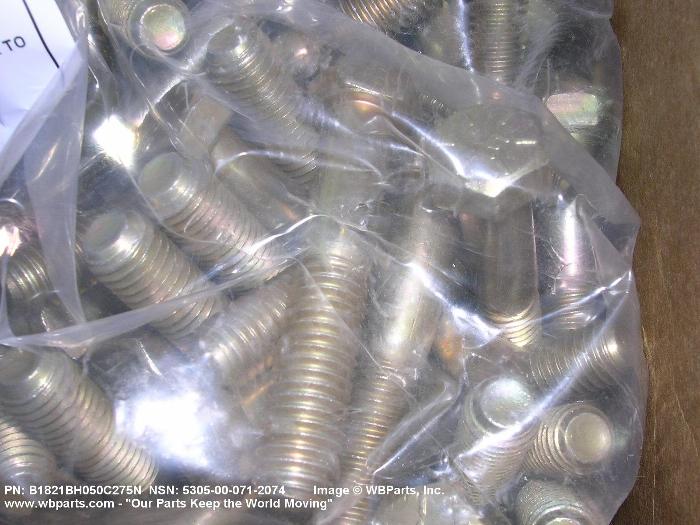

Drawings & Photos | NSN 5305-00-071-2074
Demand History | NSN 5305-00-071-2074
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-00-071-2074 | 2024-05-141 | 42 | DIBBS |
| 5305-00-071-2074 | 2024-03-74 | 31 | DIBBS |
| 5305-00-071-2074 | 2023-12-346 | 1 | US |
| MS90728118 | 2016-09-258 | 30 | United States |
| B1821BH050C275N | 2014-03-71 | 667 | United States |
| 5305-00-071-2074 | 2012-09-248 | 3862 | DIBBS |
| 5305-00-071-2074 | 2012-07-184 | 1571 | DIBBS |
| 5305-00-071-2074 | 2009-07-203 | 1281 | DIBBS |
| B1821BH050C275N | 2008-09-261 | 400 | United States |
| B1821AH050C275N | 2008-07-204 | 255 | United States |
| B1821BH050C275N | 2007-12-352 | 500 | United States |
| 180188 | 2007-10-304 | 90 | Italy |
Cross Reference | NSN 5305-00-071-2074
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0014772 | S3002 | GENERAL DYNAMICS EUROPEAN,LAND-SYSTEMS-MOWAG GMBH |
| 0400149 | 32MY9 | MILLER INDUSTRIES TOWING EQUIPMENT INC. |
| 1129E01 ITEM 186 | 90099 | NORTHROP GRUMMAN SYSTEMS CORPORATION DBA NORTHROP GRUMMAN MARINE SYSTEMS |
| 145-543-94118 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 179892 | 24617 | GENERAL MOTORS CORP |
| 179892 | 55380 | HATCH & KIRK, INC. DIV HATCH & KIRK INC |
| 179892 | 72915 | GENERAL MOTORS CORP ELECTRO-MOTIVE DIV |
| 180188 | 338X5 | NAVISTAR DEFENSE LLC |
| 1D41423-003 | 90099 | NORTHROP GRUMMAN SYSTEMS CORPORATION DBA NORTHROP GRUMMAN MARINE SYSTEMS |
| 404426 | 5X050 | CRYSTEEL MANUFACTURING, INC. DBA TBEI-CRYSTEEL |
| 5305000712074 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 5305PL0780993 | 9009H | INSPEKTORAT WSPARCIA SIL ZBROJNYCH |
| 8552A | 1ML14 | D.W. HERCULES, LLC DBA HERCULES ENGINE COMPONENTS |
| 8552A | 28265 | HERCULES ENGINE CO INC |
| B1821AH050C275N | 80204 | AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED |
| B1821BH050C275N | 80204 | AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED |
| D301293 FIND 4 | 3S894 | PEAK TECHNOLOGIES GROUP INC THE |
| ESP-B-2.121-PP | 338X5 | NAVISTAR DEFENSE LLC |
| MS90728-118 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
