NSN 5305-00-115-9526 MS1815458, MS18154-58, MS9072558

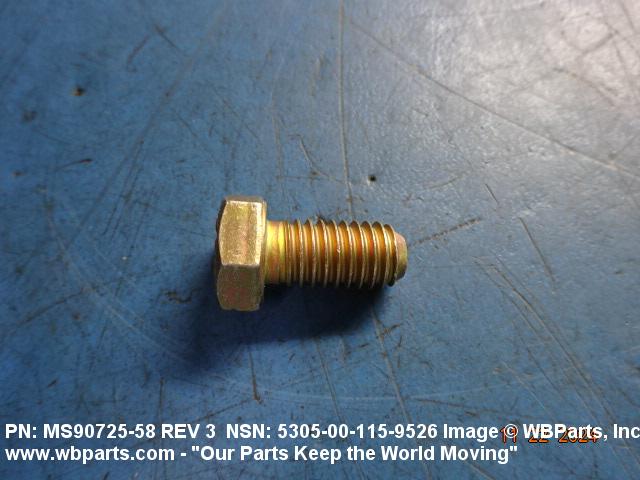

Product Details | HEXAGON HEAD CAP SCREW

5305-00-115-9526 An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. The head is not designed to be held or driven with an inserted driver or by the thumb and fingers. Excludes BOLT,MACHINE; BOLT,EXTERNALLY RELIEVED BODY; BOLT,INTERNAL WRENCHING; and SCREW,CAP,SOCKET HEAD.

Part Alternates: MS1815458, MS18154-58, MS9072558, MS90725-58, MS9072558G, MS90725-58G, SZ3-8INX16UNC2A X3-4INLG, SZ38INX16UNC2AX34INLG, B1821BH038C075D, E108165 FIND NO 260, E108165FINDNO260, EE45762, FFS85, WG107145, 5305PL0677195 , 85238800, 852388-00, S509, 0702077, 0826V039, 123478L10, 123478-L10, 16TX243, 180120, 20998, 35A2D109, 5305-00-115-9526, 00-115-9526, 5305002693209, 5305001159526 , 001159526

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	22 FEB 1973	00-115-9526	18257 ( SCREW, CAP, HEXAGON HEAD )

Drawings & Photos | NSN 5305-00-115-9526

Part Number	Request Date	QTY	Origin
MS1815458	2025-11-308	432	Israel
5305-00-115-9526	2024-10-288	33	Israel
5305-00-115-9526	2024-10-282	33	Israel
5305001159526	2020-10-295	8	US
5305-00-115-9526	2019-12-346	4	US
5305-00-115-9526	2019-12-346	4	MANUAL
MS18154-58	2019-12-346	4	US
5305-00-115-9526	2018-09-249	1750	DIBBS
5305-00-115-9526	2018-08-241	1750	DIBBS
5305-00-115-9526	2018-02-44	1112	DIBBS
5305-00-115-9526	2017-11-333	1956	DIBBS
5305-00-115-9526	2016-08-223	394	DIBBS
5305-00-115-9526	2016-06-165	410	DIBBS
FFS85	2013-01-11	473	US
S509	2012-11-310	6
FFS85	2011-10-280	95	United States
FFS85	2011-09-265	14	US
MS18154-58	2011-06-155	10	PK
MS18154-58	2011-06-155	10	PK
FFS85	2010-03-84	100	US
5305-00-115-9526	2010-03-68	3816	DIBBS
FFS85	2010-02-43	10	United States
5305-00-115-9526	2009-11-307	904	DIBBS
5305-00-115-9526	2009-10-293	560	DIBBS
FFS85	2009-09-272	50	US
5305-00-115-9526	2009-07-187	560	DIBBS
5305-00-115-9526	2009-05-135	100	US
MS9072558	2008-12-338	10	Belgium
5305-00-115-9526	2008-06-161	3348	US
5305-00-115-9526	2007-05-150	500	United States
B1821BH038C075D	2006-08-241	100	United States

Cross Reference | NSN 5305-00-115-9526

Part Number	Cage Code	Manufacturer
0702077	S3002	GENERAL DYNAMICS EUROPEAN,LAND-SYSTEMS-MOWAG GMBH
0826V039	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
123478-L10	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
16TX243	45152	OSHKOSH CORPORATION
16TX243	75Q65	OSHKOSH DEFENSE, LLC
180120	11862	GENERAL MOTORS CORP CHEVROLET MOTOR DIV
20998	03476	TEREX REEDRILL DBA REEDRILL TEXOMA DIV TEREX MINING
35A2D109	33968	CLARK EQUIPMENT COMPANY DBA DOOSAN INFRACORE PORTABLE POWER
5305001159526	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5305002693209	SCY13	E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES
5305PL0677195	9009H	INSPEKTORAT WSPARCIA SIL ZBROJNYCH
852388-00	32345	DEFENSE REDUCTION AGENCY
B1821BH038C075D	80204	AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED
E108165 FIND NO 260	3X894	CONTROL FLOW, INC. DBA WESTECH HEAVY MACHINERY DIV
EE45762	45152	OSHKOSH CORPORATION
EE45762	75Q65	OSHKOSH DEFENSE, LLC
FFS85	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
MS18154-58	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS90725-58	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS90725-58G	0198B	GESTION DE MATERIALES Y PROYECTOS S
S509	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
SZ3-8INX16UNC2A X3-4INLG	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
WG107145	3X894	CONTROL FLOW, INC. DBA WESTECH HEAVY MACHINERY DIV
