NSN 5305-00-144-3807 AN526832R6, AN526-832R6, FFS92ANDTYPE3ANDSTYLE7C
Product Details | MACHINE SCREW
5305-00-144-3807 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: AN526832R6, AN526-832R6, FFS92ANDTYPE3ANDSTYLE7C, Z00.N5123300218, Z00N5123300218, 2018835, 415 448, 415448, 5305-00-144-3807, 00-144-3807, 5305001443807, 001443807
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-144-3807 | 06657 ( SCREW, MACHINE ) |

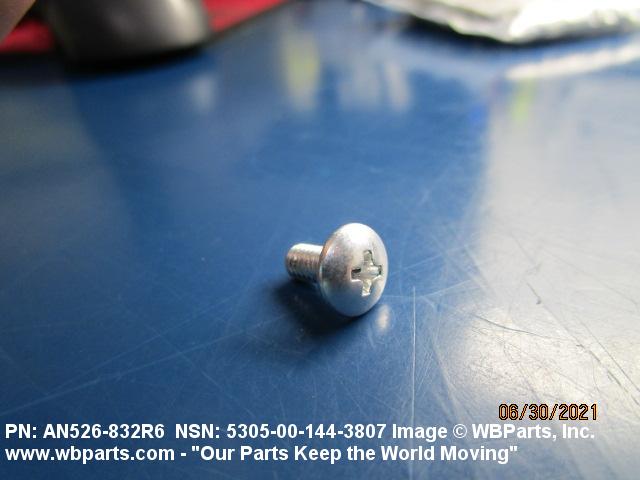

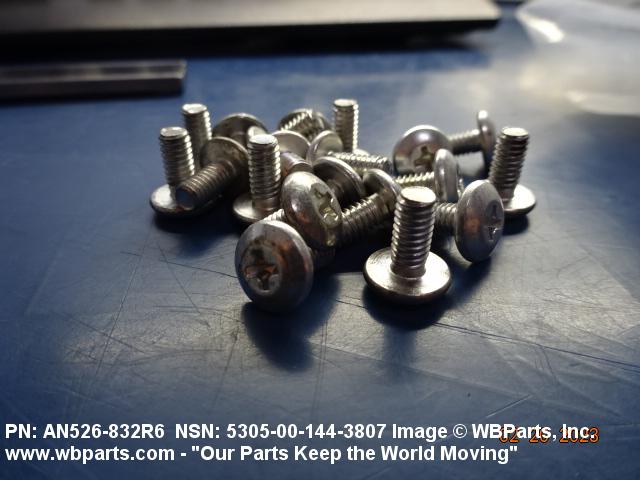

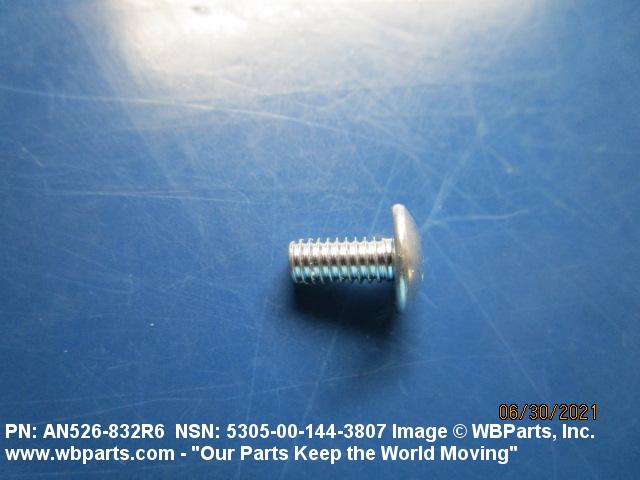

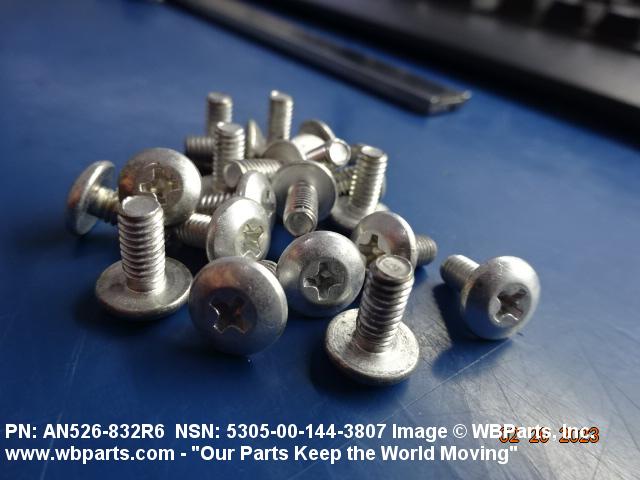

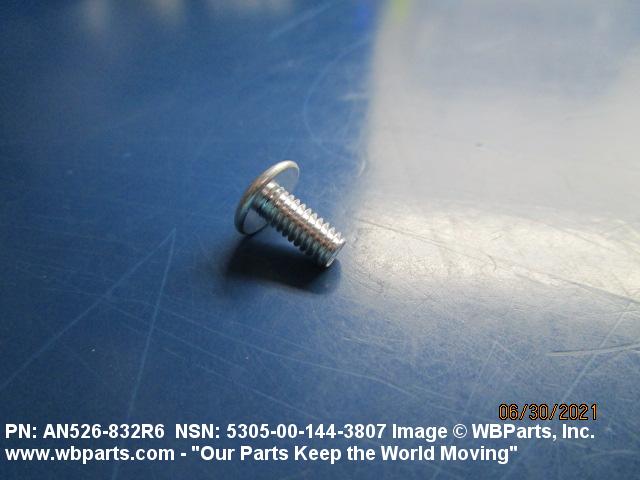

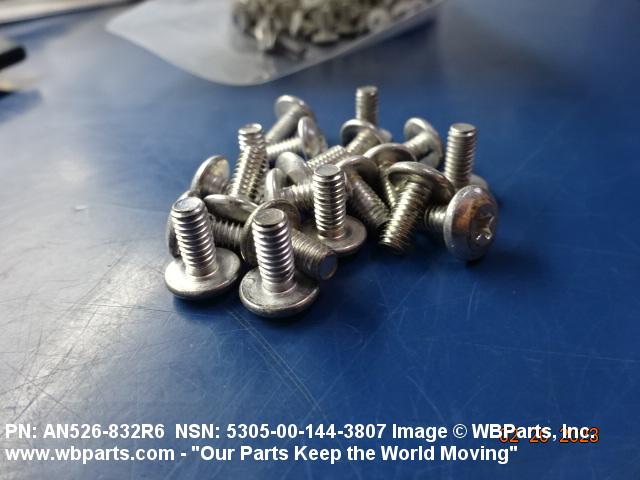

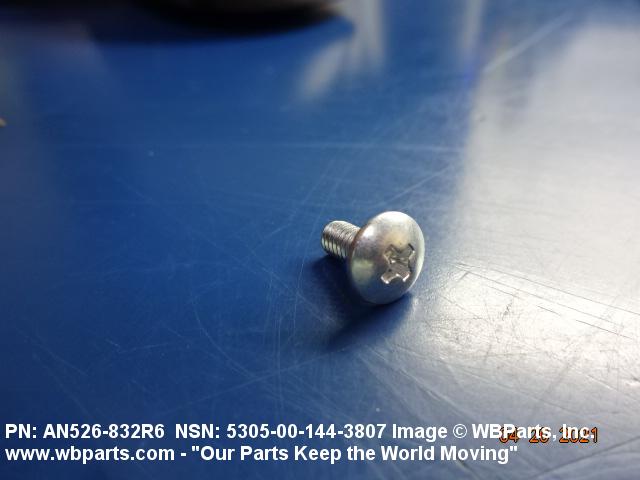

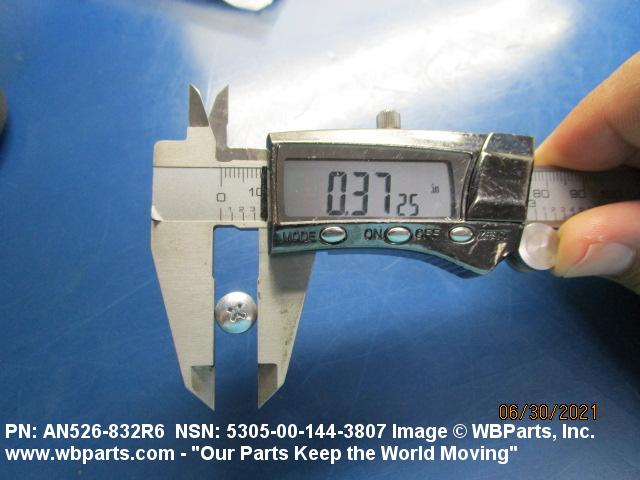

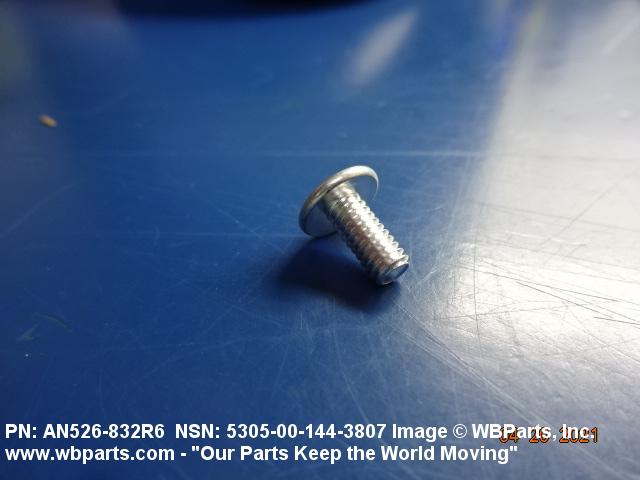

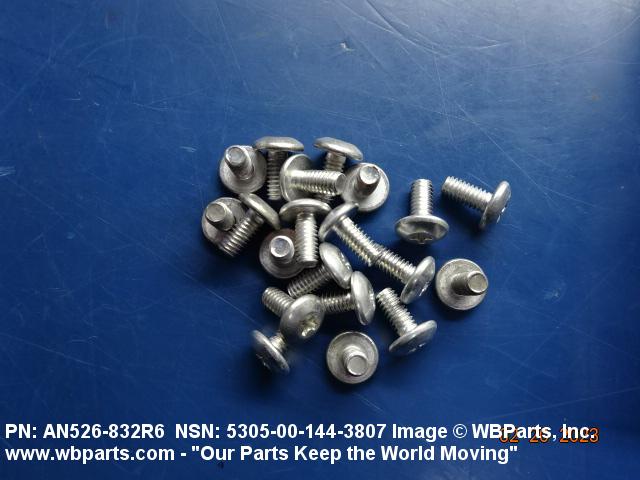

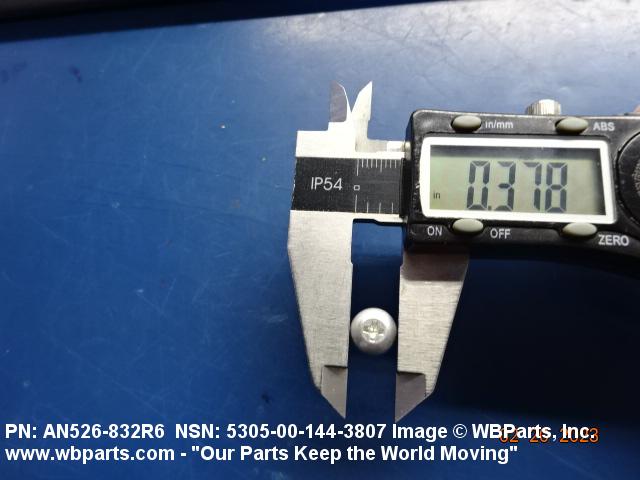

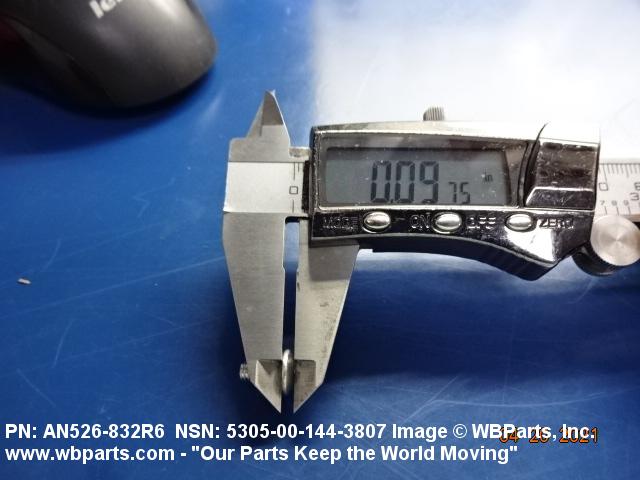

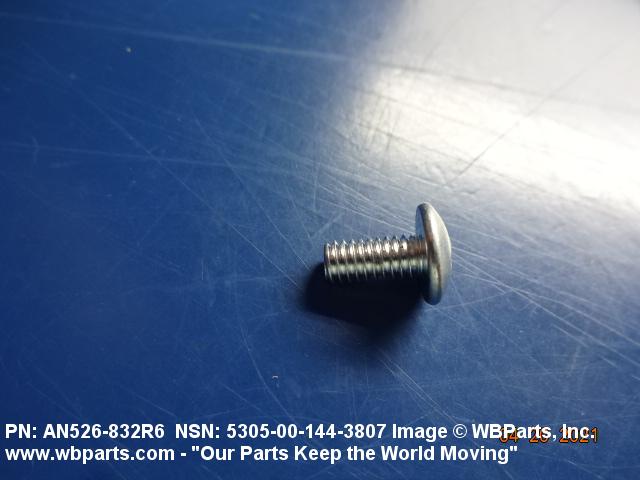

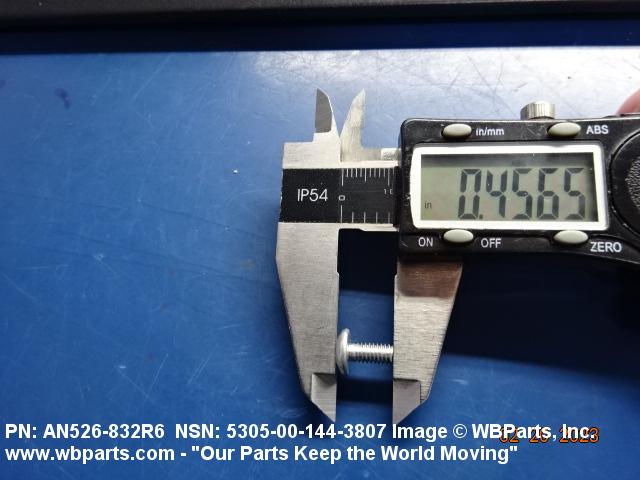

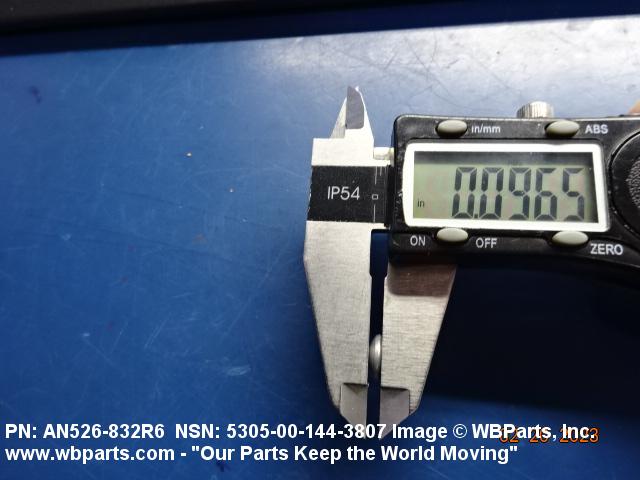

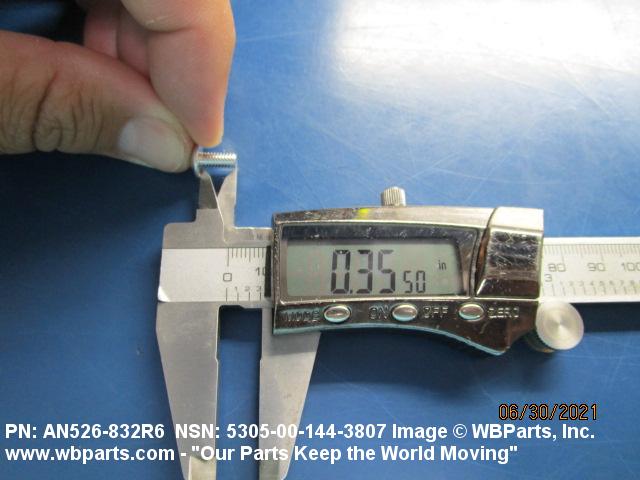

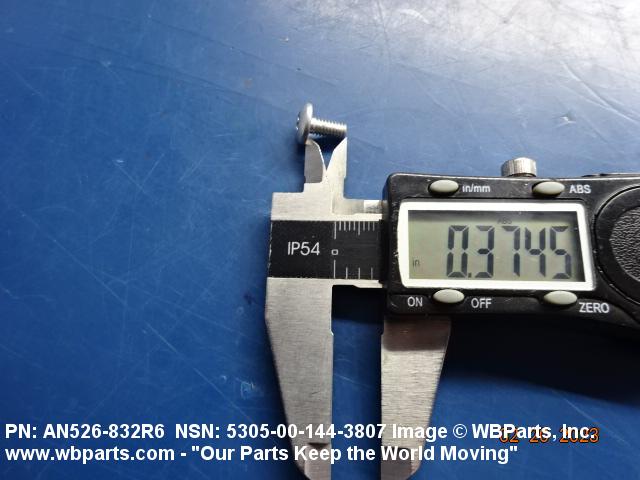

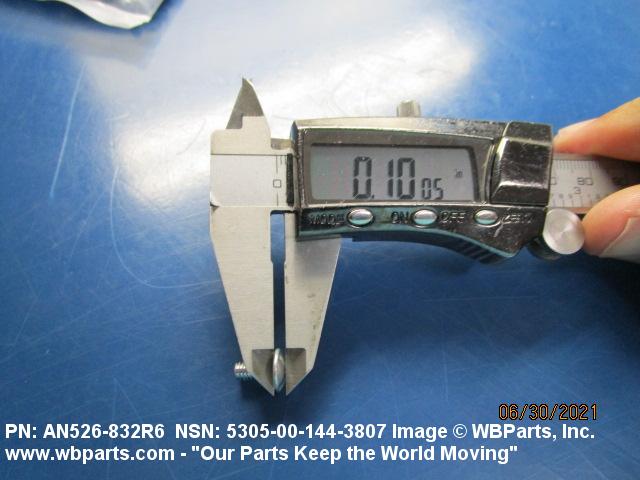

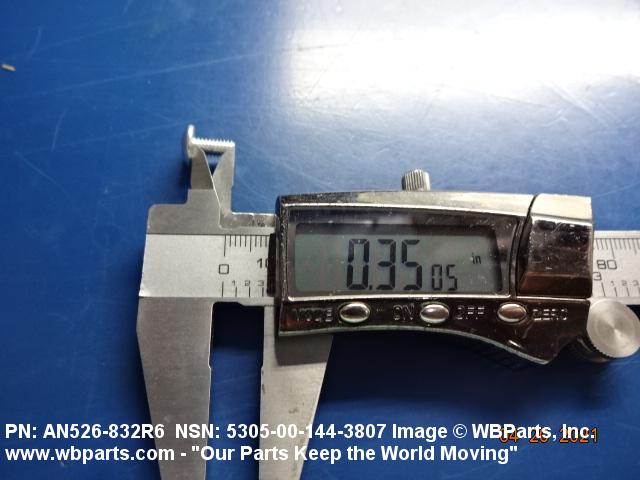

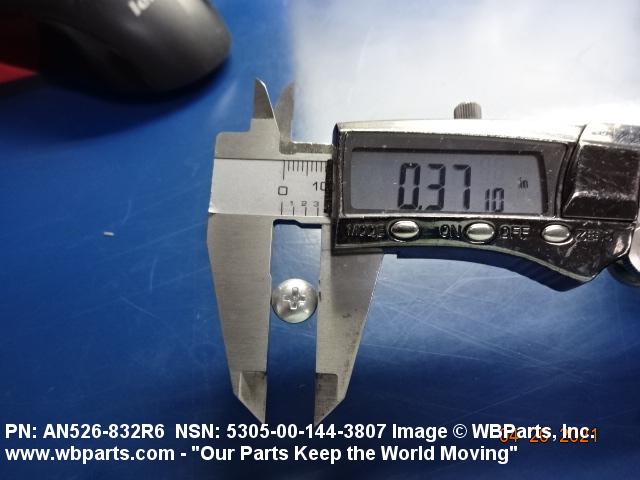

Drawings & Photos | NSN 5305-00-144-3807
Demand History | NSN 5305-00-144-3807
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN526832R6 | 2025-10-304 | 400 | United States |
| 5305-00-144-3807 | 2025-06-165 | 125 | AE |
| AN526832R6 | 2025-01-08 | 1000 | United States |
| AN526832R6 | 2024-08-222 | 600 | United States |
| AN526832R6 | 2024-04-110 | 1000 | United States |
| AN526832R6 | 2024-04-110 | 1000 | United States |
| AN526832R6 | 2023-09-272 | 500 | United States |
| AN526832R6 | 2022-08-224 | 2 | US |
| AN526832R6 | 2016-10-302 | 400 | United States |
| AN526-832R6 | 2015-05-138 | 9 | United States |
| AN526-832R6 | 2015-05-138 | 9 | United States |
| AN526832R6 | 2009-07-210 | 30 | US |
| AN526832R6 | 2009-05-138 | 58 | China |
Cross Reference | NSN 5305-00-144-3807
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2018835 | 001JK | EMBRAER S/A |
| 2018835 | FB459 | EMBRAER AVIATION INTERNATIONAL |
| 2018835 | S4956 | EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA |
| 415 448 | 77294 | PIPER AIRCRAFT INC. |
| AN526-832R6 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| FFS92ANDTYPE3ANDSTYLE7C | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| Z00.N5123300218 | F0086 | SOCATA |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-144-3807
Technical Data | NSN 5305-00-144-3807
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.164 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.344 INCHES MINIMUM AND 0.375 INCHES MAXIMUM |
| FASTENER LENGTH | 0.344 INCHES MINIMUM AND 0.375 INCHES MAXIMUM |
| SCREW MATERIAL | STEEL |
| SCREW SURFACE TREATMENT | CADMIUM |
| MINIMUM TENSILE STRENGTH | 55000 POUNDS PER SQUARE INCH |
| HEAD STYLE | A21 BUTTON |
| HEAD DIAMETER | 0.364 INCHES MINIMUM AND 0.384 INCHES MAXIMUM |
| HEAD HEIGHT | 0.102 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | B1 CROSS RECESS TYPE 1 |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN526-832R6 |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FFS92ANDTYPE3ANDSTYLE7C |
Restrictions/Controls & Freight Information | NSN 5305-00-144-3807
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | U | 50 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
