NSN 5305-00-144-3915 AN526632R8, AN526-632R8, FFS92ANDTYPE3ANDSTYLE7C
Product Details | MACHINE SCREW
5305-00-144-3915 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: AN526632R8, AN526-632R8, FFS92ANDTYPE3ANDSTYLE7C, 0.13832UNC2AX0.500LGTY3STY7C, 013832UNC2AX0500LGTY3STY7C, 2018863, 415 149, 415149, 4177400020, 4177400-020, 515739, 5305-00-144-3915, 00-144-3915, 5305001443915, 001443915
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-144-3915 | 06657 ( SCREW, MACHINE ) |

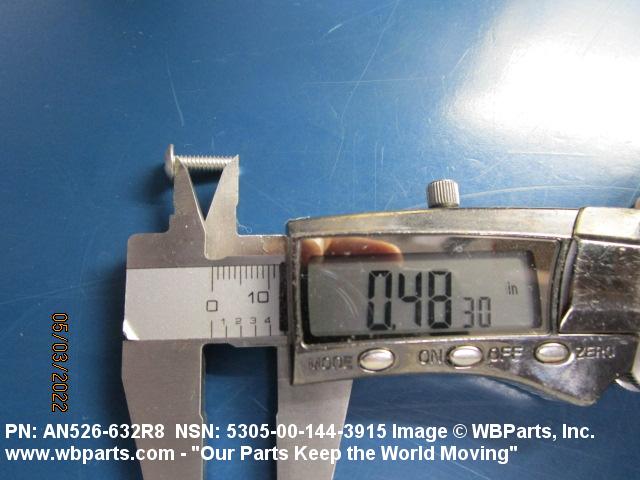

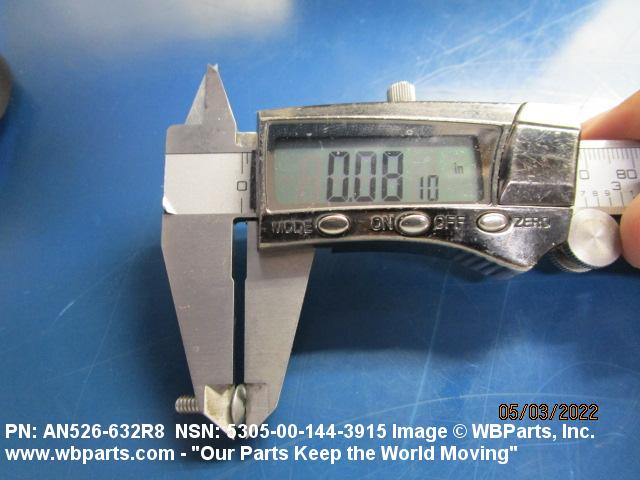

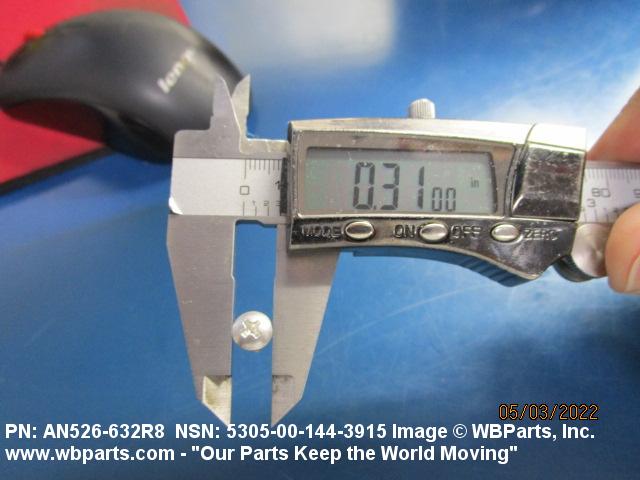

Drawings & Photos | NSN 5305-00-144-3915
Demand History | NSN 5305-00-144-3915
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN526632R8 | 2009-05-138 | 4500 | China |
Cross Reference | NSN 5305-00-144-3915
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0.13832UNC2AX0.500LGTY3STY7C | 80204 | AMERICAN NATIONAL STANDARDS INSTITUTE, INCORPORATED |
| 2018863 | 001JK | EMBRAER S/A |
| 2018863 | FB459 | EMBRAER AVIATION INTERNATIONAL |
| 2018863 | S4956 | EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA |
| 415 149 | 77294 | PIPER AIRCRAFT INC. |
| 4177400-020 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 4177400-020 | 82577 | RAYTHEON COMPANY DBA RAYTHEON |
| 515739 | 77294 | PIPER AIRCRAFT INC. |
| AN526-632R8 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| FFS92ANDTYPE3ANDSTYLE7C | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-144-3915
Technical Data | NSN 5305-00-144-3915
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.138 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.438 INCHES MINIMUM AND 0.500 INCHES MAXIMUM |
| FASTENER LENGTH | 0.500 INCHES NOMINAL |
| SCREW MATERIAL | STEEL OR STEEL COMP 1010 |
| SCREW MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-630 FED SPEC 2ND MATERIAL RESPONSE OR QQ-S-631 FED SPEC 2ND MATERIAL RESPONSE OR QQ-S-634 FED SPEC 2ND MATERIAL RESPONSE |
| SCREW SURFACE TREATMENT | CADMIUM |
| SCREW SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 1,CL 3 FED SPEC SINGLE TREATMENT RESPONSE |
| MINIMUM TENSILE STRENGTH | 55000 POUNDS PER SQUARE INCH |
| HEAD STYLE | A21 BUTTON |
| HEAD DIAMETER | 0.303 INCHES MINIMUM AND 0.321 INCHES MAXIMUM |
| HEAD HEIGHT | 0.086 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | B1 CROSS RECESS TYPE 1 |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | FFS92ANDTYPE3ANDSTYLE7C |
Restrictions/Controls & Freight Information | NSN 5305-00-144-3915
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-00-144-3915
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 HD : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 HD : Each |
