NSN 5305-00-151-8699 509441G6, 00-151-8699, 001518699

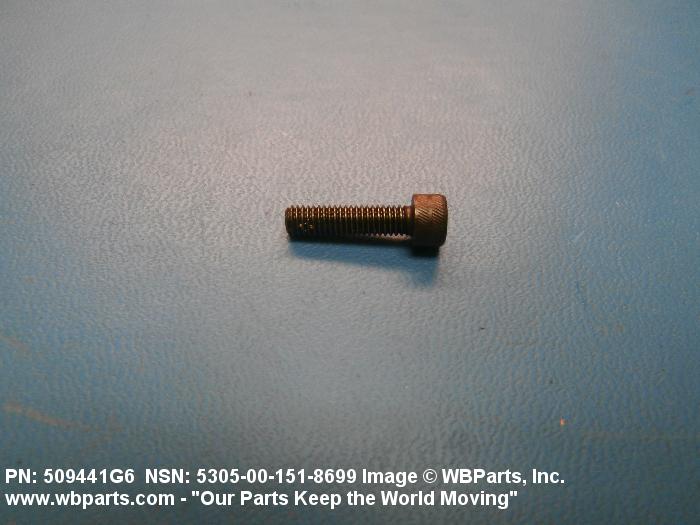

Product Details | SOCKET HEAD CAP SCREW
5305-00-151-8699 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.
Part Alternates: 509441G6, 5305-00-151-8699, 00-151-8699, 5305001518699, 001518699
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 NOV 1970 | 00-151-8699 | 16282 ( SCREW, CAP, SOCKET HEAD ) |

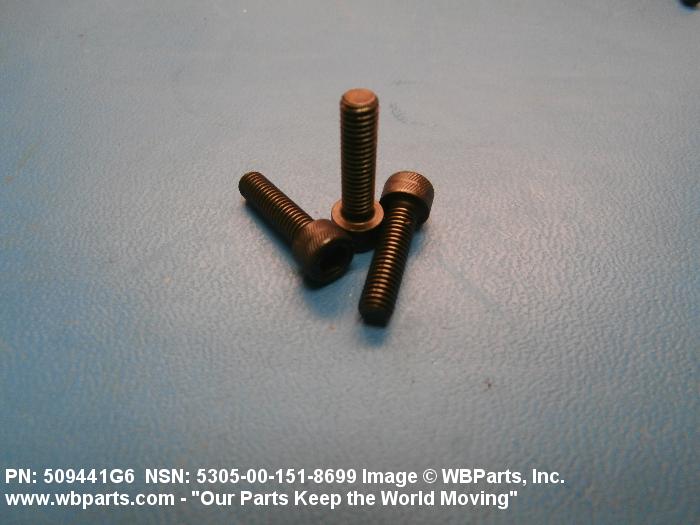

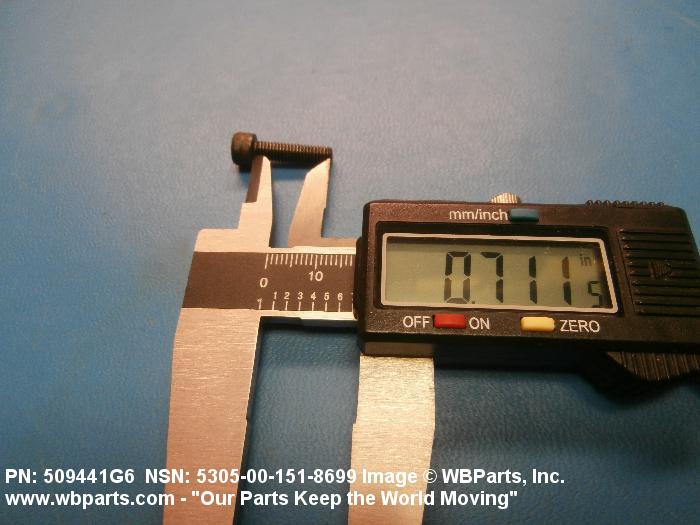

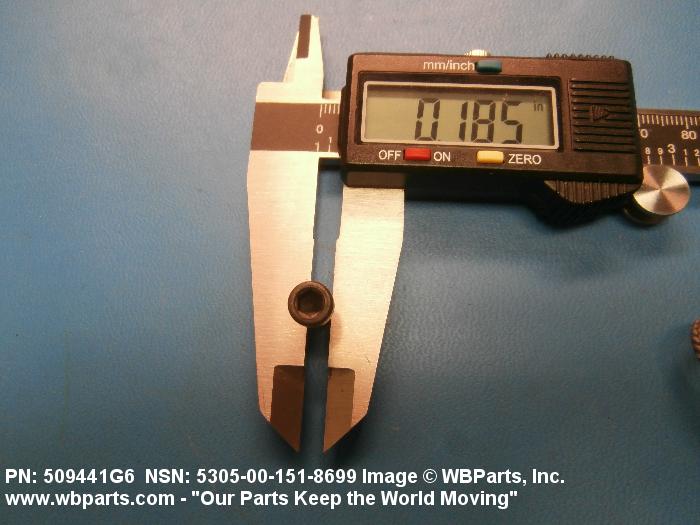

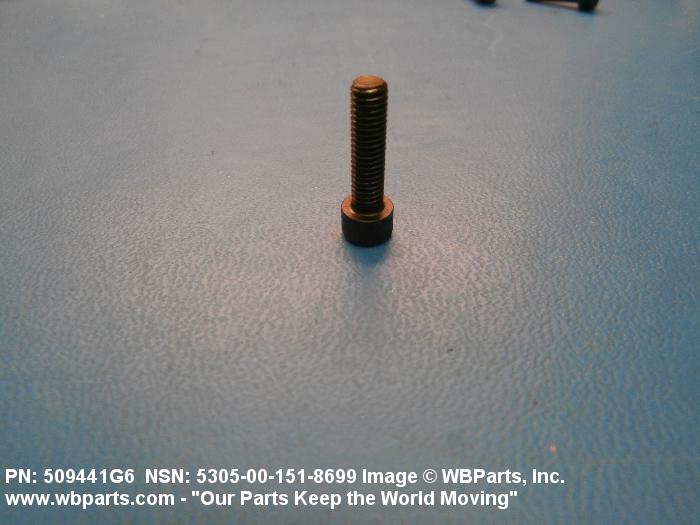

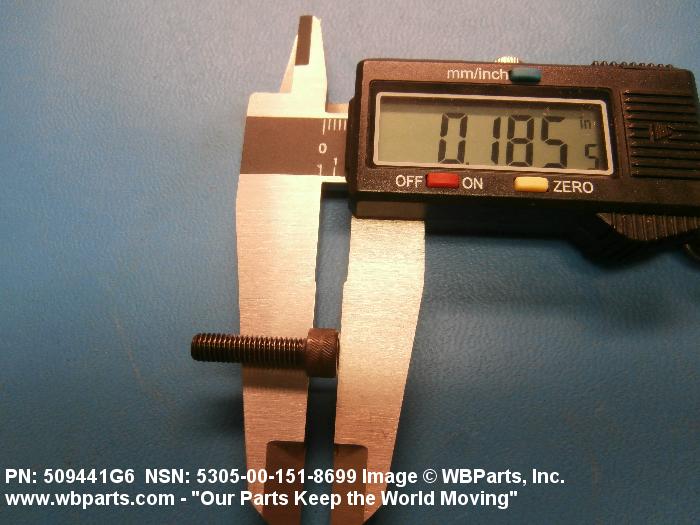

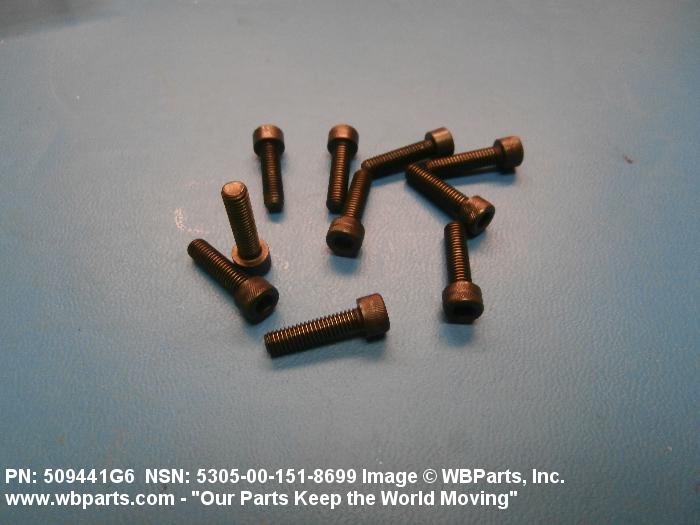

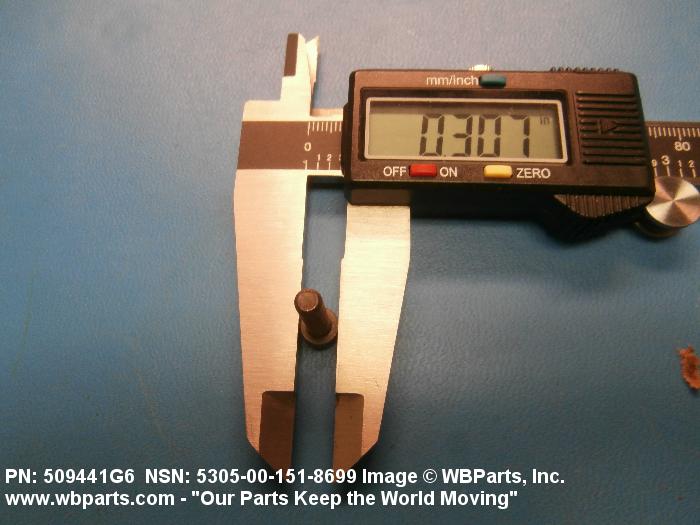

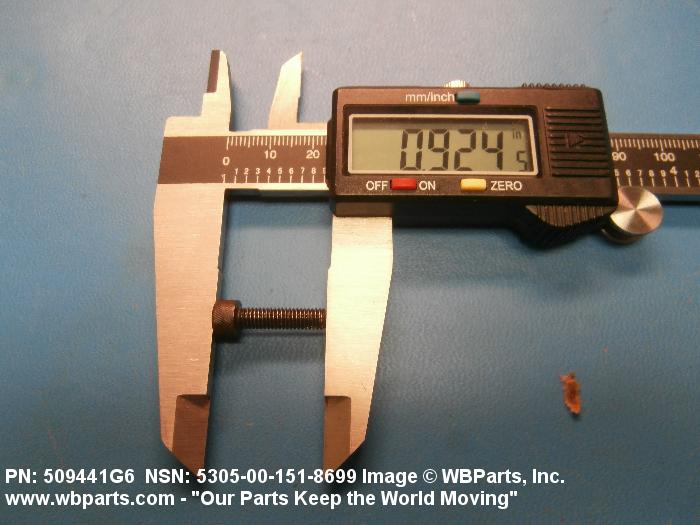

Drawings & Photos | NSN 5305-00-151-8699
Demand History | NSN 5305-00-151-8699
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 509441G6 | 2025-08-231 | 154 | US |
| 5305-00-151-8699 | 2025-08-224 | 154 | DIBBS |
| 5305-00-151-8699 | 2021-01-24 | 317 | DIBBS |
| 5305-00-151-8699 | 2019-03-73 | 20 | United States |
| 5305-00-151-8699 | 2018-08-214 | 339 | DIBBS |
| 5305-00-151-8699 | 2018-07-201 | 304 | DIBBS |
| 5305-00-151-8699 | 2018-07-193 | 304 | DIBBS |
| 5305-00-151-8699 | 2017-12-341 | 304 | DIBBS |
| 5305-00-151-8699 | 2014-12-354 | 10 | United States |
| 5305-00-151-8699 | 2014-06-155 | 290 | DIBBS |
| 5305-00-151-8699 | 2013-07-199 | 723 | DIBBS |
