NSN 5305-00-151-9316 MS21207C68, MS21207C6-8, FFS107

Product Details | TAPPING SCREW

5305-00-151-9316 A hardened externally threaded fastener whose thread extends to the bearing surface of the head. The thread may be fluted or otherwise designed to cut or form its own mating thread. Excludes SCREW, ASSEMBLED WASHER.

Part Alternates: MS21207C68, MS21207C6-8, FFS107, 419 806, 419806, 5305-00-151-9316, 00-151-9316, 5305001519316, 001519316

Hardware and Abrasives | Screws

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	19 JAN 1973	00-151-9316	41756 ( SCREW, TAPPING )

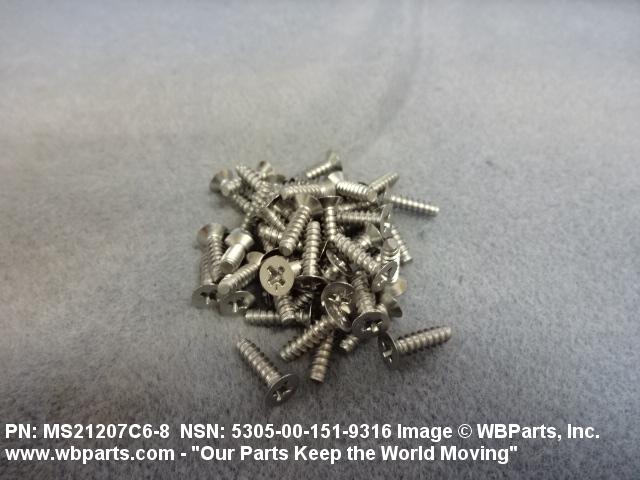

Drawings & Photos | NSN 5305-00-151-9316

Part Number	Request Date	QTY	Origin
5305-00-151-9316	2019-10-303	2	DIBBS
5305-00-151-9316	2018-04-112	24	DIBBS
5305-00-151-9316	2018-02-50	2	DIBBS
5305-00-151-9316	2018-02-50	8	DIBBS
5305-00-151-9316	2017-11-334	6	DIBBS
5305-00-151-9316	2012-12-361	70	DIBBS
5305-00-151-9316	2012-10-293	60	DIBBS
FFS107	2011-02-49	10	US
FFS107	2011-02-49	17	US
FFS107	2009-03-62	1800	US
FFS107	2007-12-347	600	United States

Cross Reference | NSN 5305-00-151-9316

Part Number	Cage Code	Manufacturer
419 806	77294	PIPER AIRCRAFT INC.
FFS107	81348	FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
MS21207C6-8	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS21207C6-8	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5305-00-151-9316

Compare

Related Products | NSN 5305-00-151-9316

5305-00-151-9318, 5305-00-151-9319, 5305-00-151-9321, 5305-00-151-9326, 5305-00-151-9336

Technical Data | NSN 5305-00-151-9316

Characteristic	Specifications
NONMACHINE THREAD STYLE	A12 DOG TYPE

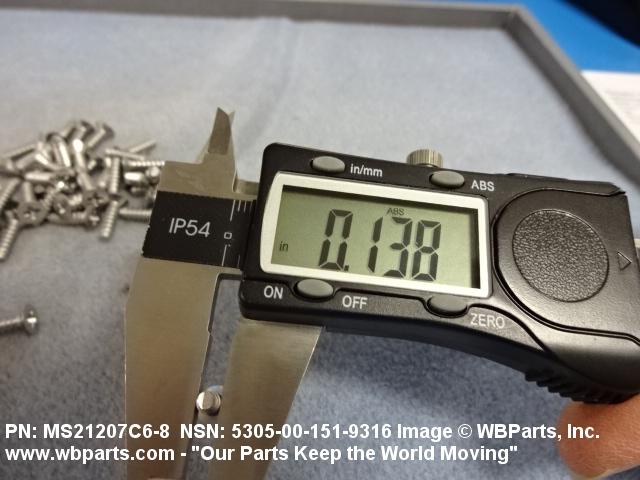

NONMACHINE NOMINAL THREAD DIAMETER	0.138 INCHES

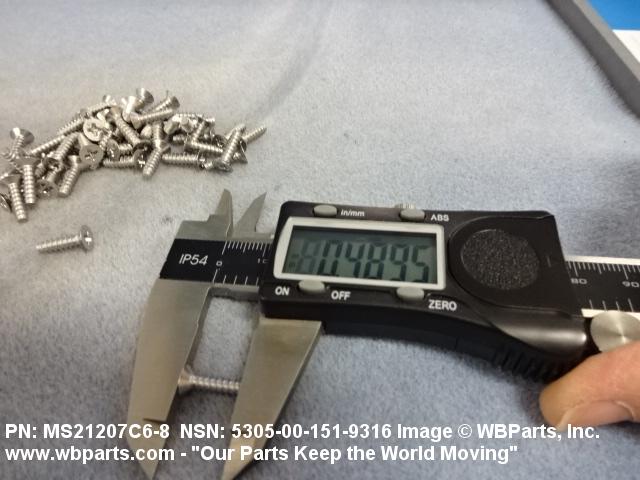

FASTENER LENGTH	0.469 INCHES MINIMUM AND 0.500 INCHES MAXIMUM
MATERIAL	STEEL COMP 410 OVERALL
SURFACE TREATMENT	PASSIVATE OVERALL
HEAD STYLE	C50 FLAT COUNTERSUNK

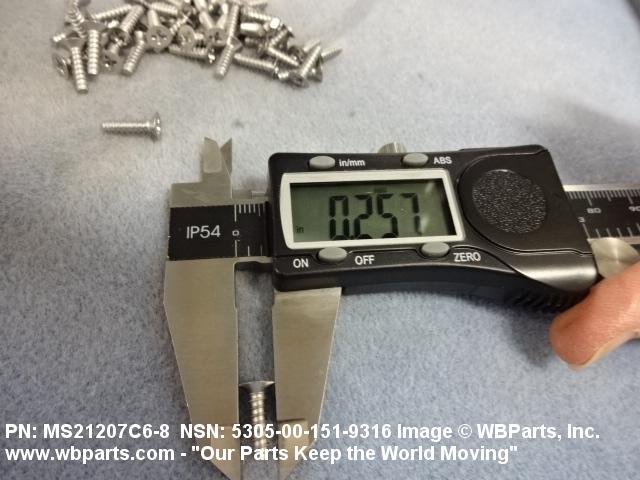

HEAD DIAMETER	0.249 INCHES MINIMUM AND 0.279 INCHES MAXIMUM
COUNTERSINK ANGLE	99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM
INTERNAL DRIVE STYLE	D1 CROSS RECESS TYPE 1
NONDEFINITIVE SPEC/STD DATA	B TYPE
MANUFACTURERS CODE	81348
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	FFS107
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS21207C6-8

Restrictions/Controls & Freight Information | NSN 5305-00-151-9316

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	093486	BOLTS,NUTS OR SCREWS, NOI (SUB 3)
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5305-00-151-9316

Air Force

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
