NSN 5305-00-167-2300 AN5306R6, AN530-6R6 , PK84XA66
Product Details | TAPPING SCREW
5305-00-167-2300 A hardened externally threaded fastener whose thread extends to the bearing surface of the head. The thread may be fluted or otherwise designed to cut or form its own mating thread. Excludes SCREW, ASSEMBLED WASHER.
Part Alternates: AN5306R6, AN530-6R6 , PK84XA66, PK84XA6-6, 1114190Z66, 1114190Z6-6, 2019001, 74XZ66, 74XZ6-6, 5305-00-167-2300, 00-167-2300, 5305001672300, 001672300
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-167-2300 | 41756 ( SCREW, TAPPING ) |

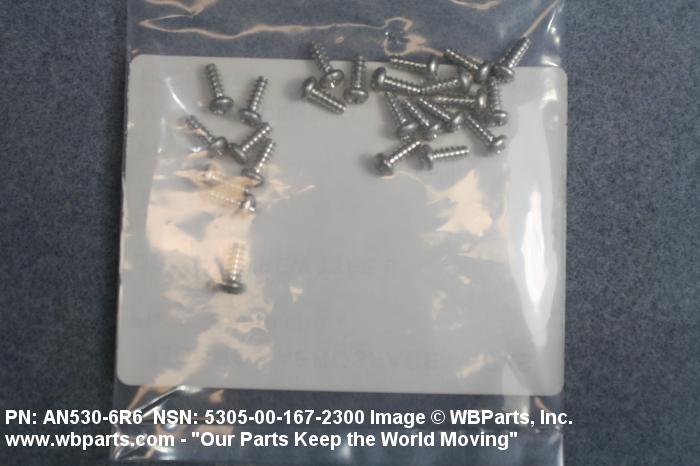

Drawings & Photos | NSN 5305-00-167-2300
Demand History | NSN 5305-00-167-2300
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-00-167-2300 | 2023-05-135 | 4 | United States |
| AN530-6R6 | 2015-03-76 | 500 | TH |
| AN5306R6 | 2011-12-355 | 15 | Canada |
| AN5306R6 | 2011-04-117 | 30 | Canada |
| 5305-00-167-2300 | 2009-03-76 | 1500 | India |
| 5305-00-167-2300 | 2009-03-76 | 2800 | India |
Cross Reference | NSN 5305-00-167-2300
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1114190Z6-6 | 18355 | BOEING COMPANY, THE DBA BOEING |
| 1114190Z6-6 | 88277 | BOEING COMPANY, THE DBA BOEING |
| 2019001 | 001JK | EMBRAER S/A |
| 2019001 | S4956 | EMBRAER EMPRESA BRASILEIRA DE AERONAUTICA SA |
| 74XZ6-6 | 45722 | USM CORP SUB OF EMHART INDUSTRIES INC |
| AN530-6R6 | 0JVX8 | TEXAS STARWARES INC. DBA STARWARES |
| AN530-6R6 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| PK84XA6-6 | 45722 | USM CORP SUB OF EMHART INDUSTRIES INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5305-00-167-2300
Technical Data | NSN 5305-00-167-2300
| Characteristic | Specifications |
|---|---|
| NONMACHINE THREAD STYLE | A12 DOG TYPE |
| NONMACHINE NOMINAL THREAD DIAMETER | 0.138 INCHES |
| FASTENER LENGTH | 0.375 INCHES NOMINAL |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OR ZINC OVERALL |
| HEAD STYLE | C37 ROUND |
| HEAD DIAMETER | 0.240 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| HEAD HEIGHT | 0.091 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
| INTERNAL DRIVE STYLE | D1 CROSS RECESS TYPE 1 |
| FEATURES PROVIDED | CASEHARDENED |
| MANUFACTURERS CODE | 88044 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | AN530-6R6 |
Restrictions/Controls & Freight Information | NSN 5305-00-167-2300
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
